HP Mini 1000 Keyboard Replacement

Geschrieben von: Walter Galan
  • Kommentare: 1
HP Mini 1000 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Replace the keyboard in your HP Mini 1000.

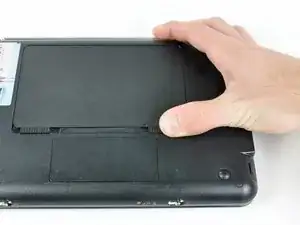

  1. NlpLgN4cG3NHRYVi
    NlpLgN4cG3NHRYVi

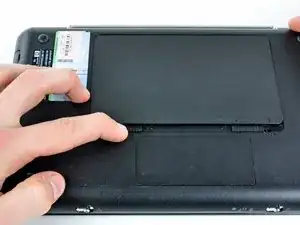

    MQhnkA31HbymZ4wU

    • With the case closed, place the Mini 1000 top-side down on a flat surface.

    • Push both of the battery release latches toward each other.

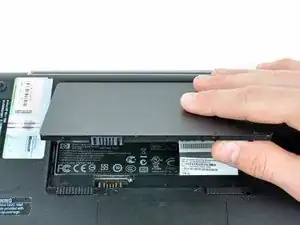

  2. NZ5Q6JEwcTdPOkRi

    • Lift the battery out of the Mini 1000 from the edge closest to the release latches.

    Need a battery and a keyboard.

    valfin.teach -

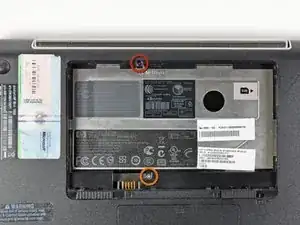

  3. Nt4YqS6mouYOFyiU

    • Remove the following two screws:

    • One 6 mm Phillips screw

    • One 4 mm Phillips screw

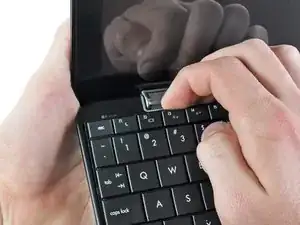

  4. FIsdumu2cDZMnRp3
    FIsdumu2cDZMnRp3
    YFsIfEWJjBrW1eas

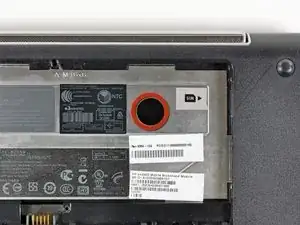

    QxjrAtt2lQbxylQI

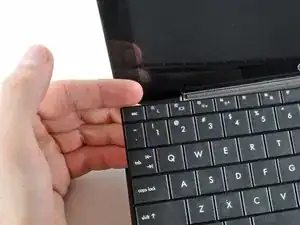

    • To facilitate the removal of the keyboard, it is recommended to push the keyboard outwards with one hand through the opening (highlighted in the third picture) located on the backside of the Mini 1000.

    • While pushing through the opening with one hand, grasp the left upper edge with the other hand and slightly pull the keyboard towards you.

    • Once an opening has been established, grasp the keyboard and slowly lift it upwards along the upper perimeter of the top edge.

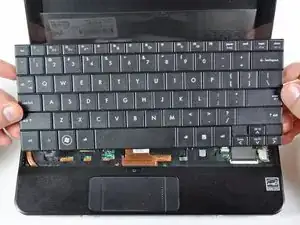

  5. fCAQVJJdNAZrHVjH

    • Lift the keyboard out of the upper case, minding the cable that is still connecting it to the motherboard.

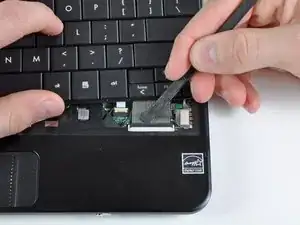

  6. woVOIZ2EPPHDuGQm

    • Use your fingernail or the flat end of a spudger to flip up the retaining flap on the keyboard cable ZIF socket.

    • Be sure you are prying up on the retaining flap, not the socket itself.

    • Pull the cable out of its socket and remove the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
