HP Mini 1000 RAM Replacement

Geschrieben von: Walter Galan
  • Kommentare: 1
HP Mini 1000 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

Use this guide to replace or upgrade the single PC2-4200 RAM stick on your Mini 1000.

  1. NlpLgN4cG3NHRYVi
    NlpLgN4cG3NHRYVi
    MQhnkA31HbymZ4wU

    • With the case closed, place the Mini 1000 top-side down on a flat surface.

    • Push both of the battery release latches toward each other.

  2. NZ5Q6JEwcTdPOkRi

    • Lift the battery out of the Mini 1000 from the edge closest to the release latches.

    Need a battery and a keyboard.

    valfin.teach -

  3. wsLvXYFAcJ3esbnB
    wsLvXYFAcJ3esbnB
    QCHwtFkhcTComsut

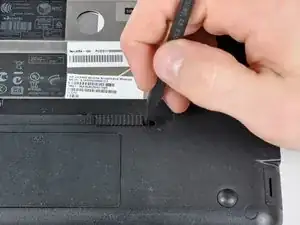

    • Before proceeding, slide the right battery release latch to the unlocked position nearest the center of the computer.

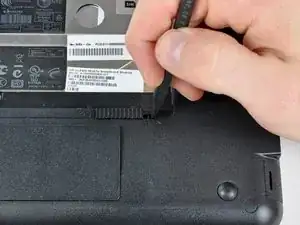

    • Use the tip of a spudger to slide the RAM compartment cover release latch away from the center of the computer.

    • At this point, the edge of the RAM compartment cover nearest the battery compartment should pop up from the lower case.

  4. UyVi3EervheQPBUE

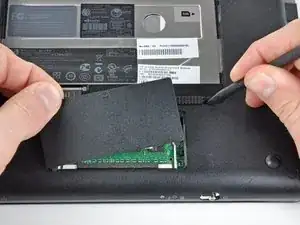

    • Remove the RAM compartment cover from the lower case.

  5. WyZLMmo2JoVCJUjN
    WyZLMmo2JoVCJUjN
    hOBhUf11QrkQeiwl

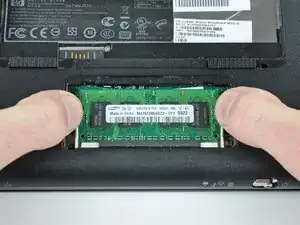

    • Use your fingers to simultaneously pull both RAM retaining arms away from the center of the RAM chip.

    • The RAM chip should pop up slightly from its socket.

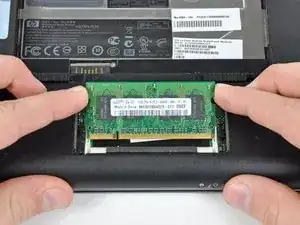

    • Pull the RAM chip out of its socket and remove it from the Mini 1000.

Abschluss

To reassemble your device, follow these instructions in reverse order.
