This guide is used as a prereq to other guides.
Werkzeuge
-
-

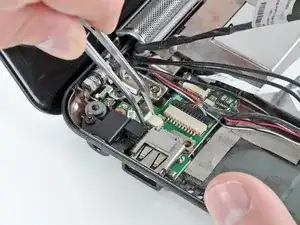

Use a pair of tweezers to pull the internal display switch cable straight away from its socket on the USB and power board.
-
-
-
Peel and de-route the SIM card ribbon cable from its channel on top of the underside of the battery compartment.
-
-
-

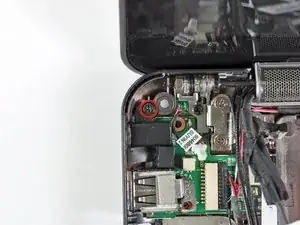

Remove the single 3 mm Phillips screw that secures the USB and power board as well as the DC jack bracket to the lower case.
-
-
-

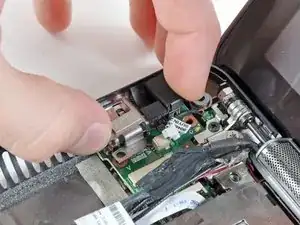

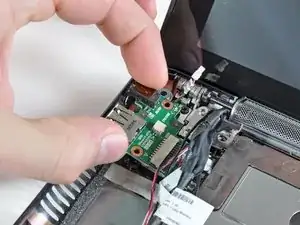

Grasp the USB and power board from its left edge, nearest the ports side.
-

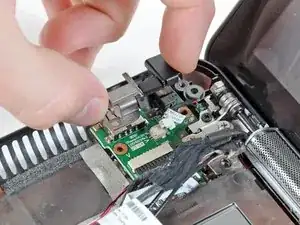

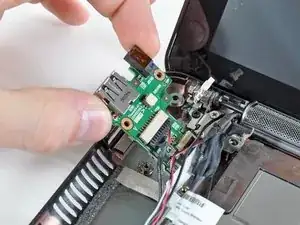

Remove the USB and power board straight away from its recess in the lower case, minding any cables that may get tangled.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
