HP Mini 1000 WWAN Board Replacement

Geschrieben von: Walter Galan
  • Kommentare: 0
HP Mini 1000 WWAN Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

This guide is used as a prereq to other guides. (1st for motherboard)

  1. YDb1tHP6tAKBnkTY

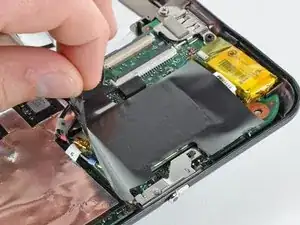

    • If present, carefully peel the piece of tape covering the WWAN board.

  2. VBytLN55FcOLGrch
    VBytLN55FcOLGrch
    bvDYAD6NGbB1fKEa

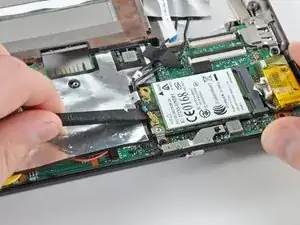

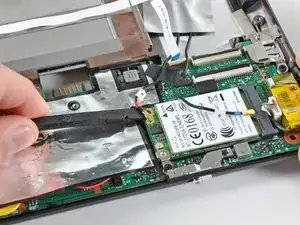

    • Pry the WWAN antenna connectors (2 total) up off the WWAN board.

    • During reassembly, remember to correctly connect the antenna cables to their respective terminals. The red labeled antenna is connected to the "MAIN" terminal and the blue labeled antenna is connected to the "AUX" terminal.

  3. WZQDoOPNQcAeiekc
    WZQDoOPNQcAeiekc
    GASKoqEcWqST2AqO
    nxRyTofSqYHhBKDo

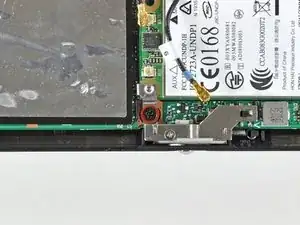

    • Remove the single 3 mm Phillips screw securing the WWAN metal bracket and WWAN board to the motherboard.

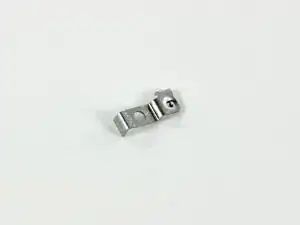

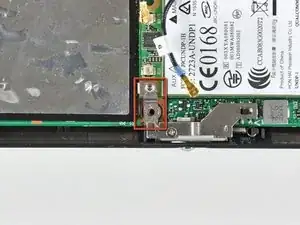

    • During reassembly, before securing the WWAN board to the upper case, be sure the metal bracket is correctly placed (as highlighted in the second picture).

    • Be cautious of the metal bracket's displacement. It can easily become lost during disassembly.

  4. kRFTCJwEiRCsPmVN
    kRFTCJwEiRCsPmVN
    b6Qw55xW5NDSnx3A

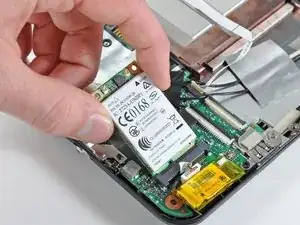

    • Upon removing the Phillips screw that secures the WWAN board to the motherboard, the WWAN board should pop up from its left side.

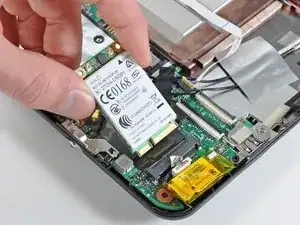

    • Grasp the WWAN board and pull it straight out of its socket on the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
