HP Mini 110-1046NR Memory Card Replacement

Power-off the netbook fully before attempting to remove the battery.

Flip your netbook upside down, and locate the sliding tabs near the battery.

Slide both tabs inward so that the battery visibly moves away from the case of the computer.

Release the tabs and pull the battery out.

Flip the netbook over so you are looking at the bottom, and locate the two screws that hold the memory card cover.

Next, take a Phillips PH1 screwdriver and unscrew the two screws.

If necessary, use the flat end of the spudger to assist in prying the cover away from the computer.

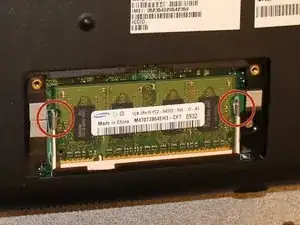

Carefully push the clips to the side, away from the memory card.

Note: The memory module is spring-loaded and will pop out when the clips are detatched.

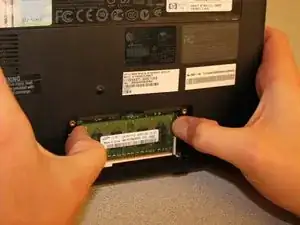

Slide the memory card straight out, holding it as shown to avoid getting skin oils on the electrical contacts.
