    • Power-off the netbook fully before attempting to remove the battery.

    • Flip your netbook upside down, and locate the sliding tabs near the battery.

    • Slide both tabs inward so that the battery visibly moves away from the case of the computer.

    • Release the tabs and pull the battery out.

  2. 4meoOfMoCkdZCJft
    4meoOfMoCkdZCJft
    B2kajtR4pFpuhSI5
    • With the screen closed, turn your netbook around so that the battery slot is facing you.

    • Remove the three 2.9mm screws in the battery slot.

    • This step can be made easier by using a magnetic screwdriver.

  3. HUZXbysOHfnknHut
    HUZXbysOHfnknHut
    i5de42UcPCdSrjDK
    hFnSDuj3NFdGorT3
    • Flip the netbook upright, and open the screen as far as it will go.

    • Pry up the keyboard from the middle of the top edge.

    • Insert the flat end of the spudger between middle of the the top edge of the keyboard and the plastic frame behind it.

    • Pry the keyboard up until it pops out or until you can grab it with your fingers, and then pull gently until it pops out on both sides.

    • Do not pull the keyboard out immediately - there is a potentially fragile ribbon cable that attaches to the motherboard behind the keyboard.

  4. nuFkCPAKsUHRiSyv
    nuFkCPAKsUHRiSyv
    2DCorUE3QiM3MMGq
    NjOkBHhtWnWK6VBr
    • Flip the keyboard over (toward you) by pivoting it about the lower edge, and lay it upside down on top of the touchpad area to reveal the ribbon cable.

    • Lightly pull up on the black tab on top of the keyboard ribbon cable until it hinges toward you and releases the ribbon cable end.

    • Pull the ribbon cable backward and out of the receptacle. This should not require any effort.

  5. xSbZjUWuyVDoIoEq
    xSbZjUWuyVDoIoEq
    4UsScY4IO5ehH3Dk
    E3TXsRCA3IqalIa2
    • Remove the three screws holding down the hard drive. Use a Phillips PH0 screwdriver for the two silver, 3.4mm screws on the right, and use a PH1 for the black, 10.3mm screw on the left.

    • It is not necessary to fully remove the 10.3mm screw, but if you do, be careful to not lose the spring.

  6. DMjM2SlFTd56LlIS
    DMjM2SlFTd56LlIS
    cIUmTssM6bdnWS2H
    ghM3gHEY1EE5ULVO
    • As shown on the top face of the hard drive itself, pull hard drive left using the black tab until the hard drive is unplugged and entirely released from its receptacle.

    • Lift the hard drive out of the laptop.

    • Place the hard drive in an anti-static bag to reduce the likelihood of damaging it with static electricity.

  7. dB2rtJKukWWQHm4N
    dB2rtJKukWWQHm4N
    ohiLHqZ2thYXUidN
    erU6tpALkfBDDkeO
    • Flip the netbook over so you are looking at the bottom, and locate the two screws that hold the memory card cover.

    • Next, take a Phillips PH1 screwdriver and unscrew the two screws.

    • These screws will not release from the cover once they are unscrewed.

    • If necessary, use the flat end of the spudger to assist in prying the cover away from the computer.

  8. PwHwtQWlKtxnalBG
    PwHwtQWlKtxnalBG
    AA5g2uPaEBbfxLIL
    • It is not necessary to remove the memory card for this step.

    • Remove the 4.9mm screw located to the right of the of the memory card using a PH1 screwdriver.

  9. Vt4vlJBArCuiswjQ
    Vt4vlJBArCuiswjQ
    br5TL5JsXiuB1NeZ
    AYhpIjmTCcloHmhc
    • Pry the four feet with the pick-end of the spudger. These are glued down, so this may require some force.

    • Remove the 6mm PH1 screws located under each foot.

  10. gH22qQYfmWDPvvIn
    gH22qQYfmWDPvvIn
    3ANQU6JOAVB3iYXT
    bZwUlqLpGvVcQDY5
    • Flip the netbook over and remove with a PH1 screwdriver the eight 5.9mm screws that secure the keyboard bezel in place.

    • Only remove the black screws with "M2.5x6" markings next to them. All others are unnecessary.

    • Taking the keyboard bezel off without removing the hard drive may be possible, but there is a risk of breaking several tabs on the keyboard bezel located between the hard drive and the frame of the computer.

    • Using the flat end of the spudger or pry stick, pry the keyboard bezel away from the base by wedging the tool between the base and keyboard bezel and run the tool along the side until the cover is fully released.

    • Don't pull the front of the keyboard up very far. There is a small, potentially fragile ribbon cable on the back of the touchpad that is still attached to the system board.

    • Carefully flip the keyboard bezel over (toward you) to reveal the touchpad ribbon cable.

  11. H6h5imoIwVkiPFRm
    H6h5imoIwVkiPFRm
    NaUTilhZSKOfJErJ
    HwDOlgCaDhehsqeO
    • Locate the black and white tab that connects the touchpad ribbon cable to the motherboard.

    • Using your fingernail or a pry stick, flip the white tab up to release the ribbon cable end.

    • Remove the touchpad ribbon cable from the receptacle on the system board by gently pulling the ribbon away from the clamp.

  12. Xe5aIgLWKFY4RTuA
    Xe5aIgLWKFY4RTuA
    u4PRwXKJ2dcOvYqk
    2N2TYAByPFrvNFUm

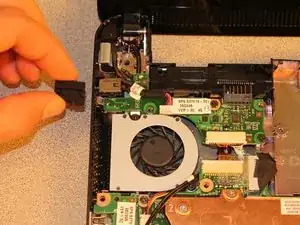

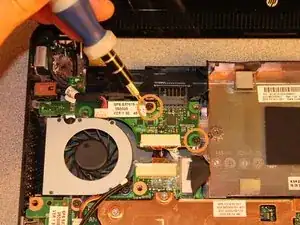

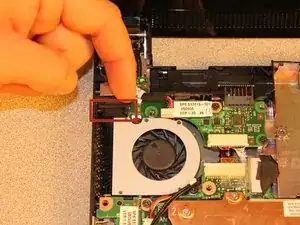

    • Remove the rubber capsule located on the upper left hand side above the fan.

    • Remove the two 3.8mm screws located on the power management board with a PH1 Philips head screw driver.

  13. 5ntyLeRa11O2BSLA
    5ntyLeRa11O2BSLA
    aKCtl1gXSbIEDHU3
    UEtcIcyCCUMfxeJS

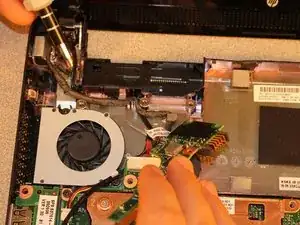

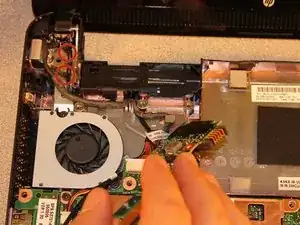

    • Pull the power management board out of the way to allow access to the hinge screws as shown.

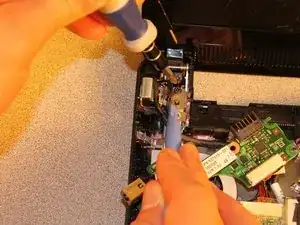

    • Remove the two 3.8mm screws that secure the left screen hinge using a PH1 screwdriver.

    • You may have to also hold a couple of wires out of the way to access the screws.

  14. VNJdMCEp4XX6iqsi
    VNJdMCEp4XX6iqsi
    kU1AE3s3LMmEdF43
    XW61R1qcmSOEkPb5

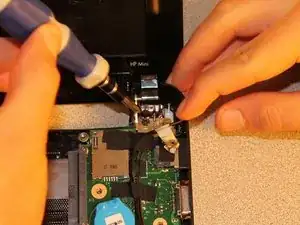

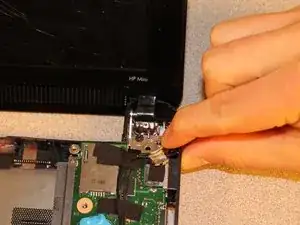

    • Remove the two 3.8mm PH1 screws with a Philips Head screw driver holding the right screen bracket in place.

    • Again, wires may be blocking the accessibility to the screws, therefore you may need to move the wires around till you can access the screws.

    • While removing the last screw, hold the screen steady with one hand to avoid binding the last screw or letting the screen fall.

  15. fRNoNkIojoeAGGax
    fRNoNkIojoeAGGax
    DOjxvYtnCAJLaGFu
    2pl1RbWIQmYUfyWo

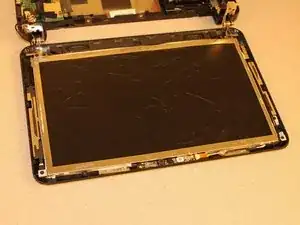

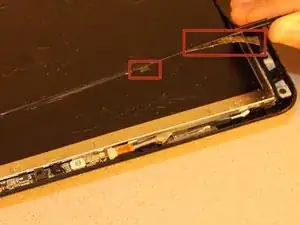

    • Once the screen is disconnected from the frame of the computer, gently lay the top screen down.

    • The screen is connected by internal clips and adhesive, therefore some force will be required.

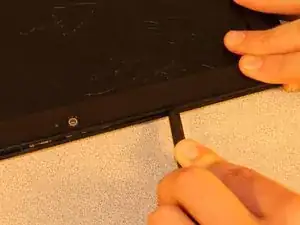

    • Use the spudger to pry the the screen bezel from the screen.

  16. XJuiKZyOZD2SFtXI
    XJuiKZyOZD2SFtXI
    nqIvR3sGWs2rKXDS

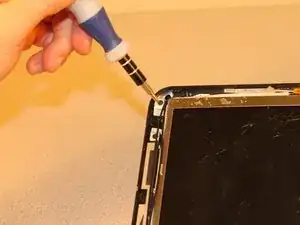

    • Locate the seven 2.9mm screws connecting the screen to the lid.

    • Using a PH0 philips head screw driver remove the screws.

  17. MJW2rkITRXmJQkVH
    MJW2rkITRXmJQkVH
    rKMxXX4cEfWVOPNm
    i3rWMJVHYSyIvtlh

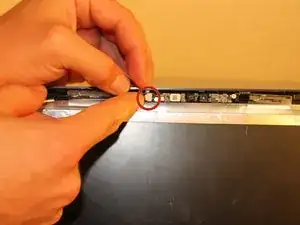

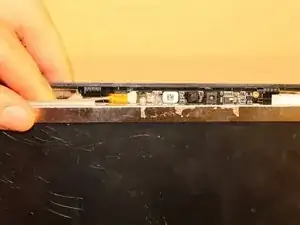

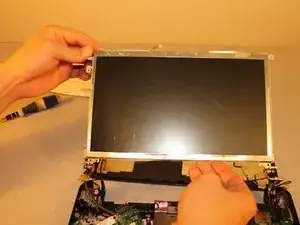

    • Begin to gently pull the screen away from the back bezel until the webcam ribbon cable is revealed.

    • Using your fingers detach the ribbon cable from the receptacle on the webcam board.

  18. mdfbBKGUKDjFiEGe
    mdfbBKGUKDjFiEGe
    AwbmNDWpPD2JYaQg
    BiyMSZc6kcGkY3GB

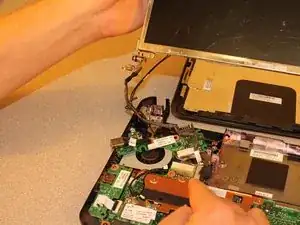

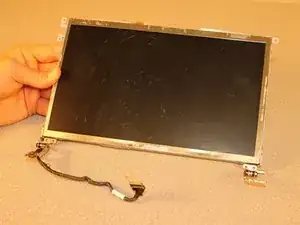

    • Pull the screen completely away from the lid.

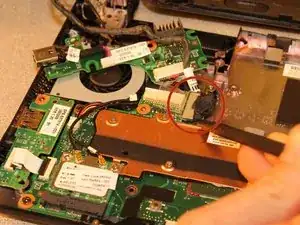

    • Locate the thick black wire. This connects to a connector strip just below the power management board.

    • Using a spudger pry the connector strip upward.

    • The screen is now fully disconnected.

  19. xDwGat1oJIaMiJo6
    xDwGat1oJIaMiJo6
    SLZ1VnelwISjc1qo
    orK3VEa2vopNWGyL

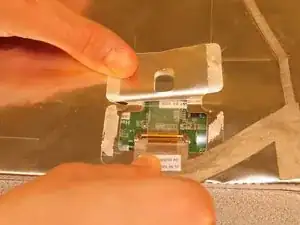

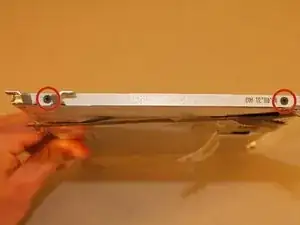

    • Remove the two 2.9mm screws that hold each bracket in place, with a PH0 screwdriver.

    • Once the brackets are removed, flip the screen over and disconnect the black wire connecting to the screen.

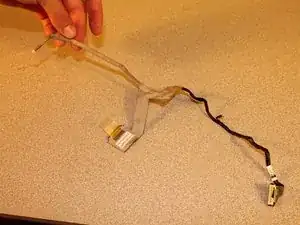

    • Lastly, peel the wires off the back of the screen. Do not throw these away as they may not be included with a new screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
