If your speakers are cracking or no sound is being produced, replacing your speakers might be necessary.

  1. GciAOIqHgOh5Y4Uo
    GciAOIqHgOh5Y4Uo
    hTfladGwNGaeGEht
    mbUFhb24OjY3OBB5
    • Power-off the netbook fully before attempting to remove the battery.

    • Flip your netbook upside down, and locate the sliding tabs near the battery.

    • Slide both tabs inward so that the battery visibly moves away from the case of the computer.

    • Release the tabs and pull the battery out.

  2. 4meoOfMoCkdZCJft
    4meoOfMoCkdZCJft
    B2kajtR4pFpuhSI5
    • With the screen closed, turn your netbook around so that the battery slot is facing you.

    • Remove the three 2.9mm screws in the battery slot.

    • This step can be made easier by using a magnetic screwdriver.

  3. HUZXbysOHfnknHut
    HUZXbysOHfnknHut
    i5de42UcPCdSrjDK
    hFnSDuj3NFdGorT3
    • Flip the netbook upright, and open the screen as far as it will go.

    • Pry up the keyboard from the middle of the top edge.

    • Insert the flat end of the spudger between middle of the the top edge of the keyboard and the plastic frame behind it.

    • Pry the keyboard up until it pops out or until you can grab it with your fingers, and then pull gently until it pops out on both sides.

    • Do not pull the keyboard out immediately - there is a potentially fragile ribbon cable that attaches to the motherboard behind the keyboard.

  4. nuFkCPAKsUHRiSyv
    nuFkCPAKsUHRiSyv
    2DCorUE3QiM3MMGq
    NjOkBHhtWnWK6VBr
    • Flip the keyboard over (toward you) by pivoting it about the lower edge, and lay it upside down on top of the touchpad area to reveal the ribbon cable.

    • Lightly pull up on the black tab on top of the keyboard ribbon cable until it hinges toward you and releases the ribbon cable end.

    • Pull the ribbon cable backward and out of the receptacle. This should not require any effort.

  5. xSbZjUWuyVDoIoEq
    xSbZjUWuyVDoIoEq
    4UsScY4IO5ehH3Dk
    E3TXsRCA3IqalIa2
    • Remove the three screws holding down the hard drive. Use a Phillips PH0 screwdriver for the two silver, 3.4mm screws on the right, and use a PH1 for the black, 10.3mm screw on the left.

    • It is not necessary to fully remove the 10.3mm screw, but if you do, be careful to not lose the spring.

  6. DMjM2SlFTd56LlIS
    DMjM2SlFTd56LlIS
    cIUmTssM6bdnWS2H
    ghM3gHEY1EE5ULVO
    • As shown on the top face of the hard drive itself, pull hard drive left using the black tab until the hard drive is unplugged and entirely released from its receptacle.

    • Lift the hard drive out of the laptop.

    • Place the hard drive in an anti-static bag to reduce the likelihood of damaging it with static electricity.

  7. dB2rtJKukWWQHm4N
    dB2rtJKukWWQHm4N
    ohiLHqZ2thYXUidN
    erU6tpALkfBDDkeO
    • Flip the netbook over so you are looking at the bottom, and locate the two screws that hold the memory card cover.

    • Next, take a Phillips PH1 screwdriver and unscrew the two screws.

    • These screws will not release from the cover once they are unscrewed.

    • If necessary, use the flat end of the spudger to assist in prying the cover away from the computer.

  8. PwHwtQWlKtxnalBG
    PwHwtQWlKtxnalBG
    AA5g2uPaEBbfxLIL
    • It is not necessary to remove the memory card for this step.

    • Remove the 4.9mm screw located to the right of the of the memory card using a PH1 screwdriver.

  9. Vt4vlJBArCuiswjQ
    Vt4vlJBArCuiswjQ
    br5TL5JsXiuB1NeZ
    AYhpIjmTCcloHmhc
    • Pry the four feet with the pick-end of the spudger. These are glued down, so this may require some force.

    • Remove the 6mm PH1 screws located under each foot.

  10. gH22qQYfmWDPvvIn
    gH22qQYfmWDPvvIn
    3ANQU6JOAVB3iYXT
    bZwUlqLpGvVcQDY5
    • Flip the netbook over and remove with a PH1 screwdriver the eight 5.9mm screws that secure the keyboard bezel in place.

    • Only remove the black screws with "M2.5x6" markings next to them. All others are unnecessary.

    • Taking the keyboard bezel off without removing the hard drive may be possible, but there is a risk of breaking several tabs on the keyboard bezel located between the hard drive and the frame of the computer.

    • Using the flat end of the spudger or pry stick, pry the keyboard bezel away from the base by wedging the tool between the base and keyboard bezel and run the tool along the side until the cover is fully released.

    • Don't pull the front of the keyboard up very far. There is a small, potentially fragile ribbon cable on the back of the touchpad that is still attached to the system board.

    • Carefully flip the keyboard bezel over (toward you) to reveal the touchpad ribbon cable.

  11. H6h5imoIwVkiPFRm
    H6h5imoIwVkiPFRm
    NaUTilhZSKOfJErJ
    HwDOlgCaDhehsqeO
    • Locate the black and white tab that connects the touchpad ribbon cable to the motherboard.

    • Using your fingernail or a pry stick, flip the white tab up to release the ribbon cable end.

    • Remove the touchpad ribbon cable from the receptacle on the system board by gently pulling the ribbon away from the clamp.

  12. BgUeNCUYFCEKlMT1
    BgUeNCUYFCEKlMT1
    ecdTVIkVvtFSB32O
    5lsTiuWKhDHj2WiS

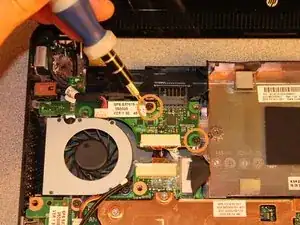

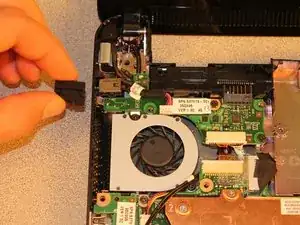

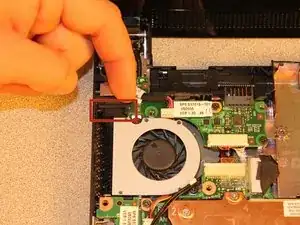

    • Remove the rubber capsule located on the upper left hand side above the fan.

    • Remove the two 3.8mm screws located on the power management board with a PH1 Philips head screw driver.

  13. EdqQsqZJ4iApiYaR
    EdqQsqZJ4iApiYaR
    OIFMcSa6EINfUFkr
    6nPr1DZRpg2BlRoQ

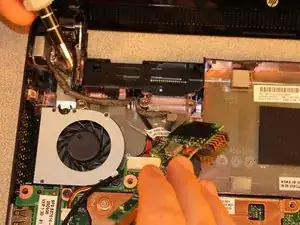

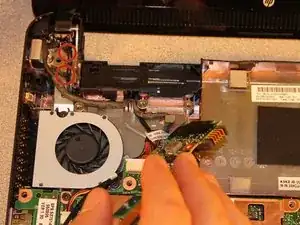

    • Pull the power management board out of the way to allow access to the hinge screws as shown.

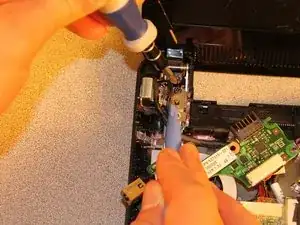

    • Remove the two 3.8mm screws that secure the left screen hinge using a PH1 screwdriver.

    • You may have to also hold a couple of wires out of the way to access the screws.

  14. ygGoOaGLGfG2gOfO
    ygGoOaGLGfG2gOfO
    ZYMMxnabEQfTBwhb
    vyixYIQHI2mbpMVa

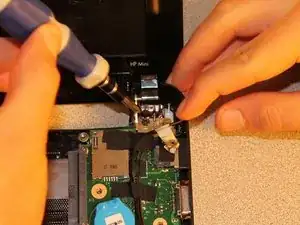

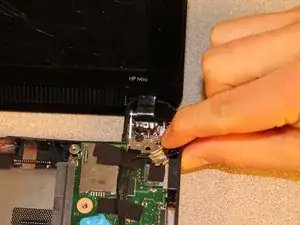

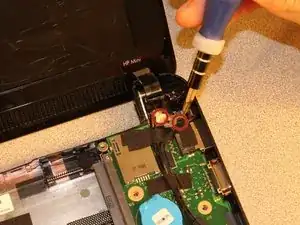

    • Remove the two 3.8mm PH1 screws with a Philips Head screw driver holding the right screen bracket in place.

    • Again, wires may be blocking the accessibility to the screws, therefore you may need to move the wires around till you can access the screws.

    • While removing the last screw, hold the screen steady with one hand to avoid binding the last screw or letting the screen fall.

  15. YrsUN4ClYbWOEvJT
    YrsUN4ClYbWOEvJT
    yu3ndXHRXaMqSr3d
    c6YCSXJqkXilRZOO

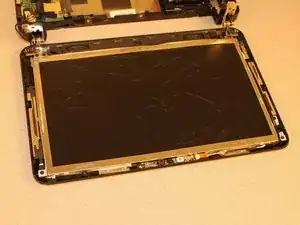

    • Once the screen is disconnected from the frame of the computer, gently lay the top screen down.

    • The screen is connected by internal clips and adhesive, therefore some force will be required.

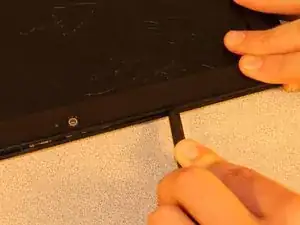

    • Use the spudger to pry the the screen bezel from the screen.

  16. iELrGtgqKC4wKaMF
    iELrGtgqKC4wKaMF
    UbLSvRDsRTFI5BFP
    tnn3hiFTXlBK1q5g

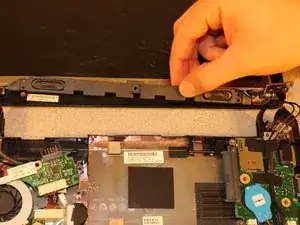

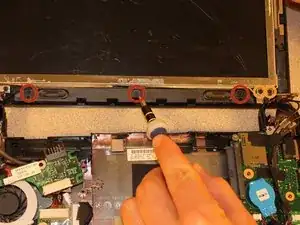

    • Remove the three 2.9mm PH0 screws connecting the speakers to the screen lid.

    • Remove the two 2.9mm PH0 screws that hold the lid to the screen. This will allow you to extract the speaker wire from behind the hinge.

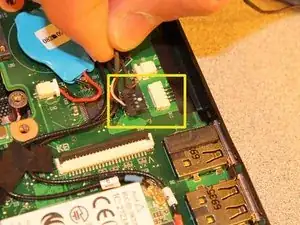

    • Locate the speaker wire and its receptacle on the system board. Push it directly out using your fingers.

    • Tape will be holding several wires in place, this tape will need to be removed in order to take the speakers completely out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
