HP Mini 110-3131dx Memory Card Replacement

Geschrieben von: aarondcollege
  • Kommentare: 1
HP Mini 110-3131dx Memory Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

1 Minute

Einleitung

This is a step by step guide to help you replace the memory card for the HP Mini 110-3131dx in order to increase the laptop's performance.

    • Power off the laptop before trying to remove the battery.

    • Turn the laptop upside down, and locate the sliding tabs on the battery.

    • Slide both tabs in an inward direction, then slide the battery away from the laptop.

  2. Bs1A1lqvA4XnEAuU
    Bs1A1lqvA4XnEAuU
    eKBaSCVTYQbHKcSM

    • To remove the bottom cover pull the orange tab to the right until it clicks.

    • Carefully disconnect the clips as you lift the bottom cover.

  3. ouqIQJBErlA2K11d
    ouqIQJBErlA2K11d
    X5YN3iTybZFPxcqb
    1YMiVHpvJToRSxSZ

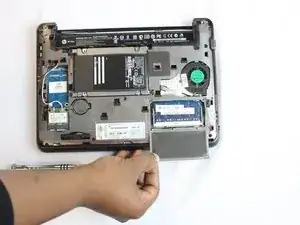

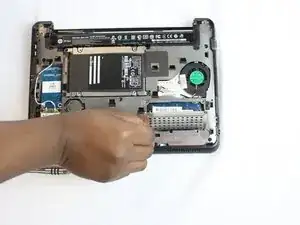

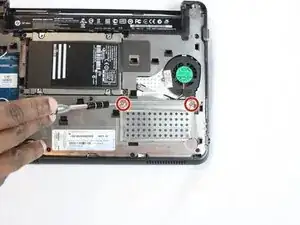

    • Find the two silver screws that hold the memory card cover.

    • Take a PH1 screwdriver and unscrew the two screws.

    • Remove the metal cover

  4. AEX5r62XRAQIPl2f
    AEX5r62XRAQIPl2f
    tytdqUudHwKJdR1w

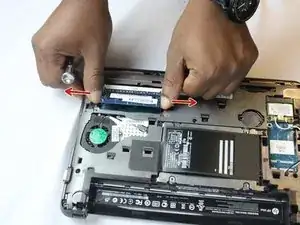

    • Pull the two white tabs located on either side of the memory card away from each other until the card pops up

    • Remove the card

Abschluss

To install the new memory card, follow these instructions in reverse order.
