HP Mini 110-3735dx Hard Drive Replacement

Geschrieben von: Tyrone Williams
  • Kommentare: 0
HP Mini 110-3735dx Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

2 - 5 Minuten

Einleitung

If your hard drive is broken or you just want to upgrade, this guide will walk you through the steps for replacing the hard drive.

  1. BwAmodoDWKTuOCZV
    BwAmodoDWKTuOCZV
    43I1CCWUYHP1KpxY
    Rt5qfTUw2jUscrBa

    • With the bottom of the HP Mini facing up, slide both switches inward towards each other.

  2. BSHMANJXwLuPiEWL
    BSHMANJXwLuPiEWL
    MtUaHbMXTBGDS2eZ

    • With the left switch still pushed inward, pull the battery towards you to remove it from the computer.

  3. YaSeuINfnEaYHHAK
    YaSeuINfnEaYHHAK
    2EyEdTktdNFsfEuM
    eISmeRZ4KauTdJVe

    • Pull upward from under the back cover via the missing battery area.

    • Best to start from one of the corners.

  4. UB3kvallZwKvgEAS

    • Remove the three 5.0 mm screws holding the hard drive cage in place using a Phillips #1 screw driver.

  5. SjUhVNHkrtMM4lQM
    SjUhVNHkrtMM4lQM
    DFeDgGuErX2LIOU3
    bJGJLvejGGSXMi1S

    • Lift the hard drive cage by pulling the tape upward.

    • Start by pulling the tape from the side with the keyboard symbol.

  6. AaMFcijLRJZjreql
    AaMFcijLRJZjreql
    ouT6QlAaQPUF6QgF

    • Unplug the cable connecting to the hard drive.

  7. WSepBXCNmIFwfaqS
    WSepBXCNmIFwfaqS
    mDKPpRTZVlkSUo2j
    yxmcSsG44lbEReW5

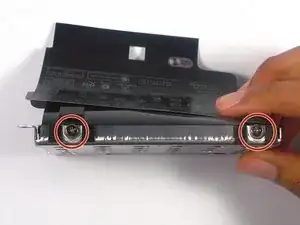

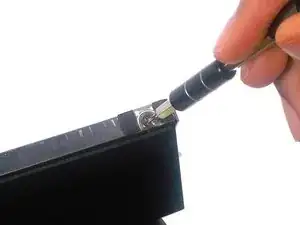

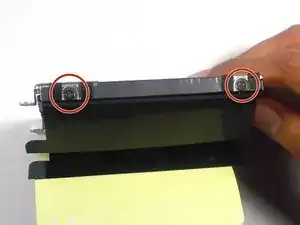

    • Remove the four 4.0 mm screws on both sides of the cage using a Phillips #1 screw driver.

  8. LSZJhEZWKc2sY2Pb
    LSZJhEZWKc2sY2Pb
    1KjWW4qgQSprxjV6
    ZCEfYjK5wEOlUnk2

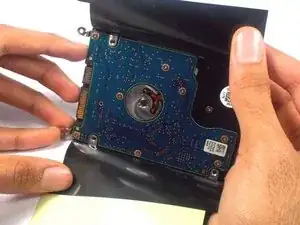

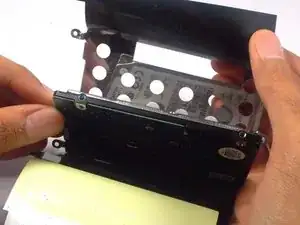

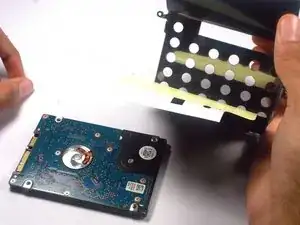

    • Gently remove the hard drive from it's cage.

Abschluss

To reassemble your device, follow these instructions in reverse order.
