HP Mini 110-3735dx Keyboard Replacement

Geschrieben von: Tyrone Williams
  • Kommentare: 0
HP Mini 110-3735dx Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

8 Minuten

Einleitung

If the keys on your keyboard are unresponsive, you might need to replace the keyboard itself. This guide will show you the steps for replacing your HP Mini 110's keyboard.

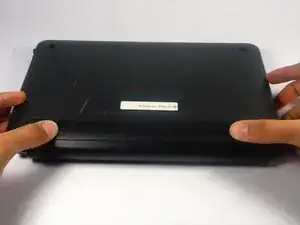

  1. BwAmodoDWKTuOCZV
    BwAmodoDWKTuOCZV
    43I1CCWUYHP1KpxY
    Rt5qfTUw2jUscrBa

    • With the bottom of the HP Mini facing up, slide both switches inward towards each other.

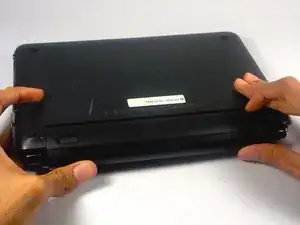

  2. BSHMANJXwLuPiEWL
    BSHMANJXwLuPiEWL
    MtUaHbMXTBGDS2eZ

    • With the left switch still pushed inward, pull the battery towards you to remove it from the computer.

  3. YaSeuINfnEaYHHAK
    YaSeuINfnEaYHHAK
    2EyEdTktdNFsfEuM
    eISmeRZ4KauTdJVe

    • Pull upward from under the back cover via the missing battery area.

    • Best to start from one of the corners.

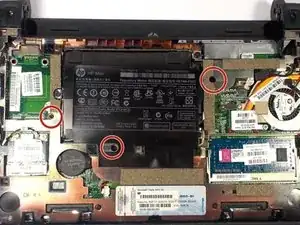

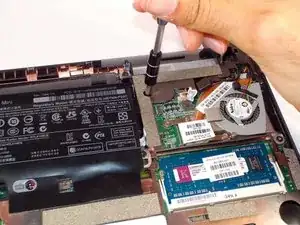

  4. huUvoWOuNZYcCGRG
    huUvoWOuNZYcCGRG
    AIA1NXqlLfhKQtiY

    • Remove the three 4.0 mm screws with the keyboard indicator next to them using a Phillips #1 screw driver.

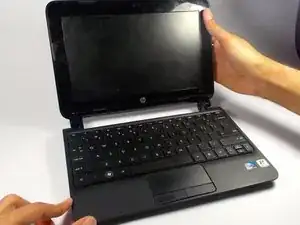

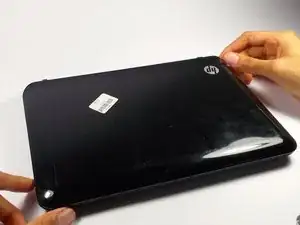

  5. 3LYoErB4VQqC6Vu6
    3LYoErB4VQqC6Vu6
    XG2bbSJOXDdmmh1n

    • Flip the laptop over, and open it up.

    • Don't worry! No pieces will fall out.

  6. y4MLnxGjCnvMhKgO
    y4MLnxGjCnvMhKgO
    IUMRSJoyVGDXOlXO

    • With the keyboard facing you, pull the black bezel upward until its loose.

    • You should hear three clicks.

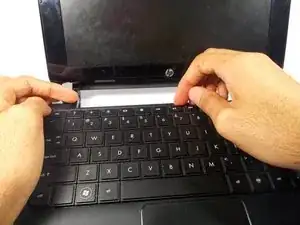

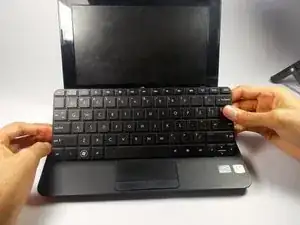

  7. Hy5Y1Sj5mHFALqmU
    Hy5Y1Sj5mHFALqmU
    LBwQNNglFdZrb51d

    • Move and hold the bezel slightly towards the screen while lifting the keyboard from the top.

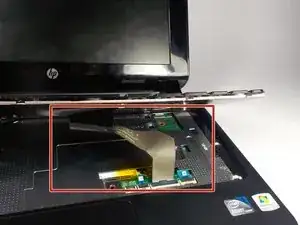

  8. Waq2bRgS5m5FWxE6

    • Pull up the keyboard from the bottom corners exposing the keyboard cable.

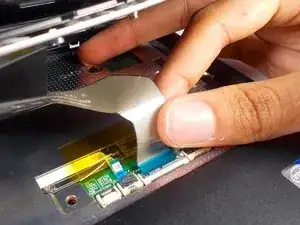

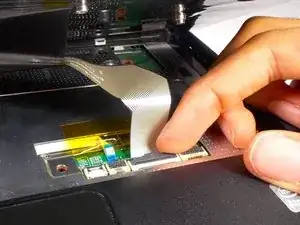

  9. h4hJKyDCYOpyvYe5
    h4hJKyDCYOpyvYe5
    VZo1bflWk4OX2Vkk

    • Lift the black holder connected to the keyboard cable until it points up.

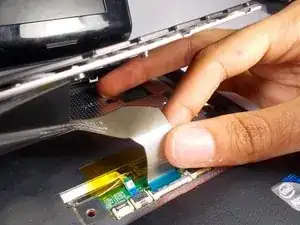

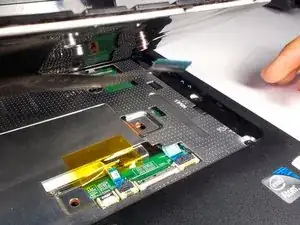

  10. hnOHMoR6l4MqTCyb
    hnOHMoR6l4MqTCyb
    hsKIvQtaBBBqpeWG

    • Gently pull the keyboard cable from the socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
