HP Mini 210-2070NR Keyboard Replacement

Geschrieben von: Sean Kuster
  • Kommentare: 0
HP Mini 210-2070NR Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

Use this guide to remove and install a new keyboard as a whole.

  1. riJsTW3MVaoHCeBf

    • Before beginning, make sure that your computer is turned off and all external power cords are disconnected.

    • Close the laptop and turn it over so that the underside is up and the silver battery bay is facing towards you.

  2. ewUKsmlQTQ4IhBkr
    ewUKsmlQTQ4IhBkr
    Opqj1oSNklmLkYiY
    CtDjZDPgUMs3fpOs

    • The battery locking latch is on the bottom right corner; slide it inward to unlock the battery.

    • Slide the battery release latch inwards.

    • Pull the battery towards you to remove it.

  3. hv3Pq3WCkIHIR3qK
    hv3Pq3WCkIHIR3qK
    cnXtY1HAB6rLwGQ4
    EwvJu2bfQrwVvsO2

    • Slide the service access cover release lever to the right.

    • While holding the lever to the right, lift up the laptop's bottom cover gently and remove the cover.

  4. fhiiaTICmgypPFPH

    • Orient the computer as shown in the picture.

  5. uZkPvqvHKEw5CMNT
    uZkPvqvHKEw5CMNT
    BcmPUBOhVj2hhR24

    • Using a 00 Phillips screwdriver, unscrew and remove the three 2.0 X 5.0 screws that connect the keyboard to the computer.

    • Each of the screws are labeled with small keyboards next to them.

    • Flip the computer over so that the front is facing you.

  6. As4GOBgLCpduGoVK
    As4GOBgLCpduGoVK
    4OcMKALyX5OgD6WP
    hOvssqecRjGeB1MK

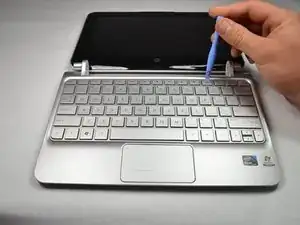

    • Open the computer screen as far as possible. It should be able to lay flat on whatever surface you are working on.

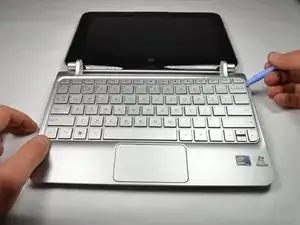

    • Pry along the rear edge of the keyboard away from the PC with the plastic opening tool.

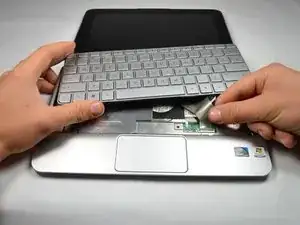

    • Once enough of an opening has been established, gently grasp the edge and pull the keyboard towards you.

    • There is a cable connecting the keyboard to the laptop, so do not attempt to fully remove the keyboard yet or you will damage your device.

  7. hgakfI6FSpQdTU1G
    hgakfI6FSpQdTU1G
    LeTDN63S4ybGQMTg

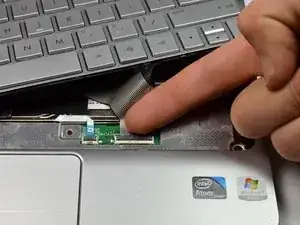

    • Use your fingernail to flip up the black retaining flap attached to the keyboard ZIF connector.

    • Pull the keyboard cable out of its socket to disconnect it.

  8. FZi3djLlyUv3i3Rr

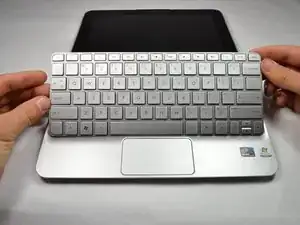

    • Remove the keyboard by lifting it away from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
