HP Mini 210-2070NR RAM Replacement

Geschrieben von: Sean Kuster
  • Kommentare: 0
HP Mini 210-2070NR RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace your RAM Card. Replacing your RAM card for one of higher capacity will allow your system to perform better.

  1. riJsTW3MVaoHCeBf

    • Before beginning, make sure that your computer is turned off and all external power cords are disconnected.

    • Close the laptop and turn it over so that the underside is up and the silver battery bay is facing towards you.

  2. ewUKsmlQTQ4IhBkr
    ewUKsmlQTQ4IhBkr
    Opqj1oSNklmLkYiY
    CtDjZDPgUMs3fpOs

    • The battery locking latch is on the bottom right corner; slide it inward to unlock the battery.

    • Slide the battery release latch inwards.

    • Pull the battery towards you to remove it.

  3. hv3Pq3WCkIHIR3qK
    hv3Pq3WCkIHIR3qK
    cnXtY1HAB6rLwGQ4
    EwvJu2bfQrwVvsO2

    • Slide the service access cover release lever to the right.

    • While holding the lever to the right, lift up the laptop's bottom cover gently and remove the cover.

  4. fhiiaTICmgypPFPH

    • Orient the computer as shown in the picture.

  5. qC1GKNYyXbTyAooY

    • Using your fingers, pull the two white clips (tabs) on both sides of the RAM away from each other. Keep pulling the clips until the RAM pops up

    • Hold the RAM on the edges only. Touching the components on the RAM might damage it.

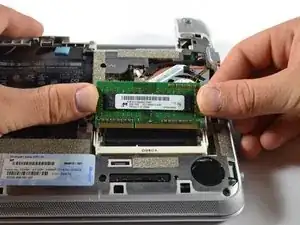

  6. PWCWOoRH2eOWbgnw

    • Grab the edges of the module and gently lift it from the slot.

    • RAM Cards are designed with a notch on the surface to prevent incorrect insertion into the memory module slot.

Abschluss

To reassemble your device, follow these instructions in reverse order.
