HP Mini 210-2070NR RTC Battery Replacement

Geschrieben von: Alek Linquist
  • Kommentare: 0
HP Mini 210-2070NR RTC Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

The Real Time Clock (RTC) Battery helps to retain important BIOS settings such as system time, date, and BIOS configuration while the laptop is turned off or when the main battery is removed.

  1. riJsTW3MVaoHCeBf

    • Before beginning, make sure that your computer is turned off and all external power cords are disconnected.

    • Close the laptop and turn it over so that the underside is up and the silver battery bay is facing towards you.

  2. ewUKsmlQTQ4IhBkr
    ewUKsmlQTQ4IhBkr
    Opqj1oSNklmLkYiY
    CtDjZDPgUMs3fpOs

    • The battery locking latch is on the bottom right corner; slide it inward to unlock the battery.

    • Slide the battery release latch inwards.

    • Pull the battery towards you to remove it.

  3. hv3Pq3WCkIHIR3qK
    hv3Pq3WCkIHIR3qK
    cnXtY1HAB6rLwGQ4
    EwvJu2bfQrwVvsO2

    • Slide the service access cover release lever to the right.

    • While holding the lever to the right, lift up the laptop's bottom cover gently and remove the cover.

  4. fhiiaTICmgypPFPH

    • Orient the computer as shown in the picture.

  5. RcGJlimq16yVIDCr
    RcGJlimq16yVIDCr
    6IXBKNKmqYXXbVrr
    lLsvmMHFjCFsD3t3

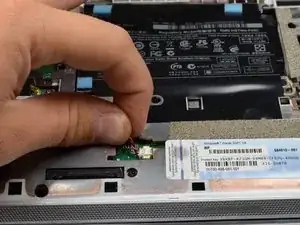

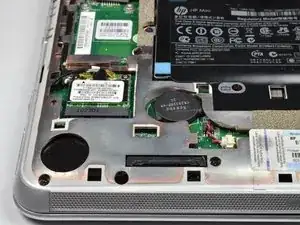

    • The RTC battery is a thin disk near the bottom left corner.

    • The black and red cable is the RTC battery cable.

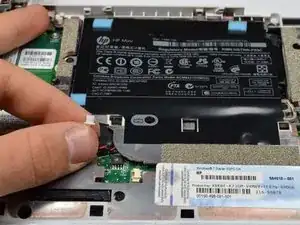

    • Pull the RTC battery cable out of its socket.

  6. drV5dWYV6sZy3kHj
    drV5dWYV6sZy3kHj
    qEpwXvBGnnr1MclW

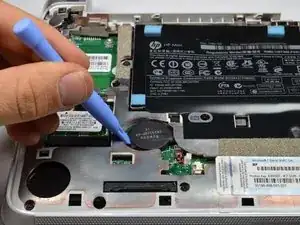

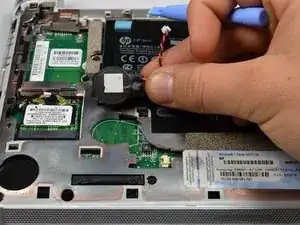

    • Gently pry the RTC battery upward with the plastic opening tool.

    • Remove RTC battery.

    • The RTC battery is attached with double sided tape.

Abschluss

To reassemble your device, follow these instructions in reverse order.
