HP Mini 210-2070NR Wi-Fi Card (WLAN Module) Replacement

Geschrieben von: Taylor
  • Kommentare: 0
HP Mini 210-2070NR Wi-Fi Card (WLAN Module) Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

The Wi-Fi Card is also called a WLAN Module, and is what connects you to the internet without needing to be attached to a cord.

  1. riJsTW3MVaoHCeBf

    • Before beginning, make sure that your computer is turned off and all external power cords are disconnected.

    • Close the laptop and turn it over so that the underside is up and the silver battery bay is facing towards you.

  2. ewUKsmlQTQ4IhBkr
    ewUKsmlQTQ4IhBkr
    Opqj1oSNklmLkYiY
    CtDjZDPgUMs3fpOs

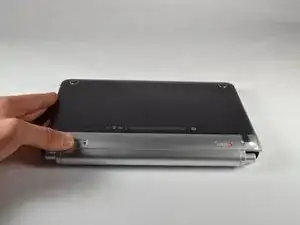

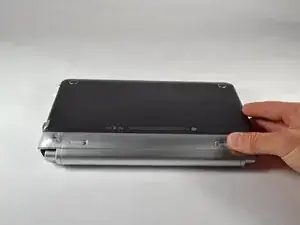

    • The battery locking latch is on the bottom right corner; slide it inward to unlock the battery.

    • Slide the battery release latch inwards.

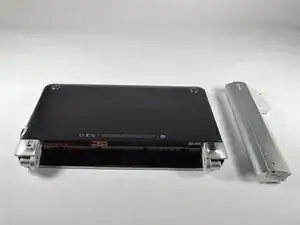

    • Pull the battery towards you to remove it.

  3. hv3Pq3WCkIHIR3qK
    hv3Pq3WCkIHIR3qK
    cnXtY1HAB6rLwGQ4
    EwvJu2bfQrwVvsO2

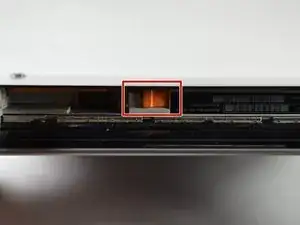

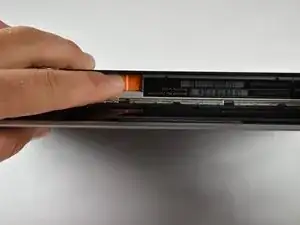

    • Slide the service access cover release lever to the right.

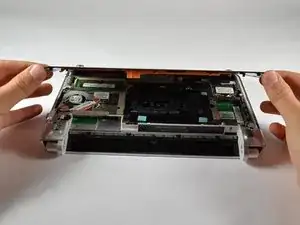

    • While holding the lever to the right, lift up the laptop's bottom cover gently and remove the cover.

  4. fhiiaTICmgypPFPH

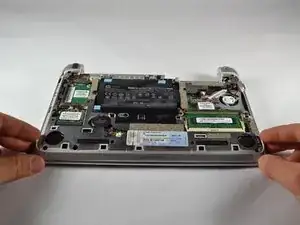

    • Orient the computer as shown in the picture.

  5. 6iZJMYyV3lyUZxPg
    6iZJMYyV3lyUZxPg
    4GXFbFHBgDB5tt1R

    • Locate the Wi-Fi Card (WLAN Module), near the computer's bottom left corner.

  6. TWIXeaQWrNn4xiuJ
    TWIXeaQWrNn4xiuJ
    E6WMv2C3xNCL6LoV
    daQlOvWDLfCTiPxG

    • Disconnect the two cables from the Wi-Fi card by gently lifting them away from the card.

    • There should be two black cables, one labeled with a white sticker, connected to the module.

  7. O4UpUM4u2aibqUfE

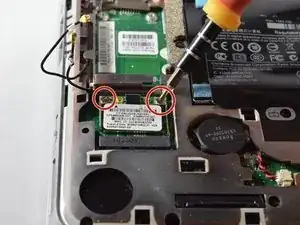

    • Remove the two 2.0 x 3.0 screws securing the Wi-Fi card using a Phillips #00 screwdriver

    • The card should tilt up away from the laptop at an angle after removing the screws.

  8. jDFjN6VLK5XaTAkq

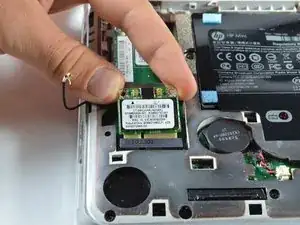

    • Remove the Wi-Fi card by gently pulling it out of its slot at an angle.

    • Potential for device damage: Be sure to pull gently and at an angle away from you. If the card is pulled straight up, there is a chance it could break or bend.

Abschluss

To reassemble your device, follow these instructions in reverse order.
