HP Mini 311 WWAN Card Replacement

Geschrieben von: Christian Santoyo
  • Kommentare: 1
HP Mini 311 WWAN Card Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

6 Minuten

Einleitung

If you are having problems with internet connection, you may want to replace your wireless network card on your HP Mini 311.

  1. VJSryLLgvJ2J2FiF
    VJSryLLgvJ2J2FiF
    mfk65y1EPtCOYlNZ
    hT3YMWeRyOVFTIFe

    • Lay the laptop on a flat surface, bottom side up and slide the two battery release latches toward the outside of the case.

  2. vUMCijFoCENuCVdB
    vUMCijFoCENuCVdB
    BVeVIFZTjUVsVFuH

    • Slide the battery away from the device to remove.

  3. ZSBawQS6LNhQRNfb

    • With the device still in a bottom side up position, proceed to unscrew the two 4.8mm Phillips 00 screws from the memory shield.

    • The screws will remain in the shied.

  4. XaFJcfdAjSkpYfja
    XaFJcfdAjSkpYfja
    mFBOg3XWi5DNDQfL

    • Lift the memory shield up and remove from the laptop.

  5. GMAgKH53eji5jBcX
    GMAgKH53eji5jBcX
    Qvka2qhrwkpqlAQB
    osNiiOwrEyyWnZnY

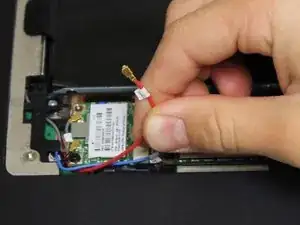

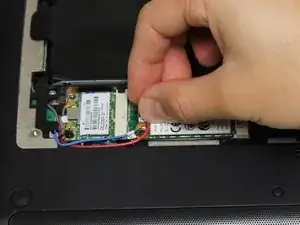

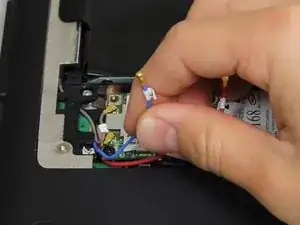

    • Begin by removing the red and blue wires from the wireless card.

    • Gently remove to avoid damaging the ends of the wires.

  6. qHsoEl2AshyZKZYW

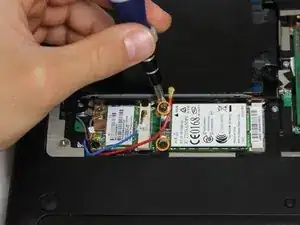

    • Remove the two Phillips 00 3.8mm screws attached to the wireless card.

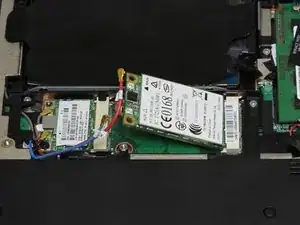

  7. YR1VF4QZSkS4iCgN
    YR1VF4QZSkS4iCgN
    6PvHBe4HZmQSJkdI
    ZkVhLuOFF12BxtMZ

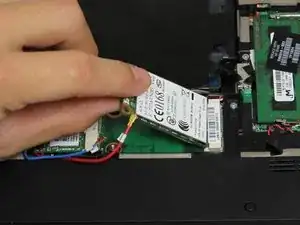

    • Lift up the unattached side of the wireless card and pull out to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
