HP Mobile Thin Client mt41 Fan Replacement

Geschrieben von: William Rapp
  • Kommentare: 0
HP Mobile Thin Client mt41 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

  1. gaKXdvnfM2OsI6ij
    gaKXdvnfM2OsI6ij
    uAVmpHHsBtABBMEc
    nkIXGHj1HowRkh5w

    • Remove the nine screws that keep the back cover secured.

    • We recommend removing the battery first. Refer to the "Battery Replacement" guide to learn how to remove the battery.

  2. ekCEFxW5MdA2gHUH
    ekCEFxW5MdA2gHUH
    vfjJjNoy6jAhWypS

    • Remove the middle plate with the iFixit opening tool.

    • May require a bit of force. If it is not coming out try the other side.

  3. niL1H1WNKu2RMqr6

    • Using the iFixit opening tool, go along the seam of the back cover to pop it from its latches.

    • Gently, please! The plastic can crack.

  4. 6kdQ1TNerkarx4sU

    • Once all corners are unclasped from their latches. Gently, lift the back cover.

    • Lifting the cover should not require much force.

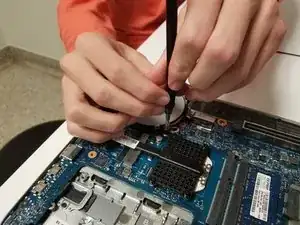

  5. sW2dpZni1fkPZhmy
    sW2dpZni1fkPZhmy
    5FJIXVFSJmiNgPpd

    • Using a J1 head for your screwdriver, remove the 4 surrounding screws.

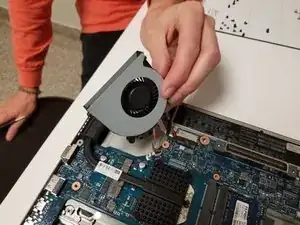

  6. dFbAfLNUaI1GufQI

    • Keep your screws close by, and slowly remove the CPU fan.

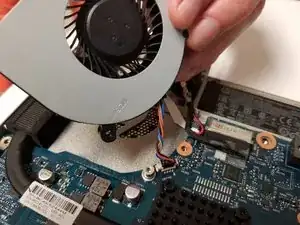

  7. 6O4iJIb5DNcqR3qg

    • Be mindful of wires, the final step is to unplug the fan from the motherboard, at the base of red and blue wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
