HP Mobile Thin Client mt41 Optical Disc Drive Replacement

Geschrieben von: Hassan Almunasif
  • Kommentare: 0
HP Mobile Thin Client mt41 Optical Disc Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

  1. Ph2OB26WLPBctYiG
    Ph2OB26WLPBctYiG
    4LbqKhirubDLZHSP

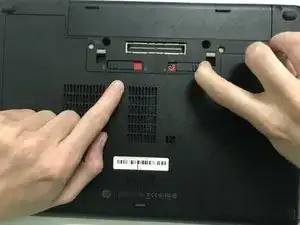

    • Turn off and unplug your laptop. Also, make sure to disconnect all the external devices.

    • After that, slide the two switches to the indicated directions in order to remove the battery and the back cover.

  2. WNQsVYMX6FhRSLCI
    WNQsVYMX6FhRSLCI
    KpUYNfxxfYbjEoBg

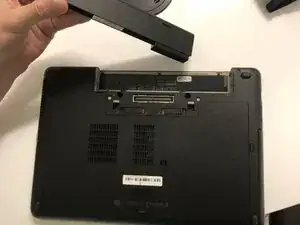

    • Now you're able to remove the battery and the service cover.

    • Slide the battery upward to remove it.

  3. FAW53wDyDCc3Ne1o
    FAW53wDyDCc3Ne1o
    qJOjUtmDBjMXG2N3
    JHNZk1sAsNkWNiLT

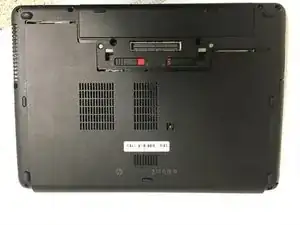

    • Slide the service cover downward.

    • After that, lift the back cover to remove it.

  4. FtHCDFToxVEqROOJ
    FtHCDFToxVEqROOJ
    eFDRxCi1qCkFbCB6
    XflujHhhJ3JNMwTL

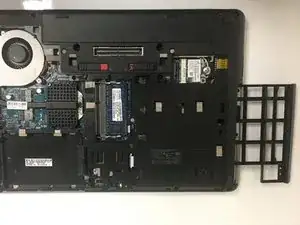

    • Unlock the indicated screw in order to remove the optical drive.

    • Slide the optical drive to completely remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
