HP Notebook 15-ba018ds Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

  1. 1G6HEHT6rkxNrCJg

    • Before beginning, make sure the laptop is completely turned off by pressing the off button and waiting for the screen to turn black.

    • Flip the laptop over so the battery is exposed which will be next to the hinges on the top left and right.

  2. pTYgUQ5wLbid2vrs
    pTYgUQ5wLbid2vrs
    3SpH5ti4VOgpms6Y
    EMyea2CdIWSluURM

    • Place your thumbs on the slide locks that are next to the hinges and simultaneously push them toward each other to unlock the battery.

    • While still holding onto the slide locks, push the battery away from the laptop with your index fingers.

  3. SEaU5aGKCGcufKSP
    SEaU5aGKCGcufKSP
    F2CaMqRDCTFlCsm4

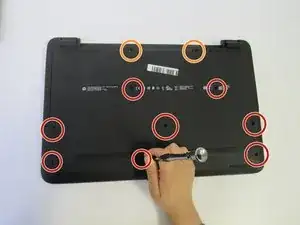

    • Unscrew the 8 screws on the back cover.

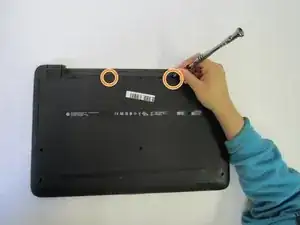

    • There are also two screws in the battery area that need to be removed.

    There are screws also under the anti slippery rubber black square.

    Ci sono delle viti anche sotto i gommini antiscivolamento.

    Pelatovich -

  4. jiNd1LeL1QjsoxFL

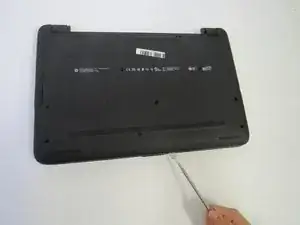

    • Use an opening tool to help remove the back cover.

    • If you look at the side of the laptop, you can see where it can be separated into two parts.

  5. NjeMUkBjZAeGGkkh
    NjeMUkBjZAeGGkkh
    4LMKmgXqNj1X3xbd

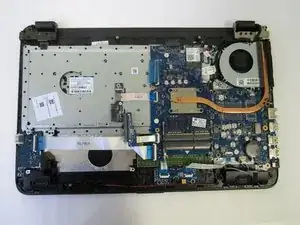

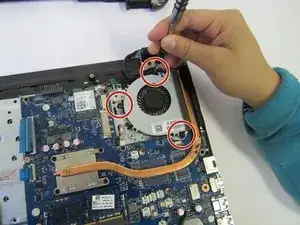

    • Remove the three Phillips head screws attached to the fan.

  6. u1v3BjLXmLsvyJEr
    u1v3BjLXmLsvyJEr
    gj4E2PLOc5ZYnQ4m

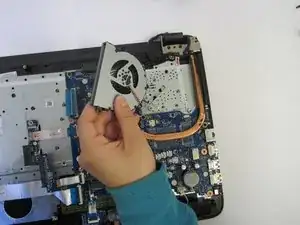

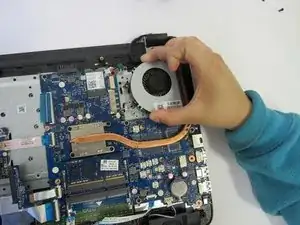

    • Remove old fan and replace with a new fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
