Is your screen cracked or smashed? Will it not turn on? Well you are in luck, if you follow our steps on how to disassembly the screen off the HP-Omen computer and reassembly the screen back on. This guides difficulty is moderate and contains 9 total steps that will take you approximately 20-40 minutes to complete it. This guide will also require the pre-requeste of removing the back cover and the battery. You will need only two tools for this repair guide, a Philips #00 screw-driver and a plastic opening tool.
Werkzeuge
-
-

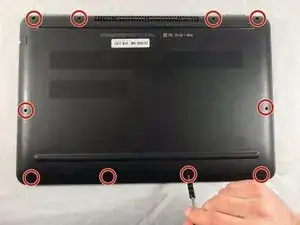

The rear panel is secured by 10 screws. Using a #00 Phillips Screwdriver, remove the ten 1.2 mm screws.
-

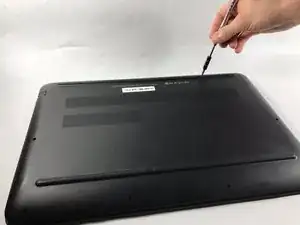

The screwdriver should be inserted at the same angle as the screws.
-
-
-

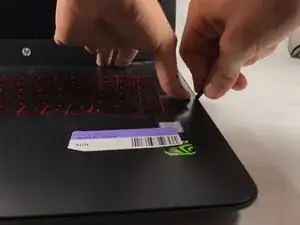

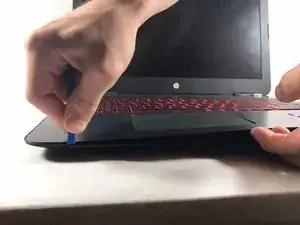

Insert a plastic opening tool between the rear panel and the top case. Pry the opening tool upwards to separate the top case from the bottom case.
-
Slide the opening tool along the case perimeter to loosen the bottom case.
-

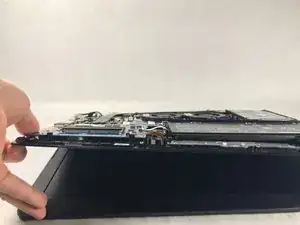

Gently pull the bottom case away from the laptop.
-
-
-

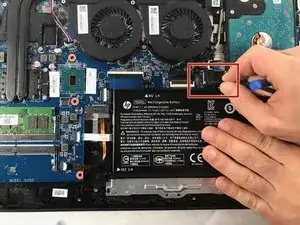

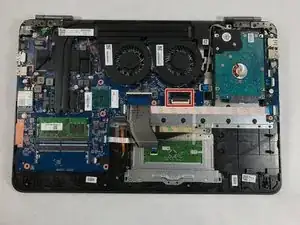

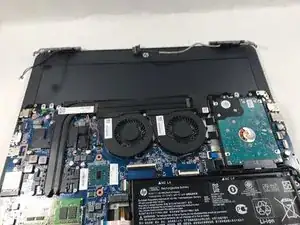

Pull the battery cable out from its motherboard socket.
-

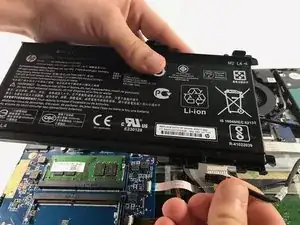

Remove the battery.
-
Disconnect the power cord from the battery and transfer it to your replacement battery.
-
-
-

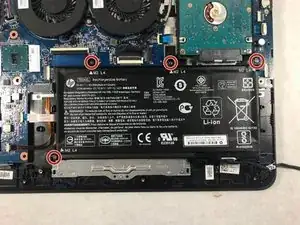

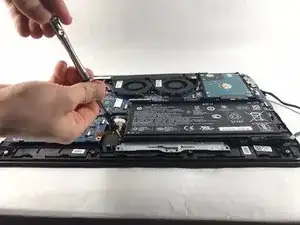

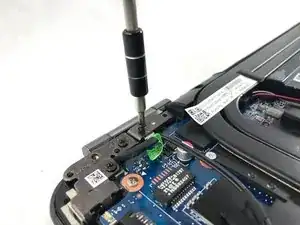

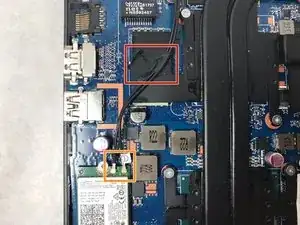

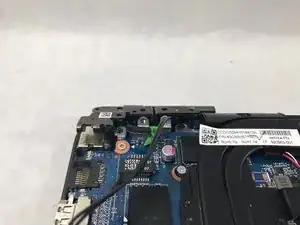

Unscrew the six 1.2 mm screws connecting the screen to the body using the #00 Phillips screwdriver head.
-
-
-

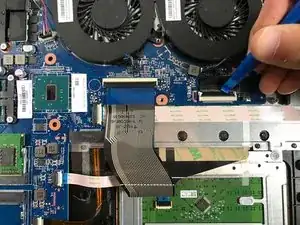

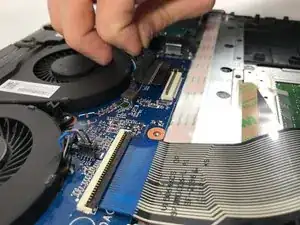

Flip the switch up that holds the screen cable in place
-
Lift up and pull back the cable from the insert
-
To reassemble your device, follow these instructions in reverse order.
Isn’t the plastic plug toward the center, and screw beneath it, a problem?
risorcurt -
There is no screw under the center plug, the bottom is just held on by clips after all 10 screws have been removed
Nigel Bancroft -
