HP Omen 15-ax280nd Hard Drive Replacement

Geschrieben von: Cas Eliëns
  • Kommentare: 14
HP Omen 15-ax280nd Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the internal 2.5" SATA hard drive in your HP Omen laptop with another one.

  1. oxcxhTVBEeRAK2OE

    • Disconnect all cables from your laptop

  2. AtDVM4vqrY2SfAnG
    AtDVM4vqrY2SfAnG
    yPxh6vxtlAE5dbNy

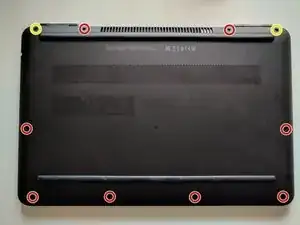

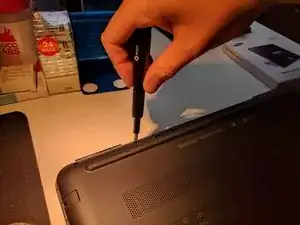

    • Remove 10 screws from the back cover

    • 2 large Philips #0 screws

    • 8 smaller Philips #0 screws

  3. xEUBHKNFkDOMEOow
    xEUBHKNFkDOMEOow
    riIBhNw5EH2i3RH5
    nUscckvI44RXPPRI

    • The laptop scratches easily, be careful when removing the back cover.

    • Turn the laptop over and open the lid

    • Remove the back cover

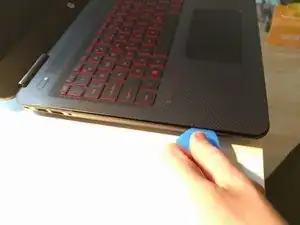

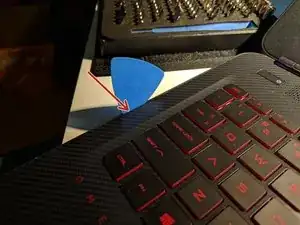

    • Place an opening pick in between the back cover and main body of the laptop

    • Work your way around the body, snapping open the clips holding the cover in place from the inside

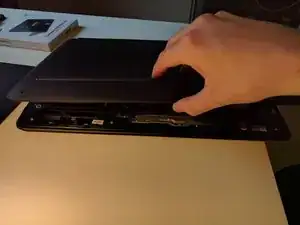

    • Turn the laptop over again and remove the back cover

  4. MDdJW6ZQwOjvpL6C
    MDdJW6ZQwOjvpL6C
    raiMDPYByILvFCHx
    SYHGxK2mqVt6Fy4p

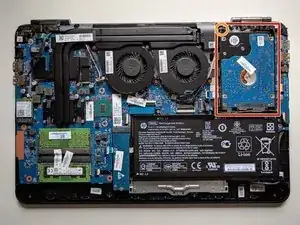

    • The hard drive is located in the back right of the laptop

    • A cable runs over the left drive bar, make sure to move it out of the way before removing the drive.

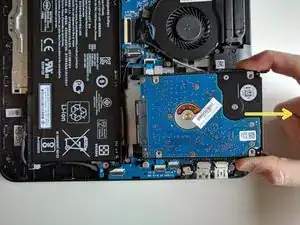

    • Pull the back of the drive up and backwards to remove it from the laptop.

    • Make sure to disconnect the SATA power and data cables before fully removing the drive.

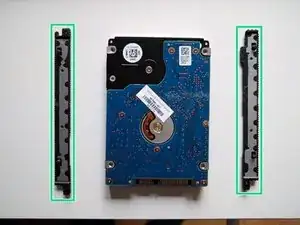

    • The drive bars can be removed without any tools, simply pull them to the side.

Abschluss

To reassemble your device, follow these instructions in reverse order.
