HP Omni 10 Speaker Replacement

Geschrieben von: Alex Miller
  • Kommentare: 1
HP Omni 10 Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

Using a spudger and a 00 Phillips head screwdriver, this guide will show how to remove a pair of speakers from an HP Omni 10 tablet in roughly 5 to 7 minutes.

  1. utoKZelNjVaAHlbP

    • Remove the back cover from the tablet.

    • The cover is securely fastened to the device and may be difficult to remove.

  2. EPQJwYWVPhAo5iDn

    • Push the black plastic security flaps into an upward position.

    • Lift the small tab on the security strips up and peel them across the battery. They will be attached via adhesive.

    • Lift the tab on the strip up and pull it across the battery.

    • The orange strip does not fully detach from the tablet like the other three. It will only detach from one side.

  3. 5GCmtVgbGxjkoL2w

    • Unscrew the ten 3.3 mm screws securing the battery using a 00 Phillip's head screwdriver.

  4. CjTqwS3qNwnfmbYX
    CjTqwS3qNwnfmbYX
    1xX1HwkFDSQAJNCX

    • Unhook the cord from the edge of the battery.

    • Pull the wire circuit out and down.

  5. q3kcRHmkBqRfkxh3
    q3kcRHmkBqRfkxh3
    BRLOP4hKMsHsISpD

    • Lift the battery up by its edges and remove it carefully. There will be adhesive holding the battery down.

  6. r1linIPXOypCwDJW

    • Unscrew the two 3.3 mm screws using a 00 Phillip's head screwdriver.

  7. xSrIxtrjF16OVpCJ

    • Lift and remove micro card reader board.

  8. sWJA14vfQQcq4eVY

    • Unscrew the four 3.3 mm screws using a 00 Phillip's head screwdriver.

  9. UQbGLMYCWtMC3qGx
    UQbGLMYCWtMC3qGx
    BNSanFmWtbYlwLBF

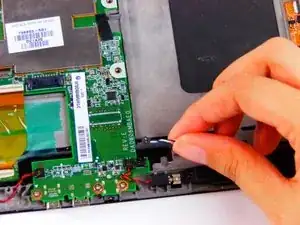

    • Pull the black and white wire connector up to disconnect it.

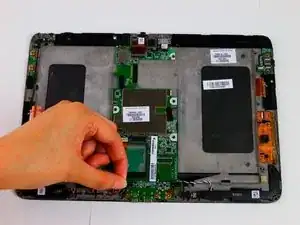

  10. BDFKEX2QtyWYrRDa
    BDFKEX2QtyWYrRDa
    KY5J6Wy6i12CoGGH

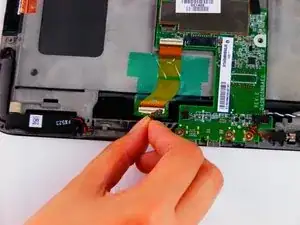

    • Pull the red and black wire connector up to disconnect it.

  11. dCUD24rQuhPNQHa1

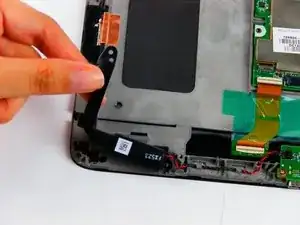

    • Lift the speaker set out of their sockets.

    • The speakers will also be attached via adhesive. They may be difficult to remove by hand.

  12. FObiLZRfDAKknlqs

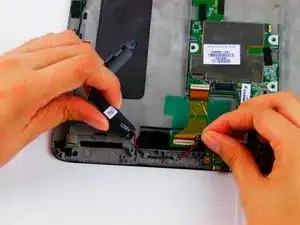

    • Unhook the left speaker's connector wire to fully remove it from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
