Einleitung
Unplug your device from any power source and turn off your laptop before beginning.
-
-
Use the spudger to pry off the two rubber feet near the hinge of the laptop. This will reveal two hidden 9mm screws.
-

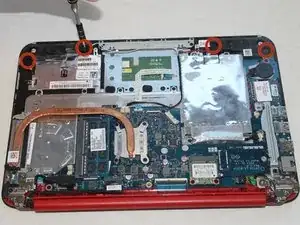

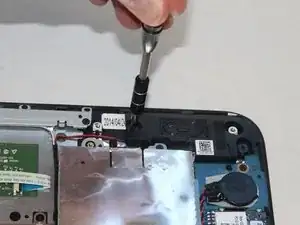

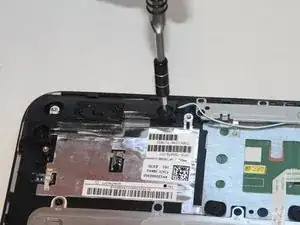

You must remove eleven screws.
-
Four 9mm screws with the PH0 screwdriver.
-
Seven 6mm screws with the PH0 screwdriver.
-
-
-
Use the spudger to pry the corners of the laptop near the display hinges.
-
Pry around the seam of the laptop with the plastic opening tool until the backing begins to pull apart.
-
-
-

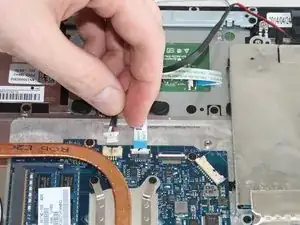

Use the plastic opening tool to lift the white tab up at the connection.
-
Pull the cable outwards.
-
-
-
Use the spudger to pry up the blue/white speaker wires that are routed beside the battery.
-
-
-

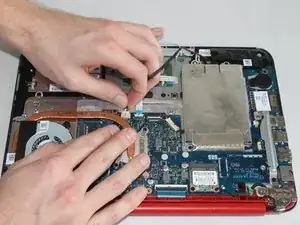

Remove the battery cable from the motherboard by gently pulling out on the black part of the cable closest to the white tab.
-
-
-
Disconnect the black cable that attaches the speakers to the motherboard by gently pulling the cable outward.
-

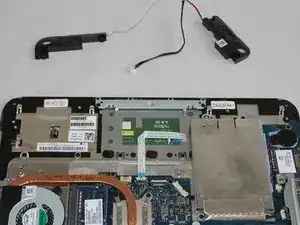

Remove the speakers.
-
To reassemble your device, follow these instructions in reverse order.
