Einleitung
If the bottom case of your device become cracked or damaged, this guide will show you how to replace it.
-
-

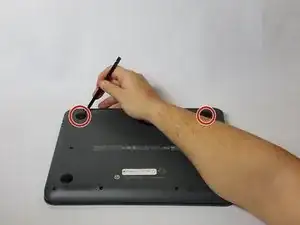

Use the nylon spudger to remove the rubber pads near the hinge for the screen. Then remove the screws under the pads.
-

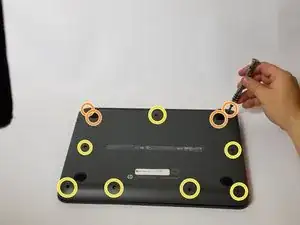

Use Phillips #0 to remove four 9mm screws.
-
Use Phillips #0 to remove seven 6mm screws.
-
-
-

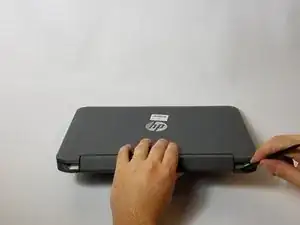

Use the nylon spudger to pry the back casing near the hinges for the screen.
-

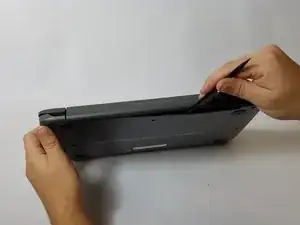

Continue to pry along the edge of the back case until the back is ready to be removed.
-
-
-

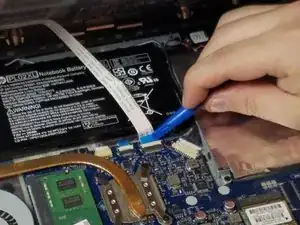

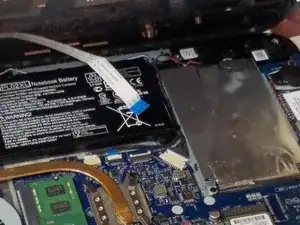

Use the plastic opening tool to lift up on the white tab that is holding the cable in place on the motherboard.
-

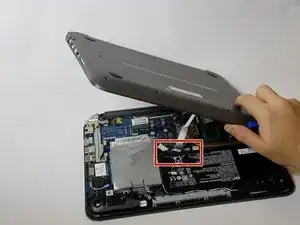

Now carefully pull the cable out of place and remove the entire back casing.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
