Solid state drives contain no moving parts, unlike a hard drive, and can last for years. One might want to switch from a hard drive to a SSD or purchase a bigger storage SSD. This guide will walk you through replacing the SSD card inside the motherboard.

  1. 22IRlXKtnDX62qVZ
    22IRlXKtnDX62qVZ
    EliP3Ydfcmlqm1F2
    • Turn the laptop over.

    • Remove all nine 3mm screws on back panel with a Phillips Head 1 driver.

  2. POgbGJDnmKQa3EWr
    POgbGJDnmKQa3EWr
    BojucQWDNGFGa1Im
    LSTGmsFV3CbubkV1
    • Pry off the four rubber bumpers, located at the top corners and center of the back panel, off with a pair of tweezers.

    • Bumpers are delicate and can be easily ripped.

    • Unscrew the four 3mm screws under the bumpers using a Phillips Head 1 screwdriver.

  3. WGMmWUeNDH4XtluD
    WGMmWUeNDH4XtluD
    TTvYRvTcGRYRaNES
    • Flip the laptop right side up and open the clamshell.

    • Starting at the bottom right corner, slide the opening tool into the crevice between the blue and silver panels.

    • Carefully pry the top casing up around the edges, moving counterclockwise.

    • Keep the tool steady throughout, as prying in a rough manner can break the casing.

    • You will hear audible clicking sounds as the clips connecting the two halves disconnect from each other.

  4. qrb4EMIinAPRCbEe
    • Close the laptop and orient it on its side (clamshell hinge up), carefully holding it steady to ensure its safety.

    • Insert the opening tool inside of the hinge and pry with an even amount of force to disconnect the keyboard panel from the fan grate.

  5. rmeCejKTeQH2yiRk
    rmeCejKTeQH2yiRk
    xFlxk3EJXQfbC5nF
    MCQkk6sweI6tco6U
    • Reorient the laptop in an upright fashion and open the clamshell.

    • If needed, continue to pry the silver keyboard panel from the rest of the hardware with minimal force.

    • Slowly slide the silver keyboard panel towards you while lifting gently to separate the halves.

    • The panel is still connected by a series of delicate connectors glued to the mainframe, so do not pull the panel right off.

  6. QX21LJPlFkiahTXQ
    QX21LJPlFkiahTXQ
    BlLNoTB1RGOYfrFq
    JyAJK4FScD3W51ZJ
    • While keeping silver keyboard panel hovering above the laptop, locate the touchpad connector ribbon attached to both the silver panel and motherboard.

    • With your finger, flip up the white clasp that holds the connector, releasing the connector ribbon.

    • Unpeel the connector ribbon from its position on the motherboard.

  7. UvKn5Ct2ET3xuniO
    UvKn5Ct2ET3xuniO
    bxON5l26DWnCn2yB
    ieSxChsXvsWFZmp3
    • With your finger, flip up the white clasp that connects the larger keyboard connector to the motherboard, releasing the connector ribbon.

    • Gently pull the connector ribbon from the clasp.

  8. JMtlUBW1cTUBvQ3Q
    • Lift the keyboard panel up and away from the CPU, completely revealing the mainframe.

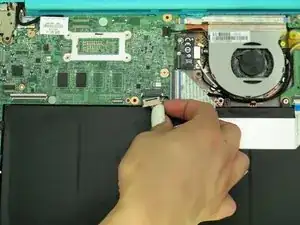

  9. XZtcu1EQT1nt521n
    • With the internal hardware exposed, disconnect the battery cable from the motherboard.

    • If tightly fastened, gently wiggle the plug out of the jack.

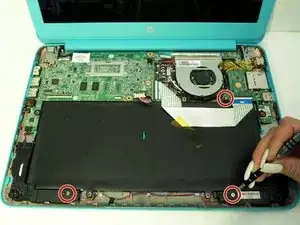

  10. UncOcMbG4dGUwk4I
    • Remove the three 4mm screws around the perimeter of the battery pack with a Phillips Head 1 screwdriver.

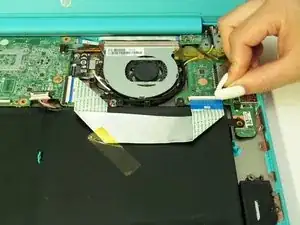

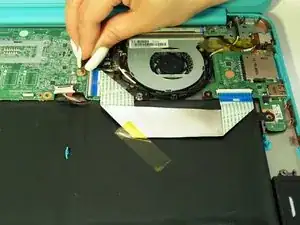

  11. MZY5ixMdu1A1SdBU
    MZY5ixMdu1A1SdBU
    qnHmcKiWexuiUeMV
    VKkeYYowGVgGIyZn
    • Flip up the two white clasps that hold the connector ribbon to the battery to release the ribbon.

    • Remove the 'motherboard to USB board' connector ribbon from its place.

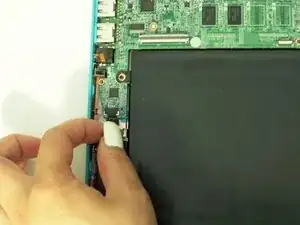

  12. KpmBtNAfGihg5PJt
    • Detach the speaker cable from its fastener on the motherboard by pulling it out with your fingers or using a spudger.

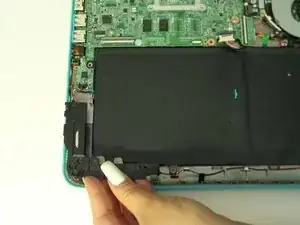

  13. H5cQeC4QfiUBkZA5
    H5cQeC4QfiUBkZA5
    iJGwlDkZ2wHn6ZhS
    65tRc6NIJRqLFYpa
    • Using your fingers, gently pry out the two L-shaped speaker panels from between the external casing and battery pack.

    • Be sure to apply an evenly distributed upwards force on the speaker when lifting it out

    • Both speaker components (located adjacent to each other) will remain connected by a red cable after removal

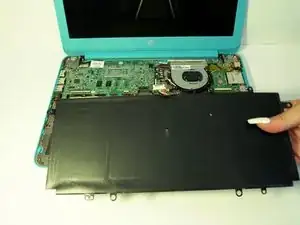

  14. jPKERtDjvAibsZkU
    • Lift out battery pack.

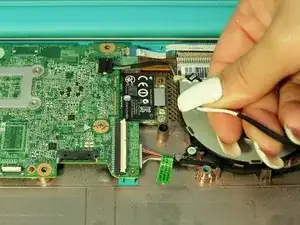

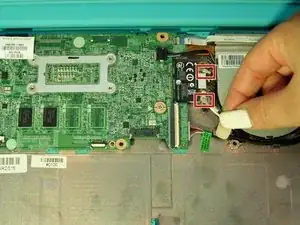

  15. DLUpKAQFDYgVD3ko
    DLUpKAQFDYgVD3ko
    lV5IRRTIsfts4krC
    • Remove the two Wi-Fi antenna cables that are attached to the Wi-Fi card by pulling them up.

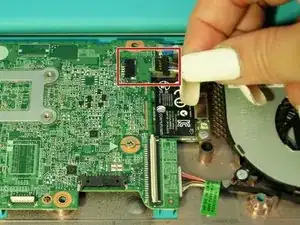

  16. F3o5ROVqYZmmMTSO
    • Using your fingers, pull the cooling fan cable from its fastener on the motherboard

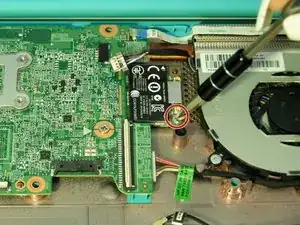

  17. BhRwcSYJAUCGDeEY
    • Remove the 3mm screw that holds down the Wifi mini-PCI card using a Phillips Head 1 driver.

  18. xHxHOiSx2VPrCpXX
    • Remove the three 3mm screws that hold the cooling fan in place using a Phillips Head 1 driver.

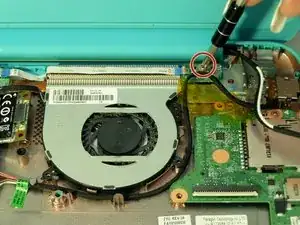

  19. wnTgtE5u4KQUALoS
    • In the upper right hand corner of the device, remove the 6mm screw holding the PCB board in place by using a Phillips Head 1.

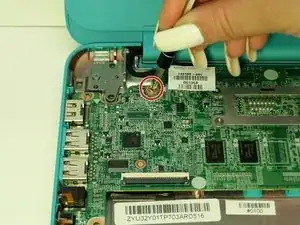

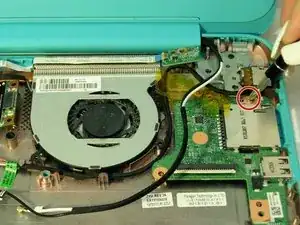

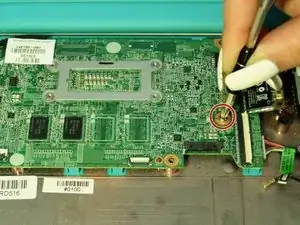

  20. MbPTOOHM63GU6Wj6
    MbPTOOHM63GU6Wj6
    OVrAFkxLBRhiYfI4
    6F4IwV42wTQGXrcy
    • Remove the three 3mm screws from the surface of the motherboard using a Phillips Head 1.

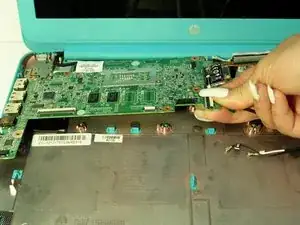

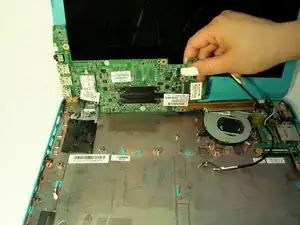

  21. pcA1bMW1BiYumdD2
    pcA1bMW1BiYumdD2
    OGao4C2AnSCF3cXf
    • Carefully lift the motherboard up towards the screen as if it was hinged on one side.

    • To prevent possible scratching, cover the screen with a cloth.

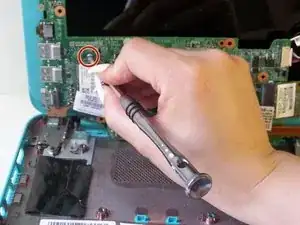

  22. cmPkK6qKykonrPGv
    • Remove the 3mm screw located directly above the NGFF SSD card using a Phillips Head 1 driver.

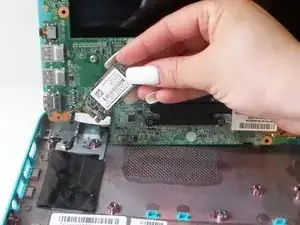

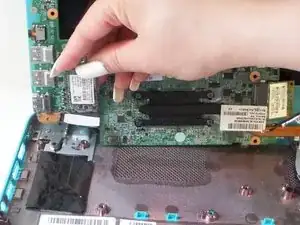

  23. HcEH64mP5YemNLEN
    HcEH64mP5YemNLEN
    bKGWAlFGAUfxRnF5
    • Pull the SSD card up and out using your fingers.

    • Do not use tweezers or any other metal tool to extract the card, as it is fragile.

Abschluss

To reassemble your device, follow these instructions in reverse order.
