HP Pavilion 14-b120dx CPU Cooling Fan Replacement

Geschrieben von: Erin Lavalla

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 Minuten

Einleitung

If you're experiencing frequent overheating, your fan may need replacing. Use this guide to replace your laptop's fan.

Power down the laptop and detach the charging cord (failure to do so can result in electrical shock).

Flip the laptop upside down so that the bottom is facing you.
Push the slide on the right toward the center of the laptop, releasing the battery latch.
Lift the battery up and away from the laptop.

Insert the plastic opening tool between the keyboard and the palm rest.
Pry upwards until the keyboard section detaches from the laptop.
Repeat this around the edge of the entire keyboard.
Sections will make loud snapping noises as they detach from the palm rest - this is normal.

there are 2 screws on the back that are marked with a mini keyboard. these have to be removed before lifting the keyboard

Insert the opening tool at the back of the keyboard, not the front!

Lift the keyboard slowly up until the connecting cable is exposed.
Carefully lift the flap on the ZIF connector using a fingernail or plastic opening tool. This will release the cable.
Detach the cable.

Lift the back of the keyboard, not the front!

Unscrew the 10 6.0 mm screws under the keyboard housing with a Philips #0 head screwdriver.

2 of these marked locations are the holes for the keyboard screws

Insert the plastic opening tool into the seam between the palm rest and the laptop.
Pry upwards until the palm rest separates from the laptop.
Repeat this process around the entire computer.
These steps will be similar to the ones you took to remove the keyboard. Again, you will hear snapping noises.

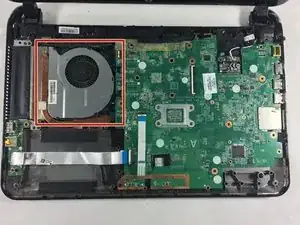

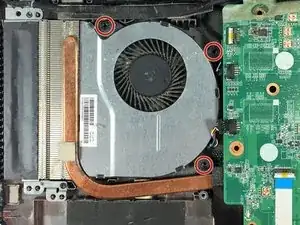

Locate the fan in the upper left hand corner of the laptop.

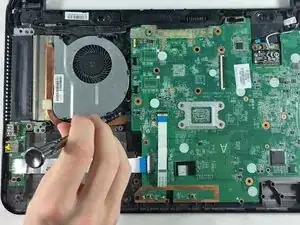

Remove the cable connecting the fan to the motherboard.

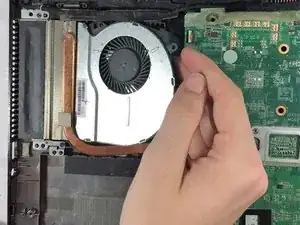

Be sure not to damage the motherboard or the connecting cable. Carefully apply force to remove the cable.
