HP Pavilion 14-bk061st Battery Replacement

Geschrieben von: Helen Yang
  • Kommentare: 3
HP Pavilion 14-bk061st Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will teach you how to remove and attach the battery in the HP Pavilion 14-bk061st. The battery supplies the power to the device even when the charger is not attached. Batteries are usually rechargeable.

As a note before starting this guide: check the battery for any defects as it can overheat and start an explosion if it is damaged. Check the troubleshooting page to see if the issue can be solved without having to open up the computer.

Remember to power off the computer, as well as disconnect all external components that are plugged into it.

  1. FUQCpak5YBTDlmmG
    FUQCpak5YBTDlmmG
    FFZg35mG1p6HjImp

    • Remove the three 5.7 JIS #1 screws from the bottom of the laptop.

    • Remove the two 6.7mm JIS #1 screws from underneath the feet of the laptop close to the exhaust vent.

  2. 4ISZGc3UuVXcGkce

    • Unclip the back plate using a plastic opening tool.

  3. KllZRJQitapvMEbR

    • Carefully remove the back plate from the laptop.

  4. T2GDmwfwVDM4CVX6

    • Remove the five 5mm Phillips #1 screws surrounding the battery.

  5. UU3MqnCnYcjAlffk

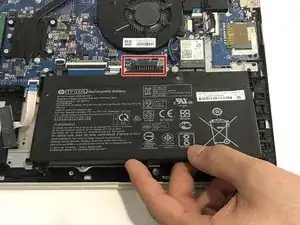

    • Lift the battery up and away from the battery pins.

    Helpful insight.

    Thanks

    Bugal Wena Close -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Helen Yang

Mitglied seit: 22/01/20

145 Reputation

2 Kommentare

I can’t remove the backplate because I can’t find the clips. How do I get the backplate off after unscrewing the screws? (I am using an ifixit pro tech toolkit.)

DwertlePlayz -

We were able to get the backplate unclipped by starting between the hinges and sliding the tool along until the opposite end. Then we went back to the hinges and worked our way around in the opposite direction and the plate came right off without any fuss.
