HP Pavilion 14-bk061st Motherboard Replacement

Geschrieben von: Mehrab Daemi
  • Kommentare: 1
HP Pavilion 14-bk061st Motherboard Replacement

Schwierigkeitsgrad

Easy

Schritte

15

Zeitaufwand

3 Minuten

Einleitung

Using this guide, you can replace the motherboard in your HP Pavilion 14-bk061st laptop.

The motherboard is the central connection between all the components of a computer. A faulty motherboard can lead to the whole computer failing so it is important to keep good care of all the components in your PC.

  1. FUQCpak5YBTDlmmG
    FUQCpak5YBTDlmmG
    FFZg35mG1p6HjImp

    • Remove the three 5.7 JIS #1 screws from the bottom of the laptop.

    • Remove the two 6.7mm JIS #1 screws from underneath the feet of the laptop close to the exhaust vent.

  2. 4ISZGc3UuVXcGkce

    • Unclip the back plate using a plastic opening tool.

  3. KllZRJQitapvMEbR

    • Carefully remove the back plate from the laptop.

  4. msfWn2cYYAgKfnUI

    • Use the hook end of the Halberd spudger to pull back the clamps holding the card in place.

    • Take care when pulling the second clamp as the card has a tendency to jump out.

  5. qOZVBbEh1aTRwfZe

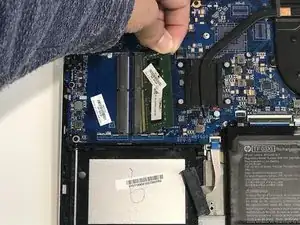

    • Remove the card by pulling it up and away from the slot.

  6. JpBDYHYUqEKMl2Gm
    JpBDYHYUqEKMl2Gm
    WQsENqXfcJM5XLcM

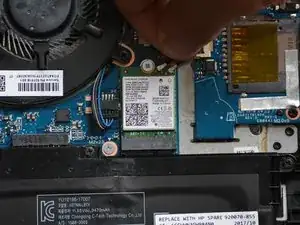

    • Disconnect the two Wi-Fi and Bluetooth antenna wires by gently pulling them away from the board.

  7. kNu2TXnQcw4BJaEo

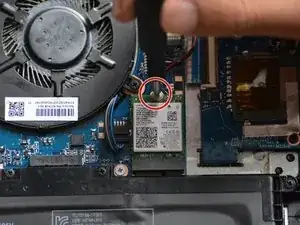

    • Remove the JIS #1 screw from the WLAN card.

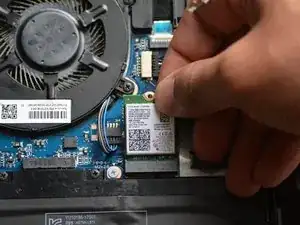

  8. RJHVQYwxlFZvYtIy

    • Remove the card by pulling it away from the slot.

    Is it possible to put a new WLAN card with better wifi and bluetooth? Or does it need to be the same WLAN card?

    I want to upgrade from bluetooth 4.2 to 5.0.

    Stjepan Ramljak -

  9. I1SgpTKvkDE2XaOp
    I1SgpTKvkDE2XaOp
    RHACGDQGE22R3Qyx

    • Remove the four 2.9mm JIS #1 screws from each of the four corners of the fan.

  10. 2PlenhO5EhOPwrTf

    • Carefully grab the heat sink from any side and lift straight up while trying to avoid touching other components.

    • Avoid bending the heat-pipe at all costs to keep it functional.

  11. GKikburaGHDkQMaK

    • Remove the three 2.9mm JIS #1 screws surrounding the fan.

  12. BdvXUBGdwY2qTLcM
    BdvXUBGdwY2qTLcM
    iHBegABKDdttTJvy

    • Carefully lift up the fan without tugging out the attached wire, and lay it on the motherboard.

    • Use tweezers to gently unplug the power connector wire.

    • Remove the fan from the laptop.

  13. OKWKDXBEshqXS6k5

    • Remove the seven screws from the motherboard using a JIS #1 screwdriver.

  14. Af15ZOQJVmws4hZh
    Af15ZOQJVmws4hZh
    L54UXXG2ETSppLSb

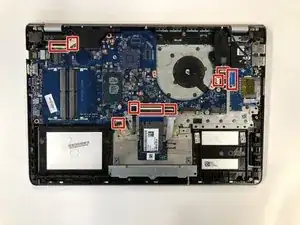

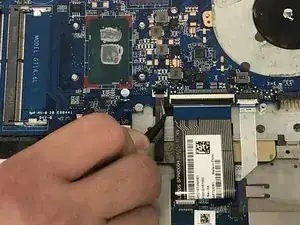

    • Remove the nine cables from the motherboard by carefully lifting the black tab on each connector.

  15. rBTSDqNSkM5vqvNo

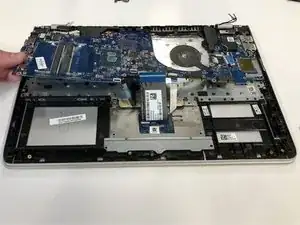

    • Carefully remove the motherboard from the casing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
