HP Pavilion 14-bk061st Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 - 10 Minuten

Einleitung

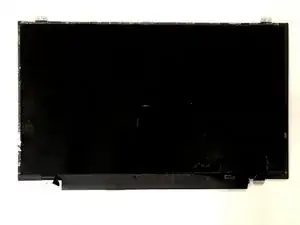

Using this guide will help you in replacing the screen in your HP Pavilion 14-bk061st.

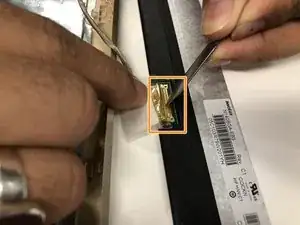

The screen is an important part of all laptops. Some may consider replacing the screen once issues arise during use such as cracked screens after a fall or vertical or horizontal lines sometimes caused by a loose or frayed video cable.

Werkzeuge

Schritt 1

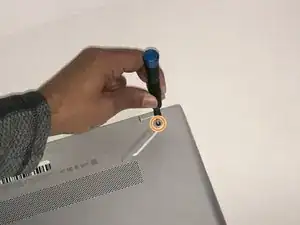

Remove the three 5.7 JIS #1 screws from the bottom of the laptop.
Remove the two 6.7mm JIS #1 screws from underneath the feet of the laptop close to the exhaust vent.

Schritt 2

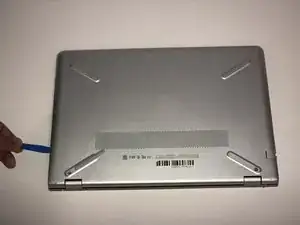

Unclip the back plate using a plastic opening tool.

Schritt 3

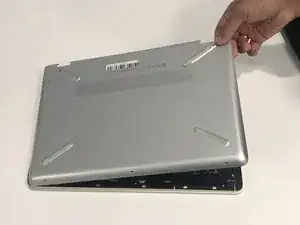

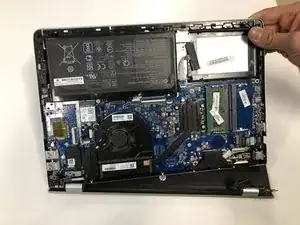

Carefully remove the back plate from the laptop.

Schritt 4

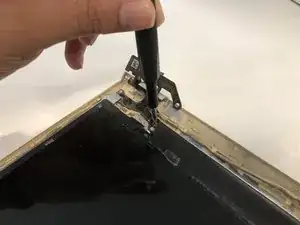

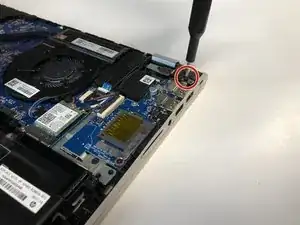

Remove the five JIS #1 screws that attach the hinges of the screen to the casing of the laptop.

Schritt 5

Carefully lift the hinges from the encasing and lift the bottom half of the laptop away from the screen.

Schritt 6

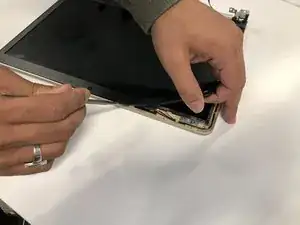

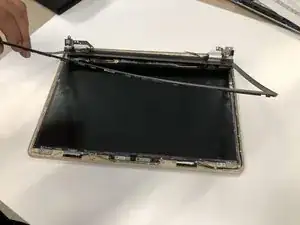

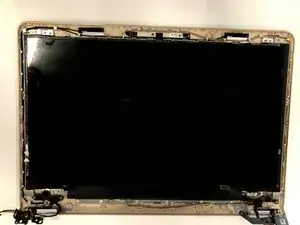

Use the metal spudger to carefully pry off the plastic encasing around the monitor.
Use the outside of the screen to remove the plastic encasing to avoid damaging the screen itself.
