HP Pavilion 14-c015dx Chromebook Headphone Jack Replacement

Geschrieben von: Joe Kennedy
  • Kommentare: 1
HP Pavilion 14-c015dx Chromebook Headphone Jack Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

15 Minuten

Einleitung

This guide will walk you through the steps to replace the headphone jack if it is broken or not working correctly.

  1. if3SeyvlCHlkgxrl

    • Remove the two 7mm screws with a Phillips Head #1 Screwdriver.

    • These screws may not completely come out of the laptop, so just make sure that you have loosened them all of the way.

  2. FR4bTwDApnxAZXfo
    FR4bTwDApnxAZXfo
    DHdH2BRM5OHS3SJj

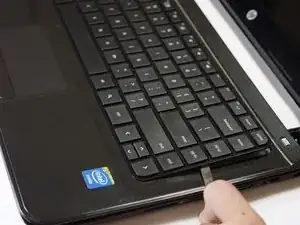

    • Starting from the left side, use the metal spudger to pry off the keyboard.

    • Run the spudger across the edges until all plastic clips are popped up and the keyboard is free from the palm rest assembly.

    • Do not pull the keyboard away from the computer while popping the keyboard off, there is a connector cable in the bottom center of the keyboard that will be disconnected in the next step.

  3. vTgNgpwhSZHNerdZ
    vTgNgpwhSZHNerdZ
    6BpfBciiPfo25WHF
    QHUyKLWmGdngaxGV

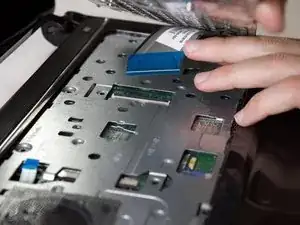

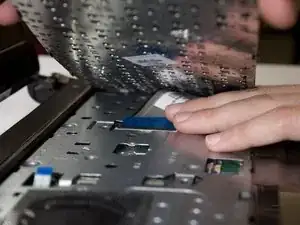

    • Detach the circuit connector by flipping up the black flap upwards and gently pulling the connector out by pulling up on the blue release tab.

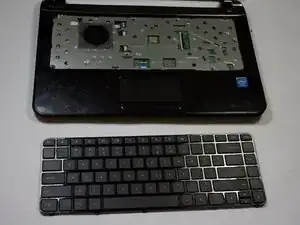

    • Lift the keyboard away from the computer once the connector is detached.

  4. GCAUnx3VR1FD5LW4
    GCAUnx3VR1FD5LW4
    MEtKPRQgfmxmflmJ

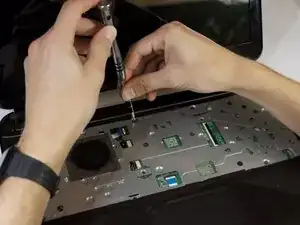

    • Locate these seven 5mm circled screws on the panel that was under the keyboard.

    • Remove the screws with a Phillips Head #1 Screwdriver.

  5. y2y1lYNkQeyUjui2
    y2y1lYNkQeyUjui2
    2yDRpggtncZf3AoZ
    x5yiMwnsHHDk1Q3H

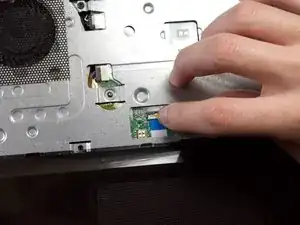

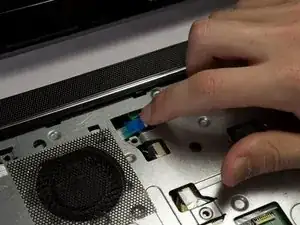

    • Locate the ribbon cable located at the top of the keyboard area.

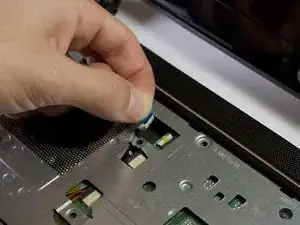

    • At the cable base, lift the white tab with a fingernail and then gently pull on the blue tab of the cable to release it.

  6. CshRJUyh1bxPoMy5
    CshRJUyh1bxPoMy5
    JXVMfUCxiLeOm1LN
    SiLpe3VrfvrZmGUK

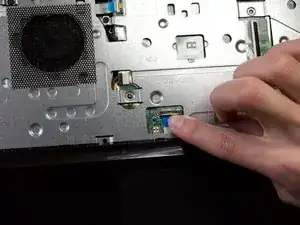

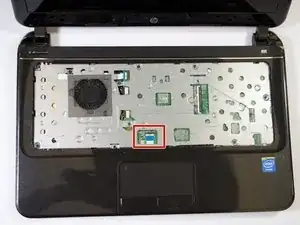

    • Locate the ribbon cable just above the touchpad.

    • Disconnect the cable by lifting the white tab at the base of the cable with a fingernail and then pulling on the blue section of the cable.

  7. VaMtR61fyOdUdmMS
    VaMtR61fyOdUdmMS
    YfIV2UUaYI1m5rGW

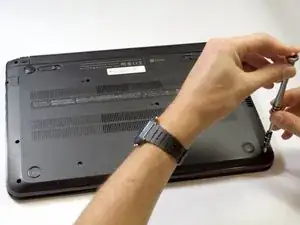

    • Locate these eight 7mm screws on the bottom of the laptop.

    • Remove using a Philips Head #1 Screwdriver.

  8. 6lvUUnIxsWfUQho5

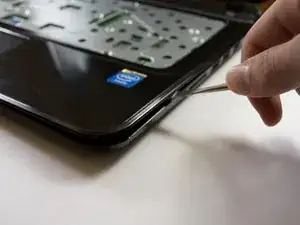

    • Flip the computer back over, and using the metal spudger, remove the plastic palm rest assembly.

    • Go little by little around the edge and carefully pry off the plastic palm rest assembly.

  9. tCfu1PTQnIkhlWXO
    tCfu1PTQnIkhlWXO
    k6wl4W5SjTempC1s
    CDROEayyfsXlLDsw

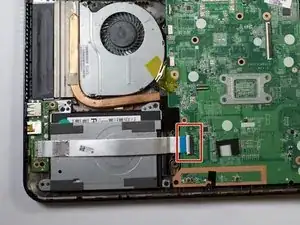

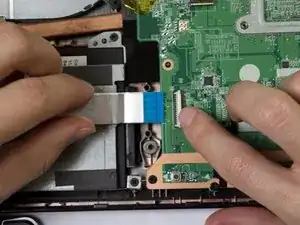

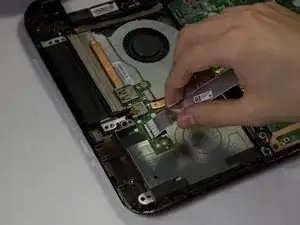

    • Flip the plastic flap to unattach the metal strip located at the bottom left corner.

    • The headphone jack is attached to this cable.

  10. JWYqxPSPRCtvKFKT
    JWYqxPSPRCtvKFKT
    BxRCrZMme4kDf3GJ
    35sd3eULTFgFklNn

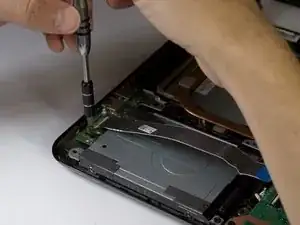

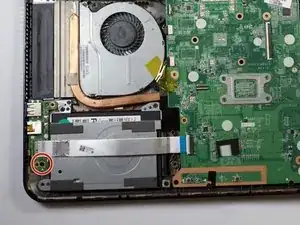

    • Remove the circled screw located at the bottom left using a Phillips #1 Screwdriver.

    • You can now disconnect the headphone jack piece.

Abschluss

To reassemble your device, follow these instructions in reverse order.
