This guide will show you the steps to replace the Solid State Hard Drive.
-
-

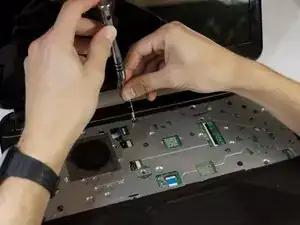

Starting from the left side, use the metal spudger to pry off the keyboard.
-
Run the spudger across the edges until all plastic clips are popped up and the keyboard is free from the palm rest assembly.
-
-
-
Detach the circuit connector by flipping up the black flap upwards and gently pulling the connector out by pulling up on the blue release tab.
-
Lift the keyboard away from the computer once the connector is detached.
-
-
-
Locate these seven 5mm circled screws on the panel that was under the keyboard.
-
Remove the screws with a Phillips Head #1 Screwdriver.
-
-
-

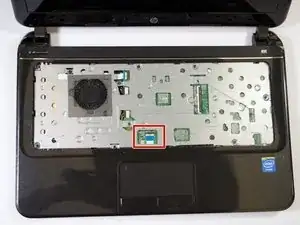

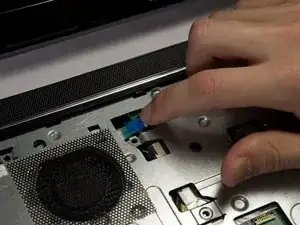

Locate the ribbon cable near the top of the keyboard area.
-

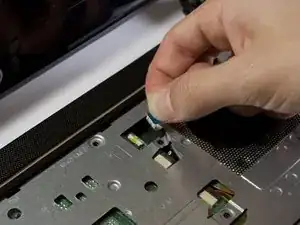

At the cable base, lift the white tab with a fingernail and then gently pull on the blue tab of the cable to release it.
-
-
-

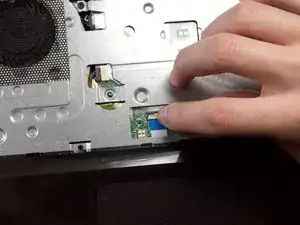

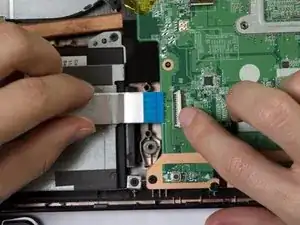

Locate the ribbon cable just above the touchpad.
-
Disconnect the cable by lifting the white tab at the base of the cable with a fingernail and then pulling on the blue section of the cable.
-
-
-

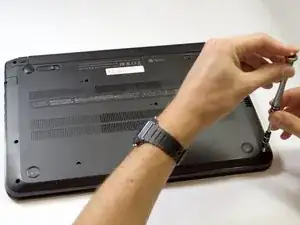

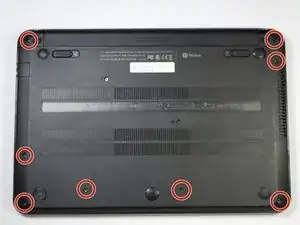

Locate these eight 7mm screws on the bottom of the laptop.
-
Remove using a Philips Head #1 screwdriver.
-
-
-

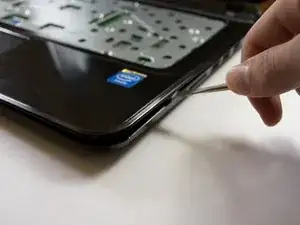

Flip the computer back over, and using the metal spudger, remove the plastic palm rest assembly.
-
Go little by little around the edge and carefully pry off the plastic palm rest assembly.
-
-
-

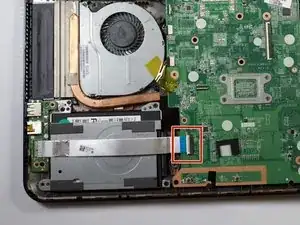

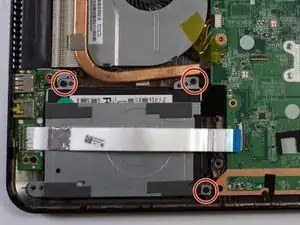

Locate the plastic flap holding the metal strip in place.
-

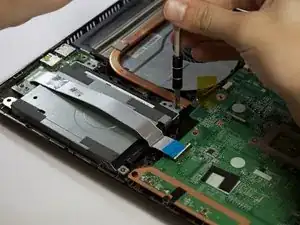

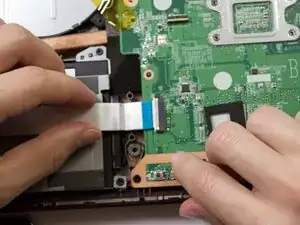

Disconnect the cable by lifting the white tab at the base of the cable with a fingernail and then gently pulling on the blue section of the cable.
-
-
-

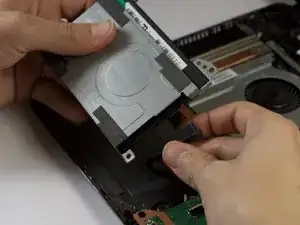

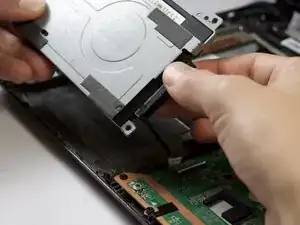

Lift up the hard drive slightly and remove the black cable strip connecting the hard drive to the computer
-
To reassemble your device, follow these instructions in reverse order.
