HP Pavilion 14-n018us RAM Replacement

Geschrieben von: Michael Hollister
  • Kommentare: 0
HP Pavilion 14-n018us RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

15 Minuten

Einleitung

This guide explains how to replace the memory module (also known as RAM) in an HP Pavilion 14-n018us.

The memory module is a printed circuit board on which memory integrated circuits are mounted. It allows the computer to temporarily store data that needs to be accessed quickly. If your RAM starts going bad, it will result in frequent crashes, slow performance, or errors occurring during startup. If you are experiencing any problems, or are just interested in upgrading your RAM for increased performance, use this guide to replace your RAM.

  1. q6A6RtdwBXOGkQXx
    q6A6RtdwBXOGkQXx
    2tfsft1U4XwiipgS

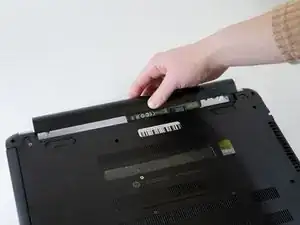

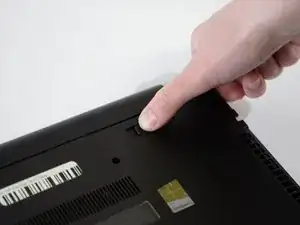

    • Prior to removing the base plate, the battery must be removed.

    • Press the two tabs on the back of the laptop inward to release the battery.

    • Pull the battery straight out slowly and firmly.

  2. t3nZNDTkUH1WTxeP
    t3nZNDTkUH1WTxeP
    AtjBxhCqbCMoZFB1

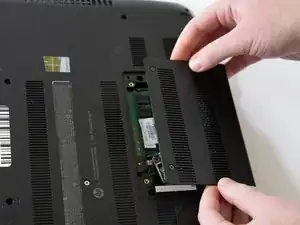

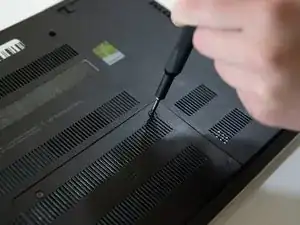

    • Using a Phillips #00 screwdriver, unscrew the two 6.98 mm captive screws on the black cover on the bottom of the laptop.

    • Remove the cover.

  3. Jmn5FRtiC2K6oha4
    Jmn5FRtiC2K6oha4
    RtTKgwSxlaexLUID
    MqbvDEETNMNsmaYW

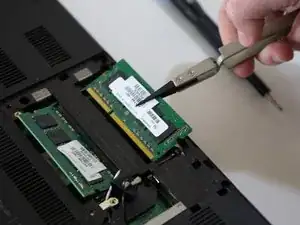

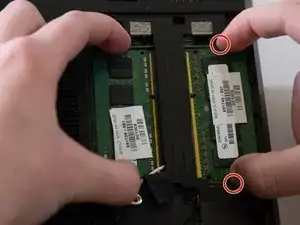

    • Push outwards on the two retaining clips on either side of each RAM chip to release the chips.

    • Use a pair of ESD-safe tweezers to gently slide the two memory modules out from the assembly.

    • If you don't have a suitable pair of tweezers, it's okay to use your fingers to remove the RAM chips. Just be sure to handle the chips by their edges, as skin contact on the faces of the chips can damage them.

Abschluss

To reassemble your device, follow these instructions in reverse order.
