Einleitung
The screen is a delicate part of the Chromebook, and can be easily cracked or damaged. This guide will show you how to replace a HP Pavilion 14-q020nr Chromebook screen.
Werkzeuge
-
-
With the laptop facing you, open the clamshell. Be sure to turn the power off using a long press before beginning.
-

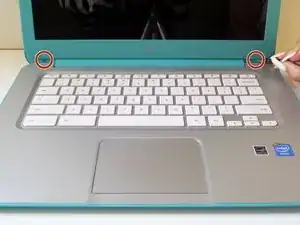

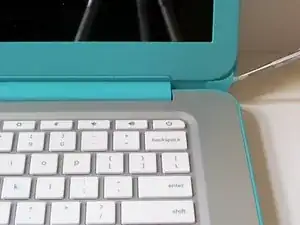

Remove the screw covers on both sides of the screen bezel by sliding a metal spudger into the crevice and gently peeling the cover away.
-
-
-

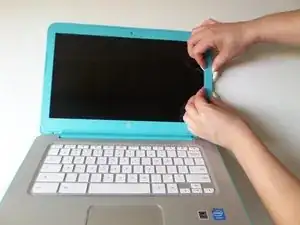

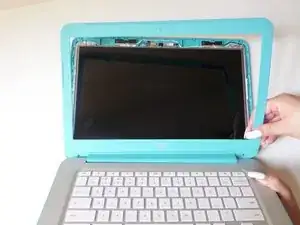

Snap off the screen bezel by prying with your fingers in between the bezel and the screen.
-

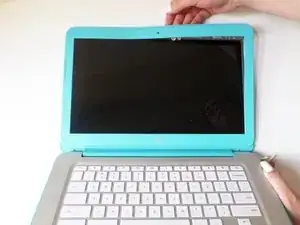

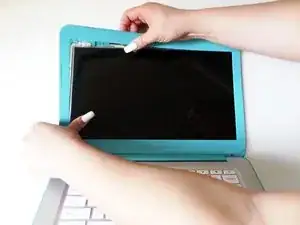

Continue around the screen, gently prying and lifting.
-
-
-

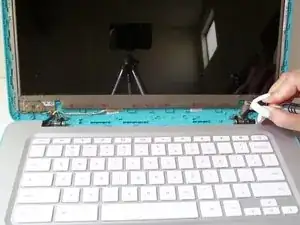

Carefully loosen the bottom bezel. Eventually it will snap free from the rest of the clamshell.
-
Pull hinge up and forward to detach it from the Chromebook. The bezel and hinge cover will remain attached.
-
-
-

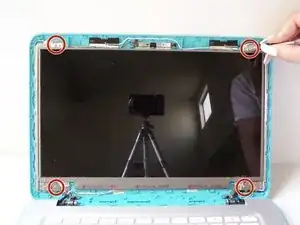

Remove the four 4mm screws within the metal tabs on the top and bottom of the screen using a Phillips Head 1 screwdriver.
-
-
-

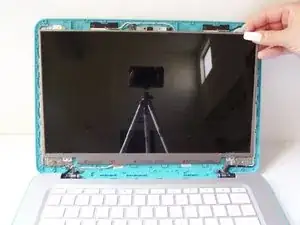

Gently pry the metal tabs off of the screen assembly while holding the screen to unlock them.
-

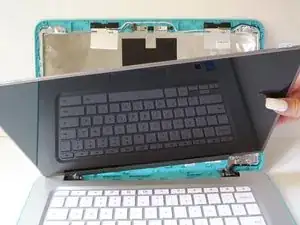

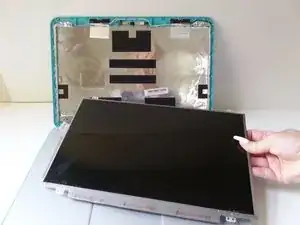

Grab the screen by its unlocked tabs and tilt it down and away from the screen assembly, laying it down.
-
-
-

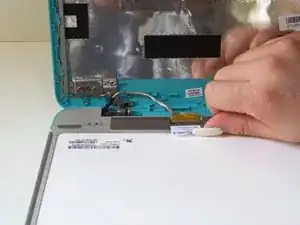

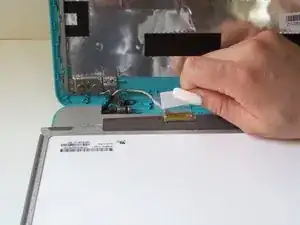

Slide the connector out from its plug on the screen using your fingers to completely disconnect the screen.
-

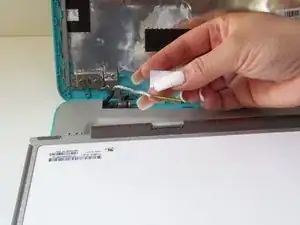

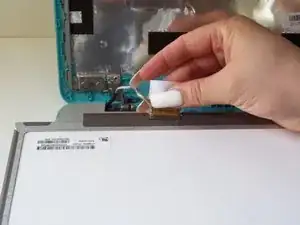

Using your fingers, slide the connector out from its plug attached to the screen to completely disconnect the old screen panel
-
To reassemble your device, follow these instructions in reverse order.
