HP Pavilion 15-AB153NR Hard Drive Replacement

Geschrieben von: Nicole Vachon
  • Kommentare: 0
HP Pavilion 15-AB153NR Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

17

Zeitaufwand

15 Minuten

Einleitung

This replacement will require the use of prying tools and screwdrivers. It can completed with moderate difficulty and within a few minutes. You will need a clear work surface. Replacing the hard drive can often solve internal computer problems such as a slow start up.

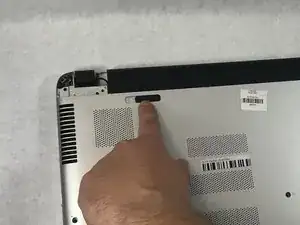

  1. yPgrmVdhoS2csD5X

    • Ensure computer is turned off and unplugged.

    • Slide the battery lock latch on the left to unlock. Slide from left to right to unlock.

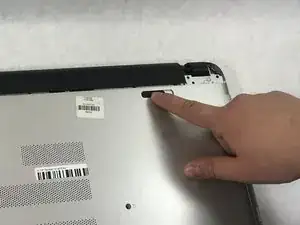

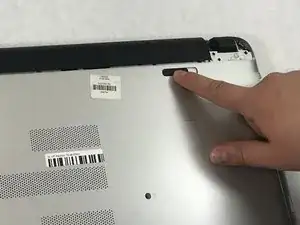

  2. KvIioudWPTmiyxpZ
    KvIioudWPTmiyxpZ
    FPr4IvpAnZChU1oy

    • Slide the battery release latch on the right with continuous force from right to left.

    • Once battery pops, you may release latch.

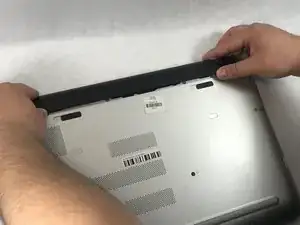

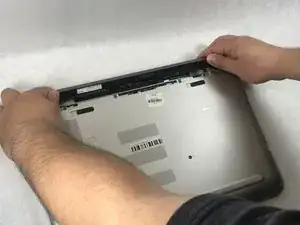

  3. mvt5CNTLcdtEKVhR
    mvt5CNTLcdtEKVhR
    YXsJFgTMEECBu2Sk

    • Grab the battery, rotating upwards and away from you. This will remove the battery.

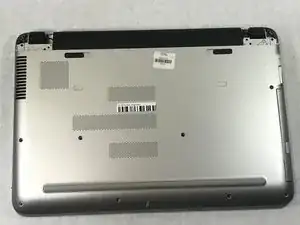

  4. 3pAeaPSSXYbSPxS5

    • Make sure computer is powered off and unplugged.

    • Flip computer over so that the bottom is facing the ceiling and the hinges are farthest from you.

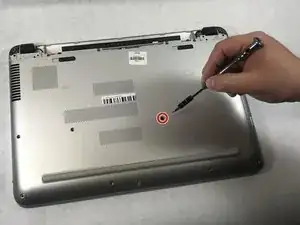

  5. cDwZlEqAaHf53Fwk

    • Using the Phillips #000 screwdriver, remove the 7 mm screw on the middle right.

    • There is an icon that looks like a CD stamped into the back panel near this screw.

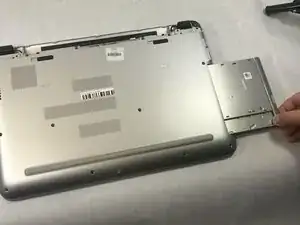

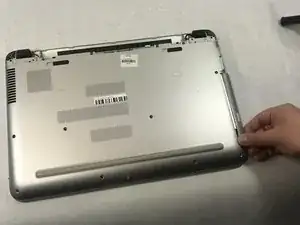

  6. wnqwZuRBWJydwXo3
    wnqwZuRBWJydwXo3
    QRIqweaYj2rUV4LK

    • Slide the drive out from the right side of the device.

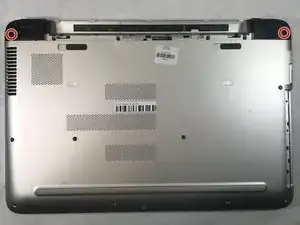

  7. 5N64pQ1WrV2SxNcM

    • Using the Phillips #1 screwdriver, remove the two 12mm screws located on the hinge covers.

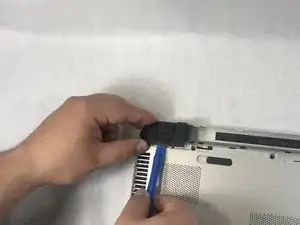

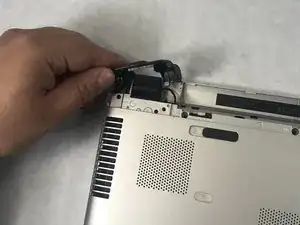

  8. nTBbUXRyTplOZM23
    nTBbUXRyTplOZM23
    1Ai2UKPA5qqOWWfE

    • Lift the corner covers off of the computer using a prying tool.

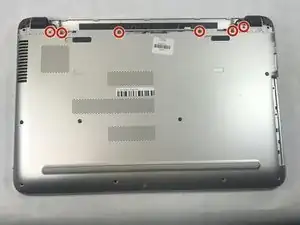

  9. GlxZyOeWngJNiZEj

    • Remove the six 6.5mm screws using a Phillips #1 screwdriver that are located near the top of the laptop.

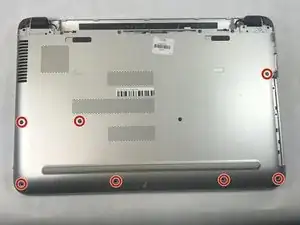

  10. 2o5AZU5kHY1eQrXD

    • Remove the remaining seven 6.5mm screws using a Phillips #1 screwdriver that are securing the back cover.

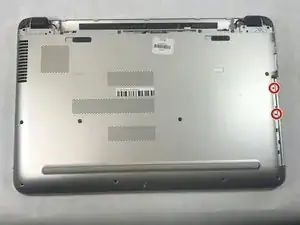

  11. j2bqEIqQZcHO2YjE

    • Use the Phillips #0 screwdriver to remove the two 2mm screws.

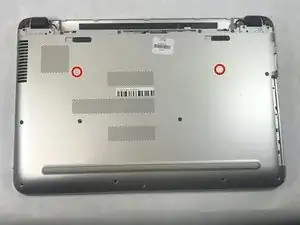

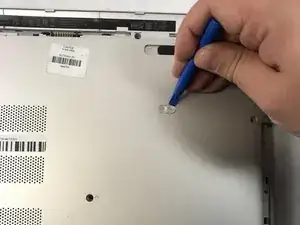

  12. sW2GFaYuOsUH6dDA
    sW2GFaYuOsUH6dDA
    kOeKZ5ZlTOdkIETh
    k3bkTsWEFw5PEPAJ

    • Use prying tools to pry the covers off of the screwholes.

    • Using the Phillips #1 screwdriver, remove the two 6.5mm screws.

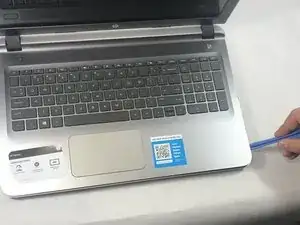

  13. S1SbIvYTERo4xWbB

    • Be mindful of sharp edges on computer while using prying tools.

    • Flip computer over and open so that the screen is facing you.

    • Starting at the bottom right corner, insert the prying tool and lift upwards to loosen the back panel.

    • Continue down all sides and corners of the device.

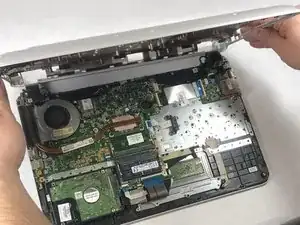

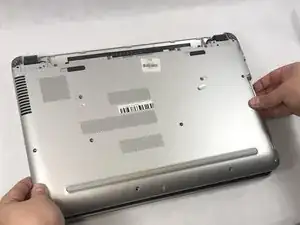

  14. ixgHvTgVHWEh5AEi
    ixgHvTgVHWEh5AEi
    xkWZi6tdnEDNdCqb

    • Flip laptop back over so that the bottom is facing up

    • After all sides are loosened, remove the back panel from the device.

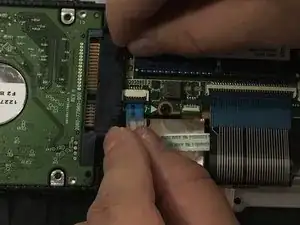

  15. DsKP4UKrxSpvMF2n
    DsKP4UKrxSpvMF2n
    5kYELbWlJv1XLXLn

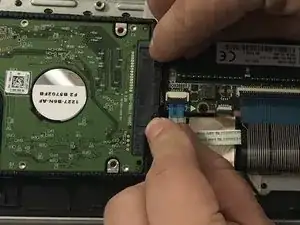

    • Disconnect the hard drive cable from the motherboard by sliding it left to right.

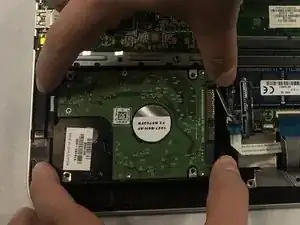

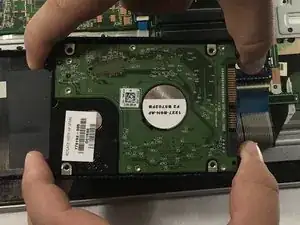

  16. ZGlW1yAcHhtKpoJj
    ZGlW1yAcHhtKpoJj
    qWdHEnmRqTTq1hiT

    • Lift the hard drive from the computer.

  17. BFeuAYDTEitgLOux
    BFeuAYDTEitgLOux
    wyfFL6OoUhUUSVSS

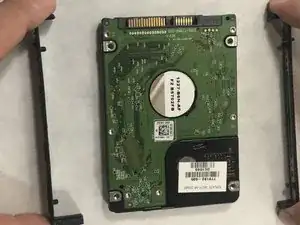

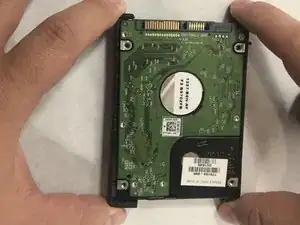

    • Pull the brackets away from each side of the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
