Einleitung

This is a simple and straight forward procedure to replace the CD-Drive on your device. If your CD-drive has failed and will no longer read discs, then following this guide will help you regain a functioning drive.

  1. qcRNhfdSO4DFjfRO
    qcRNhfdSO4DFjfRO
    lKiKdCbx3qHbhtHJ
    s22pasuMbdXRl3fu

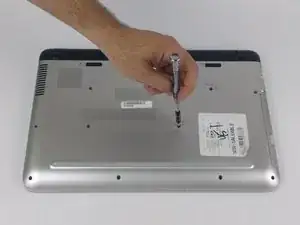

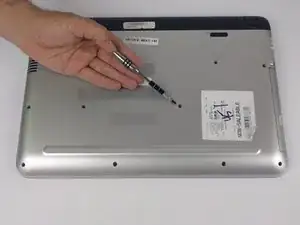

    • Locate the screw, will have a CD symbol next to it, and remove this 3.5 mm screw with a PH0 screw driver.

  2. QVZLY4BPF1cFwNta
    QVZLY4BPF1cFwNta
    O4TVoqe2l4D6X1kF
    rV1TghAJHYZqYSB6

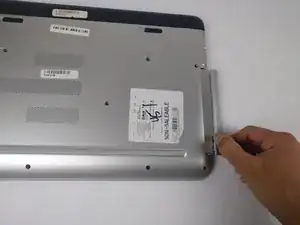

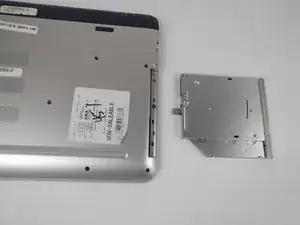

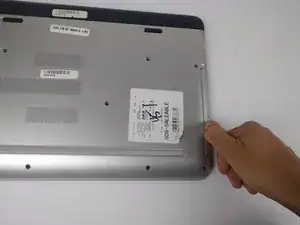

    • Using your finger nail or a plastic opening tool, pull out the drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
