HP Pavilion 15-au123cl Motherboard Replacement

Geschrieben von: Joseph Nicholson
  • Kommentare: 6
HP Pavilion 15-au123cl Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 35 Minuten

Einleitung

This guide will display how to replace the motherboard of the HP Pavilion 15-au123cl Laptop. The replacement is not hard, but will require the removal of the fan, network card, and battery beforehand.

  1. Euj2cVcBPVYlkZZm

    • Make sure the laptop is off and unplugged before starting.

    • Using the plastic opening tool, remove the top rubber feet on the back panel as it hides one of the screws we will be removing.

  2. WgOcKLKW4BFVLqlB
    WgOcKLKW4BFVLqlB
    Mq2brioZYROFNyqQ

    • Using a PH0 screwdriver, unscrew the ten 4.4mm Phillips head screws located on the back panel.

    Correction. Top two screen pivot screws are bigger than the 8, 4mm.

    Mitchell Culp II -

  3. OkZXAYGQrdQgsJcf
    OkZXAYGQrdQgsJcf
    htXQtxdINQHglCuK

    • Using the plastic opening tool, remove the back cover of the laptop.

    • It is recommended that you start with a corner and run the tool throughout the edges of the cover.

    • Be sure not to bend the cover by applying too much force.

    What? I think you have have neglected to mention the DVD drawer. I believe it needs to be pulled out after removing the center screw and before removing the cover.

    Dan Enslow -

    Yes, best to remove the drawer as recommended. Also there are 3 screws holding the battery, not 2.

    Lastly, pay careful attention to the orientation photo when removing the back.

    I did not have the plastic tool but used a small Teflon type kitchen spatula and it did the trick. Do not use a metal screw driver or other such tool.

    Edward Yandek -

  4. yierYLrWBSIGIgJU
    yierYLrWBSIGIgJU
    eqNo5E3Y6tXrIGiT

    • Using a PH0 screwdriver, unscrew the two 3.8mm PH0 Phillips head screws that hold the battery in place.

    there is a third screw on bottom left of battery (in picture above)

    Paul Behrman -

  5. ewLvjaoTr2aAAHJv
    ewLvjaoTr2aAAHJv
    oVhDkUxkyRwRPTUk
    4CR12GFGYhaRmCIv

    • Carefully disconnect the cable connecting the top of the battery and remove the battery.

  6. QjKOXwK4LdHZrhBP
    QjKOXwK4LdHZrhBP
    QFAI6xFFbMkrgsF6
    WvcBGy4W6KXo4hKU

    • The network card is located at the top left corner of the motherboard.

    • Unscrew the 4.4mm PH0 Phillips screw at the top of the network card.

  7. X6yZhbfarnw6D5La
    X6yZhbfarnw6D5La
    IDRJgdiVItPLQtvR
    VZyJIGtGLsSY2TxP

    • Using the spudger, remove the two gold pins at the top of the network card.

    • It is recommended to gently apply a vertical force upward with the spudger.

  8. rhCXJHfUdU1qB13j
    rhCXJHfUdU1qB13j
    cidqQoHqXKotFefK
    J5QcDxTHlNGtPKPU

    • Lift up the network card and remove it from the motherboard connector.

  9. GsJBQnSZ4WoumK1L

    • Firmly disconnect the fan from the motherboard.

    • Remove the three screws from the fan using a Philips #0 Screwdriver.

  10. X12vtIIrECqmAGha

    • Remove the six screws from the motherboard using a Philips #0 Screwdriver.

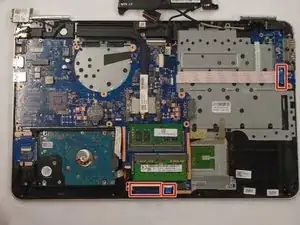

  11. TOP2rOlWNTISR6MH

    • Disconnect the ribbon cables from the motherboard.

    • Remove the motherboard.

    How much did it cost the mother board

    Nahom Gebre -

Abschluss

To reassemble your device, follow these instructions in reverse order.
