HP Pavilion 15-au123cl RAM Replacement

Geschrieben von: Mohammad Gardezi
  • Kommentare: 5
HP Pavilion 15-au123cl RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 20 Minuten

Einleitung

By following this guide, you will be able to change the RAM sticks on your laptop. You may wish to do this if you want to upgrade the maximum RAM available or if you are noticing slowdown on your computer. You will first remove the battery before you remove the RAM.

  1. Euj2cVcBPVYlkZZm

    • Make sure the laptop is off and unplugged before starting.

    • Using the plastic opening tool, remove the top rubber feet on the back panel as it hides one of the screws we will be removing.

  2. WgOcKLKW4BFVLqlB
    WgOcKLKW4BFVLqlB
    Mq2brioZYROFNyqQ

    • Using a PH0 screwdriver, unscrew the ten 4.4mm Phillips head screws located on the back panel.

    Correction. Top two screen pivot screws are bigger than the 8, 4mm.

    Mitchell Culp II -

  3. OkZXAYGQrdQgsJcf
    OkZXAYGQrdQgsJcf
    htXQtxdINQHglCuK

    • Using the plastic opening tool, remove the back cover of the laptop.

    • It is recommended that you start with a corner and run the tool throughout the edges of the cover.

    • Be sure not to bend the cover by applying too much force.

    What? I think you have have neglected to mention the DVD drawer. I believe it needs to be pulled out after removing the center screw and before removing the cover.

    Dan Enslow -

    Yes, best to remove the drawer as recommended. Also there are 3 screws holding the battery, not 2.

    Lastly, pay careful attention to the orientation photo when removing the back.

    I did not have the plastic tool but used a small Teflon type kitchen spatula and it did the trick. Do not use a metal screw driver or other such tool.

    Edward Yandek -

  4. yierYLrWBSIGIgJU
    yierYLrWBSIGIgJU
    eqNo5E3Y6tXrIGiT

    • Using a PH0 screwdriver, unscrew the two 3.8mm PH0 Phillips head screws that hold the battery in place.

    there is a third screw on bottom left of battery (in picture above)

    Paul Behrman -

  5. ewLvjaoTr2aAAHJv
    ewLvjaoTr2aAAHJv
    oVhDkUxkyRwRPTUk
    4CR12GFGYhaRmCIv

    • Carefully disconnect the cable connecting the top of the battery and remove the battery.

  6. TSSGhosUOtLLRT1R
    TSSGhosUOtLLRT1R
    BlB5ds3wNuTFI5ND

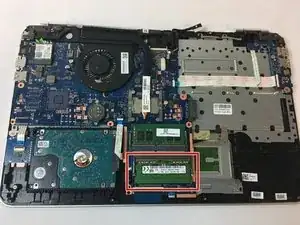

    • The RAM is located at the lower middle region of the motherboard.

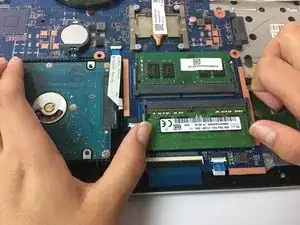

    • Push down on the clips on both sides of the RAM stick evenly.

    • The RAM will become loose and move upward when the clips are pushed.

  7. Zav6Twq2cPT42Xer

    • Pull the RAM stick out of the motherboard.

    • The same steps work on both sticks of RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
