Einleitung
Werkzeuge
-
-

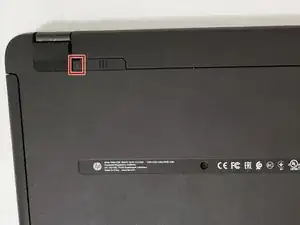

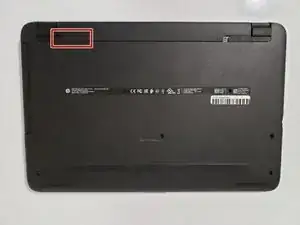

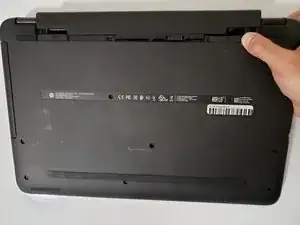

Find the battery lock latch on the top left corner.
-
Slide the latch to the right position.
-
-
-

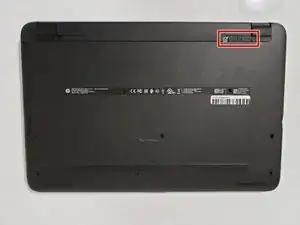

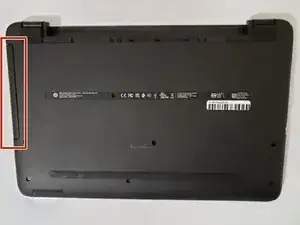

Find the battery release latch on the top right corner.
-
Slide and hold the latch towards the left to cover the battery icon.
-

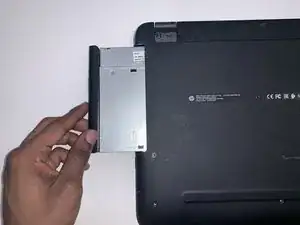

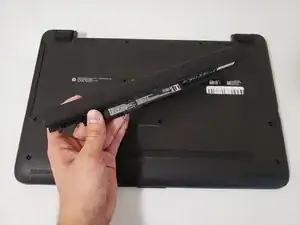

Carefully slide the battery outwards.
-
-
-

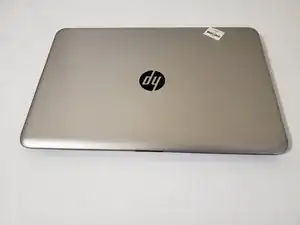

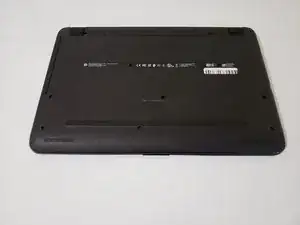

Turn the laptop upside down with the base of the laptop facing you.
-

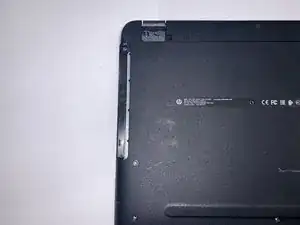

Remove the grippers positioned at the top right and top left of the laptop to access the two additional screws.
-
Use a 1.5mm Hex screwdriver to remove twelve 10mm screws.
-
-
-

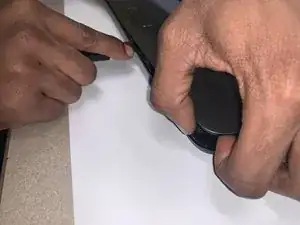

Using the Jimmy, create a separation between the keyboard and bottom panel.
-
Slide around the body of the panel until the separation is big enough for you to use .your fingers.
-

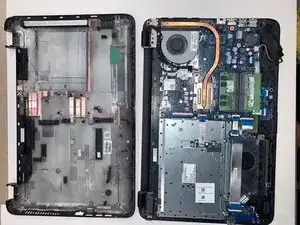

Separate the keyboard and bottom panel.
-
To reassemble your device, follow these instructions in reverse order.
