HP Pavilion 15-ay041wm LCD Screen Replacement

Geschrieben von: Rahmatullo Khudoi Nazar
  • Kommentare: 1
HP Pavilion 15-ay041wm LCD Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

10

Zeitaufwand

10 Minuten

Einleitung

The LCD screen on laptops is one of the most important components as that is how the user can see and interact with the machine.

The screen might need to be replaced if it no longer produces a clear picture. If your laptop screen is cracked, dim, or producing vertical or horizontal lines, then your laptop might need a new LCD screen.

This 10-step guide will show you how to and replace the LCD screen in your HP Pavilion laptop with a Phillips #00 screwdriver.

Make sure the laptop is powered down before beginning this guide.

  1. ZBivCteqBuYT4JDD
    ZBivCteqBuYT4JDD
    JPJU3OlcuZUkWShb

    • Place the laptop upside down.

  2. juqvfwqLxsh1ntOP
    juqvfwqLxsh1ntOP
    YyEpYSfS6P3DGb5h

    • Find the battery lock latch on the top left corner.

    • Slide the latch to the right position.

  3. mghjRvRXlDsRQCuk
    mghjRvRXlDsRQCuk
    MtNQtC4DXkXtve4a
    cK3LBmcP5JxbaTJd

    • Find the battery release latch on the top right corner.

    • Slide and hold the latch towards the left to cover the battery icon.

    • Carefully slide the battery outwards.

  4. JWHAwS6iUOkpnGGE

    • Place the laptop on a flat surface with the lid open.

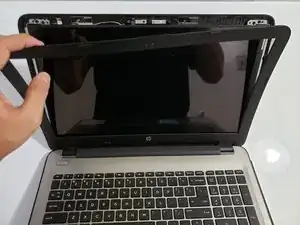

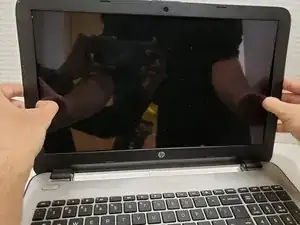

  5. lQxm42RAQdJTcfPw
    lQxm42RAQdJTcfPw
    HWqBaMWIUWxHNUKv

    • Gently pull away the bezel by the inner edge starting from the side until bezel is detached from screen.

    • To avoid scratching the screen, do not use any sharp objects.

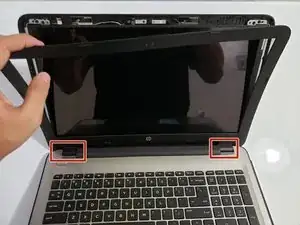

  6. YqPVCCxWdZRKPgNl
    YqPVCCxWdZRKPgNl
    JSft5LEWIiCAqHBR

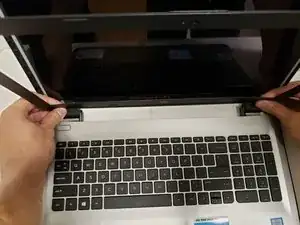

    • Unsnap the two hinges attached to the clam shell by pulling towards yourself and then up.

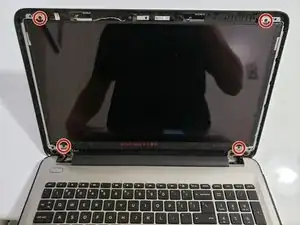

  7. rjjtdBOdCpTwFEnV

    • Remove the four 3mm screws that are holding the LCD panel in place.

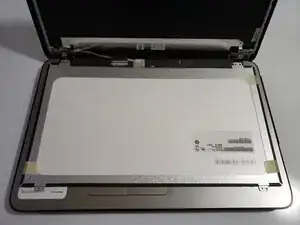

  8. fhJngjPoHqIEEDvJ

    • Gently pull the screen from the hooks and place it on the keyboard.

    • The video cable is attached to the bottom of the LCD screen.

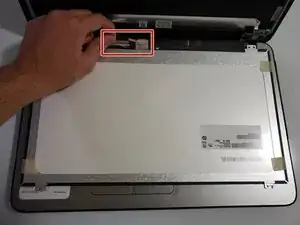

  9. FVE11gOGXhIwuENl

    • Peel the tape securing the video cable.

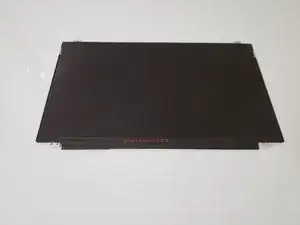

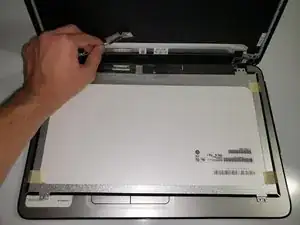

  10. dBHgaLgkhkSZ5mTj
    dBHgaLgkhkSZ5mTj
    KudNx5iVWcABIkgR

    • Gently disconnect the video cable to detach the LCD screen from the back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
