HP Pavilion 15-b109wm RAM Replacement

Geschrieben von: Stephen Gacioch
  • Kommentare: 0
HP Pavilion 15-b109wm RAM Replacement

Schwierigkeitsgrad

Difficult

Schritte

20

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This guide will show you how to replace your Memory Module in your HP Pavilion 15-b109wm. This process will take about 1 hour, and is very tedious. So take your time, complete each task carefully, and you'll have a successful replacement of your Memory Module.

  1. oURuLC2QtLgcflUc

    • Power off the device and disconnect from any power source.

  2. V65uivOITMEgaUfp

    • Turn the device upside down and ensure the back of the device is facing you.

  3. FpXufZAahGVBWKNJ
    FpXufZAahGVBWKNJ
    VIBvosyfEoUHf1iy
    nkaMii2C3ssDOfST

    • Push both buttons towards one another simultaneously. The battery slightly pops out.

  4. GUjJuwuNWMFYarQh
    GUjJuwuNWMFYarQh
    PJgZKqcWeUkYq3Ir
    QFwjGRBRwRcXZkWm

    • Pull out the battery from the device's battery slot.

  5. XOvaeYkVrSdaOIrg
    XOvaeYkVrSdaOIrg
    us36OD4Fd6WpMGuT

    • Use JIS #1 screwdriver to remove the eleven 6 mm screws.

  6. V2uPj3qu4RnpL6sR

    • Locate the two screw holes that allow access to removing the keyboard.

    • There is a keyboard sign beside both keyboard access holes.

  7. AgPuO4KZCOuZL2Sd

    • Turn the device onto its side.

    • Using a heavy duty spudger, gently disengage the keyboard.

  8. nLngJqbga4BAt12U
    nLngJqbga4BAt12U
    6JVSksVTyy63DuZD

    • Using a plastic opening tool, release the keyboard clips.

  9. YrjALpCwDxEUM5Rb

    • Tilt the keyboard to expose the Zero Insertion Force connector to which the keyboard cable is attached.

  10. bR64UdKULSZCKLaq
    bR64UdKULSZCKLaq
    2f3OuTayTkJoQy11
    MZauH1yiFI2WRJBf

    • Disconnect the keyboard cable from the motherboard by detaching the Zero Insertion Force connector.

    • To detach the connector, release by lifting the black plastic tab up.

  11. vhMBmCU1XKpEUfLs
    vhMBmCU1XKpEUfLs
    AEgBpgrbsAiMtxpS
    EXMCMhVNsgKJlKUN

    • Using a JIS #1 screwdriver, remove the five 5mm screws.

    • Detach the power button cable.

    • Detach the touch pad cable.

  12. 4NOUYMCLecFirVWU
    4NOUYMCLecFirVWU
    aRjxSHLqNFXZnF21
    YyRKmJUipZYxrOKw

    • Using a plastic opening tool, pry open the top cover.

    • Unscrew the two 5 mm screws using a JIS #1 screwdriver.

    • Gently, pull to detach the fan cable.

    • Be careful so you do not damage the motherboard.

  13. SGH1cQb3YmkYBVyP

    • Carefully remove the fan from its slot.

  14. bDoGZmHIXv5CAEPL
    bDoGZmHIXv5CAEPL
    OO3wXyo6N3qZZGxt
    eQMJIjx4uGDYSPrs

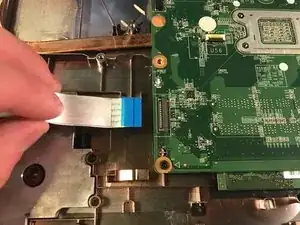

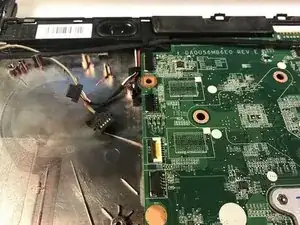

    • Disconnect the cables to the motherboard.

  15. EAu1PPoDGueoFLT1
    EAu1PPoDGueoFLT1
    IeGQWMZlGkafdZCJ

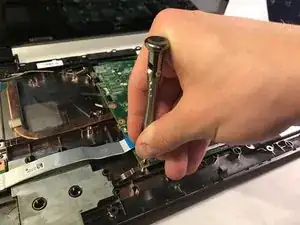

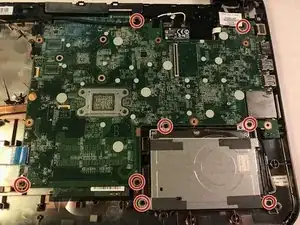

    • Remove the eight 5 mm screws with the JIS #1 screwdriver.

  16. CgNP5OQuOFNZEbuL
    CgNP5OQuOFNZEbuL
    6T1s4uevfSkBRcJF

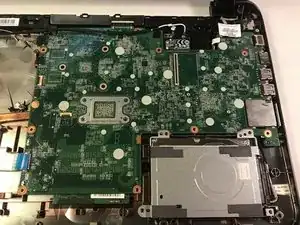

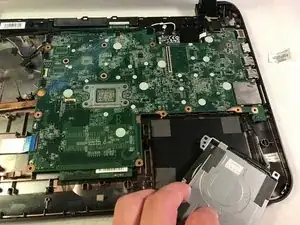

    • Remove the hard drive.

  17. NlJteDiXmaJKyMLH

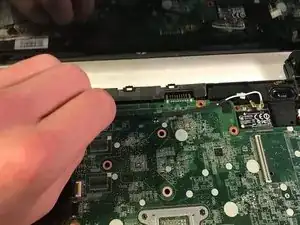

    • Unclip the WLAN cable out of its place to allow the motherboard room to move.

  18. K31I1cGXkfBroEbl

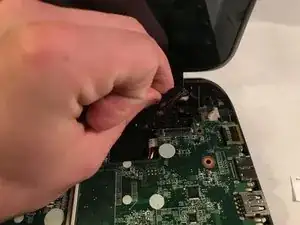

    • Detach the power connector cable.

  19. KQVPpCYVX2cVOIRe
    KQVPpCYVX2cVOIRe
    GBDnDR6XEy6MYmfB

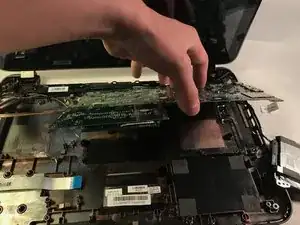

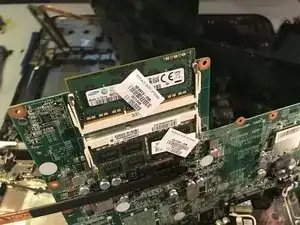

    • Lift up the motherboard from the bottom side of the device.

  20. mElqb2jO6A4GLLeH
    mElqb2jO6A4GLLeH
    lvRyiYMNKywFIOTs
    ZfFAUkO4DqLFPJhq

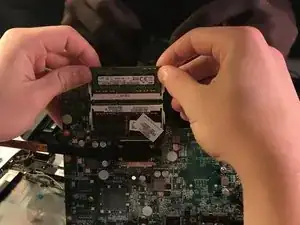

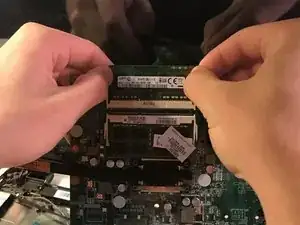

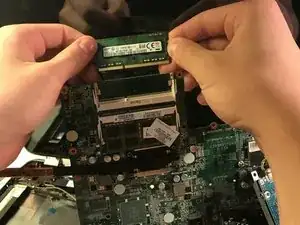

    • Using your thumbs, push out on the bracket.

    • When the memory module feels loose, pull up on the module.

Abschluss

To reassemble your device, follow these instructions in reverse order.
