HP Pavilion 15-ca2073cl Motherboard Replacement

Geschrieben von: Clarence Droze
  • Kommentare: 3
HP Pavilion 15-ca2073cl Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

The HP Pavilion 15-ca2073cl motherboard is a common replacement needed for this laptop. The following guide consists of a step by step process to replace the component with moderate difficulty. Be sure to have all tools needed to complete the replacement without damaging the rest of the components.

  1. p2vEHeVF1SxfCQxx

    • Before beginning, make sure the laptop is completely turned off by pressing the off button and waiting for the screen to turn black.

    • Flip the laptop over.

    • Remove all the 6.5mm screws (black) and the 4.8mm long screws (silver) using the Phillips #00 screwdriver.

  2. Je2TbOLLBcLe5TyS
    Je2TbOLLBcLe5TyS
    KEGsrkOqUT1HNmpE

    • Use an iFixit opening tool to wedge in between the case and the body of the laptop.

    • Start from the front and work down both sides, disconnecting clips.

    • Remove the bottom case from the body.

    If the cover is stuck, work the opposite side completly loose and the opposite side from the back. Then use you fingers to pry loose the stuck part from both sides of the stuck part.

    Chuck McCracken -

  3. WxfrUkqoWEuYy4Hg
    WxfrUkqoWEuYy4Hg
    CRyaWsCAuBkSiJGS

    • Remove six 4.8mm screws (silver) using the Phillips #00 screwdriver.

    The center screw of the side with 3 screws is not attached to the battery and should be left in place.

    Chuck McCracken -

    The mounting screws online are different than those in my computer. Look for those attached to the black plastic tabs sticking out at the edges of the battery. Not all of them contain screws. If a screw is on one of the metal connections exclusively and not on the black plastic of the battery, it is not a screw that you touch. It's one that holds down metal shields or structural elements of the laptop. Two of the screws shown in the picture are either not part of the battery or were different in mine. For example, if you look carefully in the picture of the battery connections with the circles around them in this article, the center of the three on the far right narrow side is actually not connected to the battery at all. Look carefully.

    Chuck McCracken -

  4. uxtwvx1kQCVvAFC5
    uxtwvx1kQCVvAFC5
    usNWYOiBquNDckHL

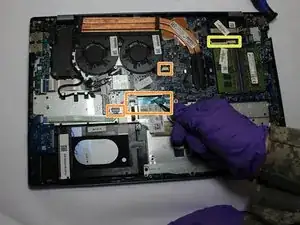

    • Remove the screws surrounding the motherboard using the Phillips #00 screwdriver.

    • Dismount the power supply ribbon cable by lifting the cable lock and pulling the cable with the flat-tipped tweezers.

    • Gently remove and disconnect the two display ribbon cables located at the top right corner of the moother board.

    • Disconnect the keyboard cable next to the power supply cable.

    • Disconnect the disc and hard drive cables.

  5. 6hFbkBCKBDoFW2yX

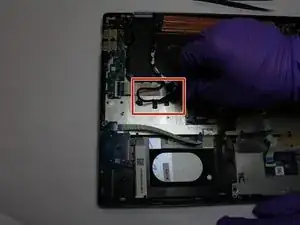

    • Using the flat-tipped tweezers, remove the cable wrapping around the left fan connecting to the mother board.

  6. HPHlMrIWXYBxjgvi

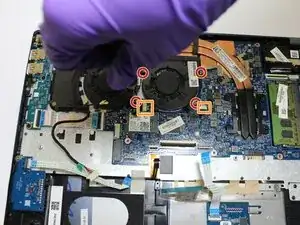

    • Remove the three Phillips #00 screws surrounding the fans.

    • Remove the cables connecting the fans to the motherboard.

    • Gently lift the fans out of place.

  7. YIIC1DDISPCbGRyX
    YIIC1DDISPCbGRyX
    dgQPruZqgFxquhmR

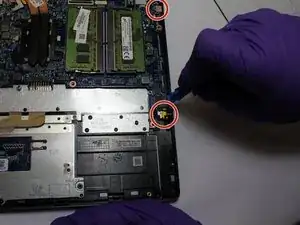

    • Using the spudger, begin to pry all ports connected to the motherboard away from the shell of the laptop.

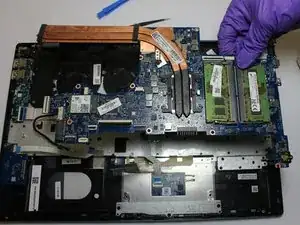

    • Using the spudger, gently pry the motherboard up and out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
