HP Pavilion 15-ca2073cl SD Card Reader Replacement

Geschrieben von: Hunter Hamilton
  • Kommentare: 3
HP Pavilion 15-ca2073cl SD Card Reader Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

For this guide, we will be breaking down the steps to find, remove, and replace the SD card reader component in the HP Pavilion 15-ca2073cl. Please make sure to pay close attention to the steps and details covered in this guide.

  1. p2vEHeVF1SxfCQxx

    • Before beginning, make sure the laptop is completely turned off by pressing the off button and waiting for the screen to turn black.

    • Flip the laptop over.

    • Remove all the 6.5mm screws (black) and the 4.8mm long screws (silver) using the Phillips #00 screwdriver.

  2. Je2TbOLLBcLe5TyS
    Je2TbOLLBcLe5TyS
    KEGsrkOqUT1HNmpE

    • Use an iFixit opening tool to wedge in between the case and the body of the laptop.

    • Start from the front and work down both sides, disconnecting clips.

    • Remove the bottom case from the body.

    If the cover is stuck, work the opposite side completly loose and the opposite side from the back. Then use you fingers to pry loose the stuck part from both sides of the stuck part.

    Chuck McCracken -

  3. WxfrUkqoWEuYy4Hg
    WxfrUkqoWEuYy4Hg
    CRyaWsCAuBkSiJGS

    • Remove six 4.8mm screws (silver) using the Phillips #00 screwdriver.

    The center screw of the side with 3 screws is not attached to the battery and should be left in place.

    Chuck McCracken -

    The mounting screws online are different than those in my computer. Look for those attached to the black plastic tabs sticking out at the edges of the battery. Not all of them contain screws. If a screw is on one of the metal connections exclusively and not on the black plastic of the battery, it is not a screw that you touch. It's one that holds down metal shields or structural elements of the laptop. Two of the screws shown in the picture are either not part of the battery or were different in mine. For example, if you look carefully in the picture of the battery connections with the circles around them in this article, the center of the three on the far right narrow side is actually not connected to the battery at all. Look carefully.

    Chuck McCracken -

  4. MpxEZ3oU1JLYyLOS
    MpxEZ3oU1JLYyLOS
    dEWRxvoGtBSmJocc
    aedwb3A6mYhQKqTr

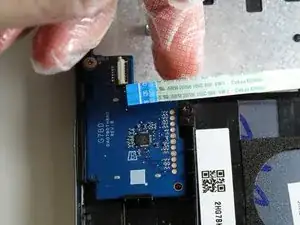

    • Use a spudger to flip up the retaining flap securing the ribbon cable

    • Remove the white ribbon cable from its connector.

  5. MGKjLO43TfTsopsa

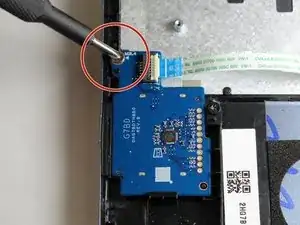

    • Remove the single silver 4.3 mm screw with a Phillips #0 screwdriver.

  6. 6WtUZqAjIyheyUDu

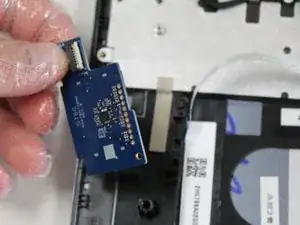

    • Remove the SD card reader from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
