HP Pavilion 15-cd040wm Screen Replacement

Geschrieben von: Zachary Simao
  • Kommentare: 1
HP Pavilion 15-cd040wm Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

If your screen fails to light up or is physically damaged, you most likely have a faulty screen that requires replacement.

To access the screen, you will first need to open your HP Pavilion 15-cd040wm by disassembling its back cover.

Before beginning, make sure to power off your laptop completely and disconnect it from any external power source. Once the back cover is off, be sure to disconnect the battery from the motherboard to ensure there is no power going to the laptop while it is being worked on.

  1. VAhW6HnTKhOI3dc6
    VAhW6HnTKhOI3dc6
    4MFLrEHSKhEZpiqa

    • The first step is to remove the four rubber non-slip pads on the bottom of the laptop to expose screws hidden underneath them. Peel off each tab with your fingers.

    • If you have trouble gripping a tab, use a spudger to wedge it loose.

  2. PJoVV2Fh4J3vEIGi
    PJoVV2Fh4J3vEIGi
    6QvXk66PsUR1cmND

    • 3x 10mm Phillips scews

    • 2x 5mm Phillips screws

    • 6x 6mm Phillips screws

    • Remove all screws using a size Phillips #0 screwdriver.

  3. 36qS25UaT5sWyKOY
    36qS25UaT5sWyKOY
    FFdrHmlNEBOATV4t
    QPUw2cUiSqhvAmBH

    • Using the iFixit opening tool, carefully pry along the sides of the back cover.

    • After all of the edges of the back cover have been freed, use your opening tool to carefully unclip the tabs holding the back cover to the CD drive.

    • After everything is unclipped, you can safely remove the back cover from the rest of the device.

    You did not describe how to remove the CD drive. It suddenly disappeared between step 2 and step 3.

    Stan -

  4. aOOlqlcUWXdPO15l
    aOOlqlcUWXdPO15l
    3WOMCHoQAx4IdYFj

    • 2x 5mm Philips screws

    • 2x 3mm Philips screws

    • Remove all screws using a size Phillips #0 screwdriver.

  5. BPggqn3OgJpJAfiY
    BPggqn3OgJpJAfiY
    Vk3pUhQFvF5ORfZK

    • Gently pull up on the battery and tilt it away from the rest of the laptop chassis.

    • Pull out the battery at an angle and lift it out of the laptop.

  6. XxBlBFTLnNTJSBmW
    XxBlBFTLnNTJSBmW
    BjEuysGBxpDOwAGK
    Rfa4SwMbqXAsXZd6

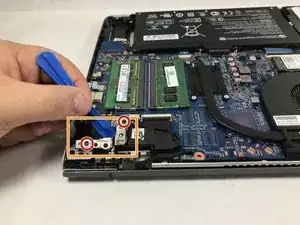

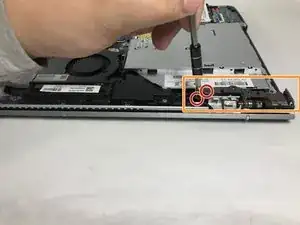

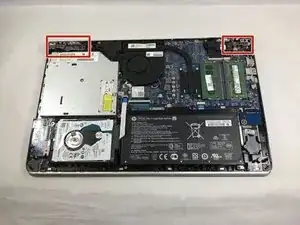

    • Remove the four 6.0 mm screws from the hinges using a size Phillips #0 screwdriver.

    • Use the iFixit opening tool to lift both of the hinges.

  7. HKAx5ejpAEKdCqJP
    HKAx5ejpAEKdCqJP
    5nPdlMROM2FyWl1q
    DZVTIkyWI23h411J

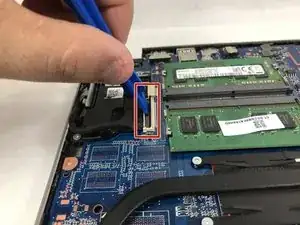

    • Using the spudger or opening tool, remove the ribbon that connects to the screen.

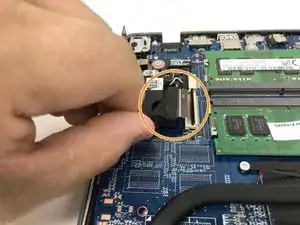

    • Gently pull the ribbon out of the port after using the spudger to lift the supporter up.

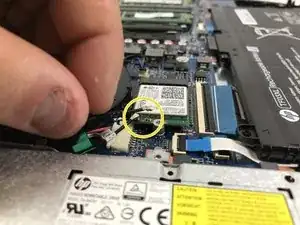

    • Carefully remove the two antenna wires that connect to the screen as well. Do this by gently pulling them free from their connectors at the wifi card.

  8. GTRNFhcmbxoi1ltD

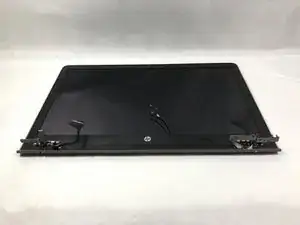

    • Once these steps are completed, you may lift the display assembly free from the rest of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
