HP Pavilion 15-e043cl Hard Drive Replacement

Geschrieben von: Cace Letendre
  • Kommentare: 0
HP Pavilion 15-e043cl Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

3 Minuten

Einleitung

This guide will teach you how to replace the hard drive on an HP Pavilion 15-e043cl.

The hard drive is responsible for storing information on your laptop and is very important to the operation of the computer. You may want to expand your laptop's storage capacity beyond the stock hard drive, or your hard drive may be corrupt.

Whether your hard drive is broken, or you simply wish to upgrade, you can follow this guide to do so.

  1. vP6wcxNJxDP4PtQE
    vP6wcxNJxDP4PtQE
    rcJGQOypXNJRhwsx

    • Flip the device over.

    • Slide the battery switch on the right half of the laptop.

    • Make sure the device is powered off, and that it is not connected to any power sources.

  2. BoamFlNMHTUQB5ox
    BoamFlNMHTUQB5ox
    D45G6dVWOtZVQ6rm

    • Lift the battery up and out of the device by the inward-facing edge.

  3. DCBlE24mcVFn2NB1
    DCBlE24mcVFn2NB1
    IecUt3gtjtuOX4GO
    6QkrVULMSBoJjbJh

    • Unscrew the single Phillips #0 captive screw that was previously hidden by the battery.

    • The screw can not, and should not, be fully removed.

    • Slide the maintenance panel away from the battery compartment to release it.

  4. eCaokjVqsSXwK2oN
    eCaokjVqsSXwK2oN
    p2yWtLh4RTVBxJ5q

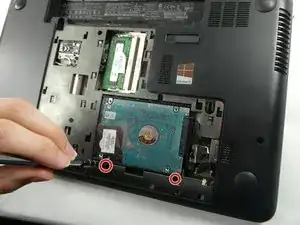

    • Unscrew the two black Phillips #0 screws securing the hard drive.

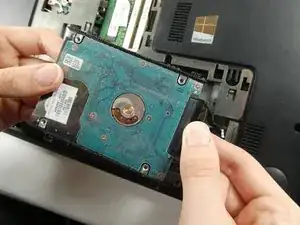

    • Lift the hard drive a few centimeters out of the laptop, with care not to damage the cable.

    • Unplug the hard drive from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
