If your HP Pavilion 15-e043cl isn't able to connect to Wi-Fi, and it is able to be powered on and is functionally normal otherwise, then the laptop may have a faulty Wi-Fi card.

Check to make sure that the laptop is not detecting any Wi-Fi networks whatsoever in the Wi-Fi network settings area. If networks are showing up, then the router itself is most likely the issue and not the laptop. Otherwise, this guide will show how to replace the Wi-Fi card.

The Wi-Fi card locates Wi-Fi networks for your device to connect, and it will connect you to the internet depending on what network you choose and connect to. A faulty card will not be able to locate networks even within the vicinity of local networks.

Before beginning, make sure to power off the device completely, and disconnect and charge adapters and other power sources.

  1. vP6wcxNJxDP4PtQE
    vP6wcxNJxDP4PtQE
    rcJGQOypXNJRhwsx
    • Flip the device over.

    • Slide the battery switch on the right half of the laptop.

    • Make sure the device is powered off, and that it is not connected to any power sources.

  2. BoamFlNMHTUQB5ox
    BoamFlNMHTUQB5ox
    D45G6dVWOtZVQ6rm
    • Lift the battery up and out of the device by the inward-facing edge.

  3. DCBlE24mcVFn2NB1
    DCBlE24mcVFn2NB1
    IecUt3gtjtuOX4GO
    6QkrVULMSBoJjbJh
    • Unscrew the single Phillips #0 captive screw that was previously hidden by the battery.

    • The screw can not, and should not, be fully removed.

    • Slide the maintenance panel away from the battery compartment to release it.

  4. 22QIvmBfFICsrGnd

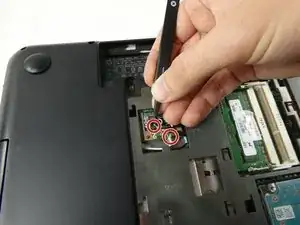

    • Use tweezers to remove the white and black mini jumper cable attached to the Wi-Fi card.

  5. iJTRcSbMFCUqjXEw
    iJTRcSbMFCUqjXEw
    bis3c1elTLW4bwbM

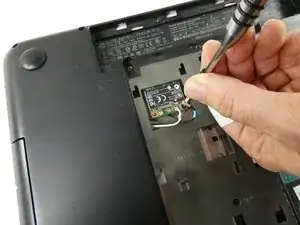

    • Remove the single 2.5 mm screw with a Phillips #0 screwdriver from the Wi-Fi card.

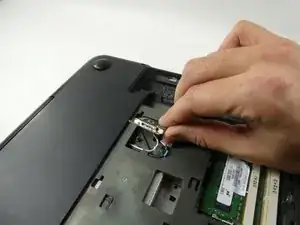

    • Lift the Wi-Fi card out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
