HP Pavilion 15-n232nr Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

This guide will enable users to repair the keyboard on the HP Pavilion 15-n232nr Laptop. The necessary tools required are the metal spudger and a screwdriver. This process is moderately difficult for the iFixit user.

  1. mOTOwHPwcDcHSbse
    mOTOwHPwcDcHSbse
    npI321uk6YjgJ5ZZ

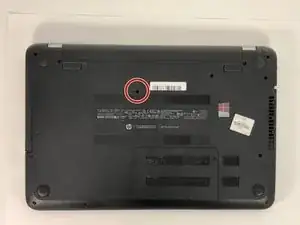

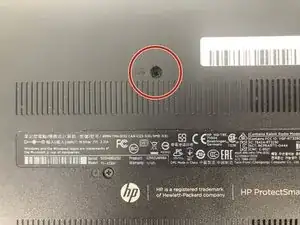

    • Unscrew the 6 mm Phillips #1 screw securing the keyboard.

  2. cXLboynLThtKiZcS
    cXLboynLThtKiZcS
    LNhfLiMAFXuC2Etf

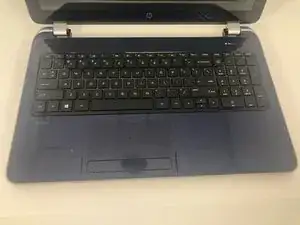

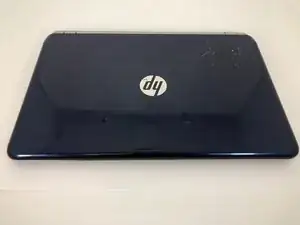

    • Flip the laptop to the front side and open it up.

  3. GUhWhWDTVk5GUJFB
    GUhWhWDTVk5GUJFB
    Yhq1GMGMJwjjAwkV

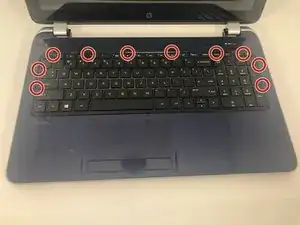

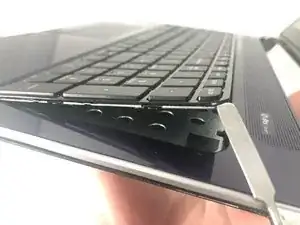

    • Use the metal spudger to release the keyboard from the front panel.

  4. GpueKR4frDqvEXyD
    GpueKR4frDqvEXyD
    gqAgpMu1XboOhbDw
    n2SZ5xNI2sabrlXo

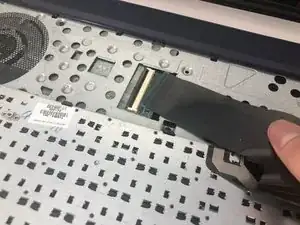

    • Flip the keyboard out and locate the connector.

    • Use the spudger to unhinge the the fastener and remove the connector.

    • Keyboard should be completely detached after this step.

Abschluss

To reassemble your device, follow these instructions in reverse order.
