Einleitung
If your screen no longer works on your HP Pavilion 15-p046nr, you’ve come to the right place. This guide will walk you through how to replace your notebook’s screen. You may need to replace your screen if it has been damaged in some way (water, crushed, white spots, cracking). Further signs you may need to change your display is if your display refuses to turn on for no apparent reason. You will need a magnetic project mat, Phillips 00 screwdriver, and plastic opening tool for this replacement. Be sure to to completely disconnect power from your device before working on your notebook.
-
-

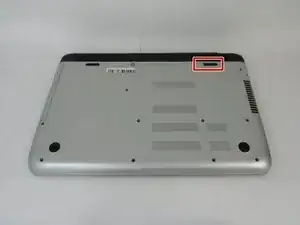

Flip the laptop over so the bottom is facing up.
-

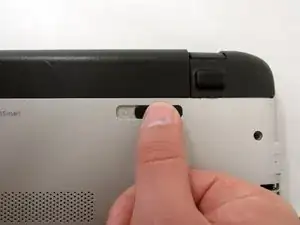

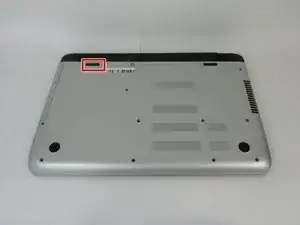

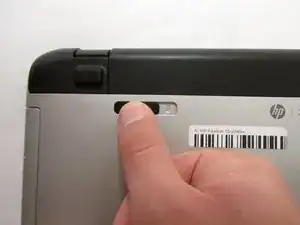

Place your finger on the top left-hand slide button with the lock symbol.
-
Slide the button to the right so that an unlocked symbol is visible.
-
-
-
Place your finger or thumb on the top right-hand slide with the battery symbol visible.
-
Slide the button to the left.
-

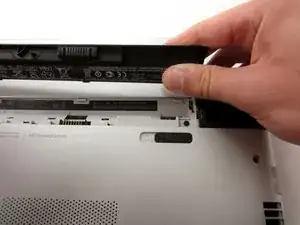

Lift the battery off the computer with your thumb.
-
-
-

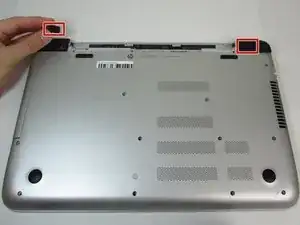

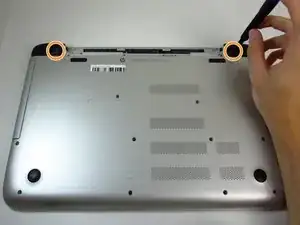

Remove screw covers from the hinge covers on the upper left and right side.
-
Unscrew one 7 mm screw from each hinge cover using the Phillips #00 screwdriver.
-

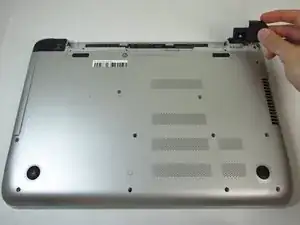

Remove hinge covers by pulling up and out on the top of the cover.
-
-
-

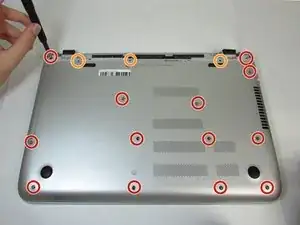

Remove thirteen 7 mm screws from the back panel using the Phillips #00 screwdriver.
-
Remove three 5 mm screws from the back panel using the Phillips #00 screwdriver.
-

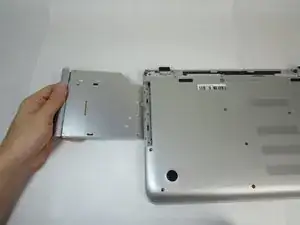

Grab the disk drive on the left side and pull the disk drive out completely.
-
Flip the laptop over and open the display.
-
-
-

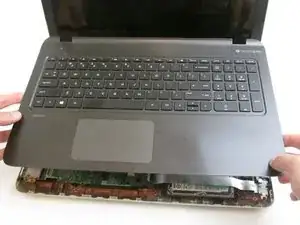

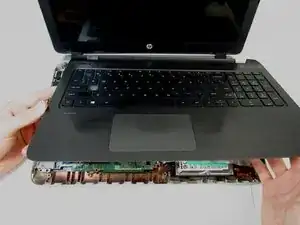

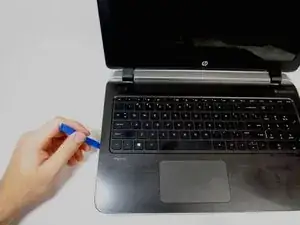

Run the plastic opening tool along the entire edge of the keyboard to separate the keyboard from the base of the laptop.
-

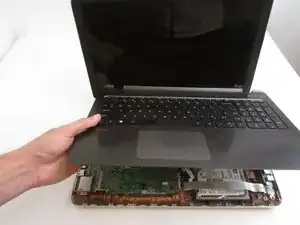

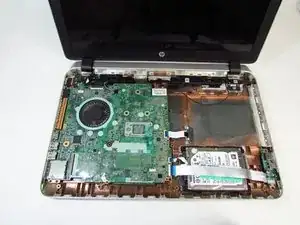

Gently lift the keyboard tray up.
-
-
-

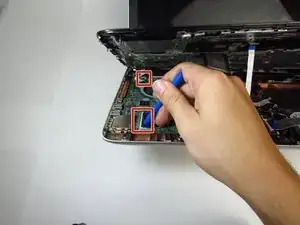

Use the tip of the blue plastic opening tool to gently flip-up the grey locking flap of the two ribbon cables connecting the keyboard to the device.
-
Grab the ribbon cable and gently pull away from the socket.
-
-
-

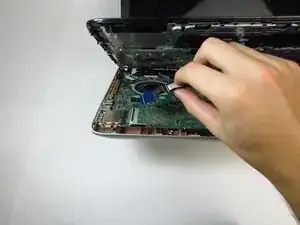

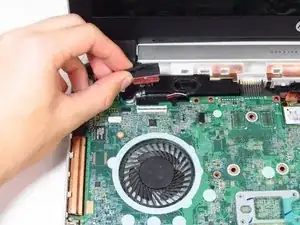

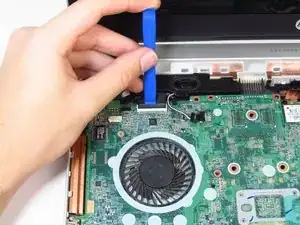

Use the tip of the blue plastic opening tool to gently flip-up the black locking flap of the cable connecting the motherboard to the display.
-
Grab the cable and gently pull away from the socket.
-
-
-

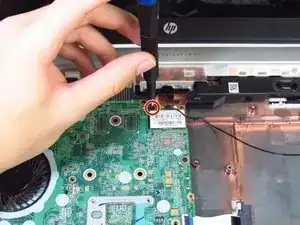

Unscrew one captive screw on the wireless card using the Phillips #00 screwdriver. The wireless card will angle upwards when the screw is removed.
-

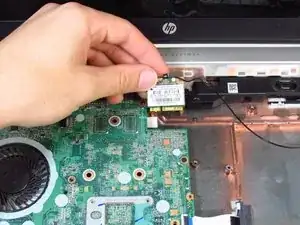

Gently pull the sound chip away from the motherboard at the same angle at which it rests.
-
-
-

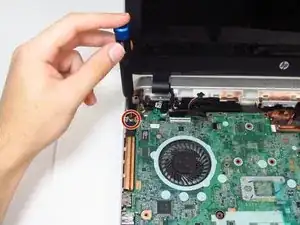

In the upper left corner of the motherboard, unscrew one captive screw from the charger port cover using the Phillips #00 screwdriver.
-
Remove the charger port cover from the device.
-
-
-

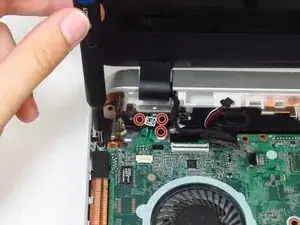

Remove all of the screws from the black hinge mounts on either side of the device using a Phillips #00 screwdriver.
-
-
-

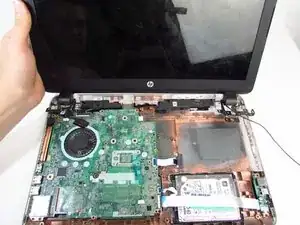

Carefully separate the top of the laptop and its hinges from the bottom half by pulling forward and up.
-

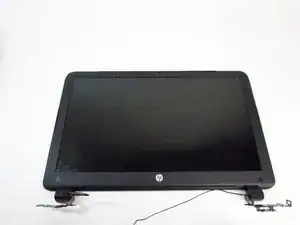

Remove the display from the device.
-
-
-

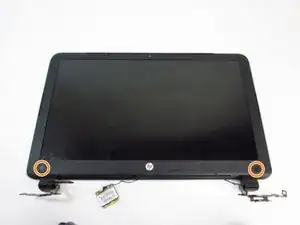

Use the blue plastic opening tool to remove the two small screw covers on the bottom corners of the display.
-
Remove the two 4 mm screws under each cover using the Phillips #00 screwdriver.
-
-
-

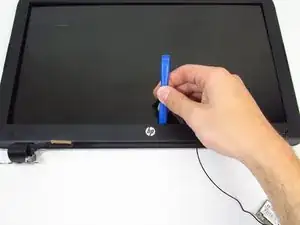

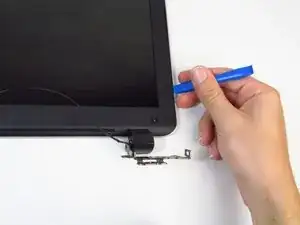

Use the tip of the blue plastic opening tool to separate the outer edge of the screen from the laptop.
-

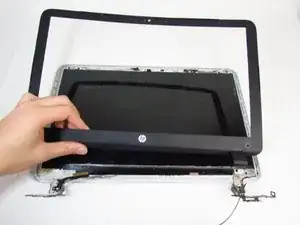

Remove the display screen cover from the device.
-
-
-

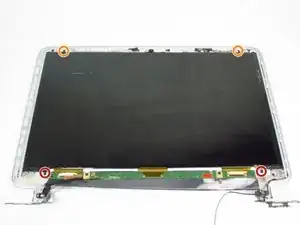

Remove the two 2 mm screws from around the display using the Phillips #00 screwdriver.
-
Remove two 1.5 mm screws from around the display using the Phillips #00 screwdriver.
-

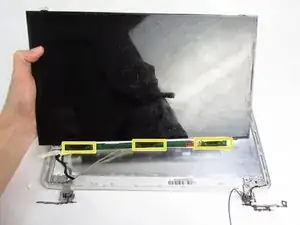

Carefully peel off the tape at the bottom of the screen to separate the green chip from the screen.
-

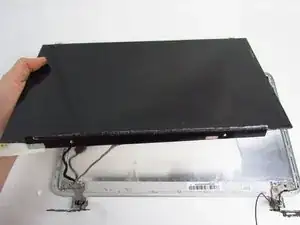

Remove the screen from the display.
-
-
-

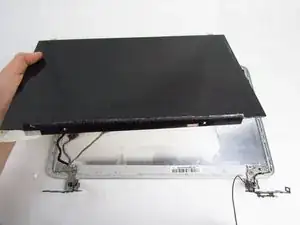

Flip the screen over so that the screen is face down.
-

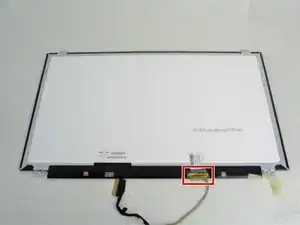

Remove white video chip from screen by peeling off the tape and gently pulling on the white cable.
-
Remove the screen.
-
To reassemble your device, follow these instructions in reverse order.
