Einleitung

Incase of any damages that may occur to the shell of the computer, you can always replace the back panel. Be sure to use cation when unscrewing and re-screwing the back panel back in. You don’t want to apply too much force on incorrect angles to avoid stripping the screws. Other than that you should be on your way to replacing the back panel!

  1. snSLOQyFmuaJNAXA
    • Flip the laptop over so that the underside is facing you.

  2. e4YTkex3MdZTViKp
    e4YTkex3MdZTViKp
    AVQkLYGW4cZvUZjH
    UkpuMQ61JXffNjuh

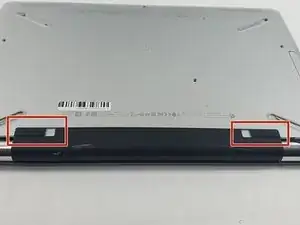

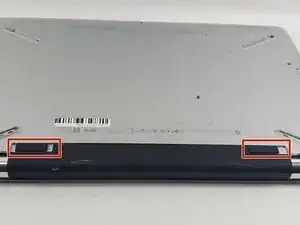

    • Using your hands, push the two tabs inwards to release the battery.

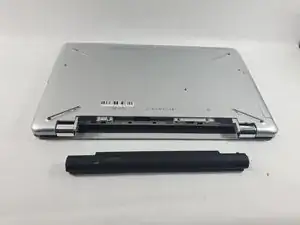

    • Remove the battery from the device.

  3. RBYHVeMEiSpiXvtT
    RBYHVeMEiSpiXvtT
    AHqgrLWFXklsMVEZ

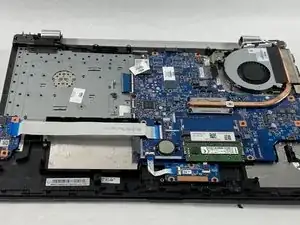

    • Remove eleven screws from the back panel.

    • Remove the back panel from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
