Einleitung

Overall there very little new cautions and hazards added to this guide. When looking at issues that may be caused by faulty or damaged speaker, is lack of sound or damaged wires. Accessing the speakers can only be accomplished after the prerequisites are met which are listed later on.

  1. snSLOQyFmuaJNAXA
    • Flip the laptop over so that the underside is facing you.

  2. e4YTkex3MdZTViKp
    e4YTkex3MdZTViKp
    AVQkLYGW4cZvUZjH
    UkpuMQ61JXffNjuh
    • Using your hands, push the two tabs inwards to release the battery.

    • Remove the battery from the device.

  3. RBYHVeMEiSpiXvtT
    RBYHVeMEiSpiXvtT
    AHqgrLWFXklsMVEZ
    • Remove eleven screws from the back panel.

    • Remove the back panel from the device.

  4. xrdKIV5GMHMimZRA
    xrdKIV5GMHMimZRA
    YZcDrnyRaoAHBIbM
    jSDhUdbLT6mKUQBn

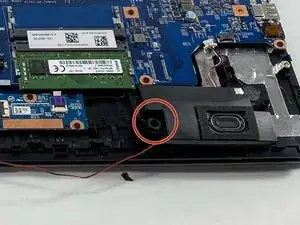

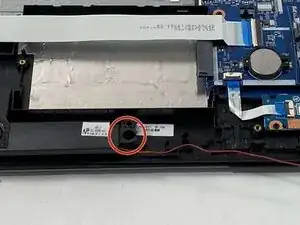

    • Using the Phillips #0 screwdriver, remove the two screws (one on each speaker) securing the speakers to the motherboard.

  5. ZCRADYSEy3RAZiHd
    ZCRADYSEy3RAZiHd
    RkwbTc1nCfCtx4fM

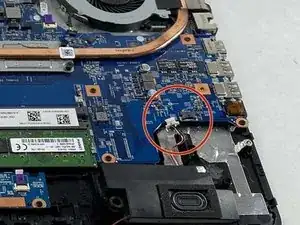

    • Gently unplug the speaker connector from the motherboard.

  6. HrdJ4NHMDYKLJ6aA
    HrdJ4NHMDYKLJ6aA
    RdtKEAJSuZlQZknV

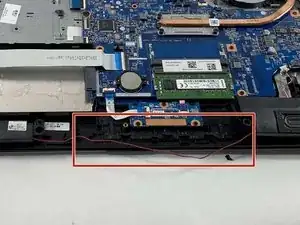

    • Carefully untangle the red wires tucked in between the black plastic tabs.

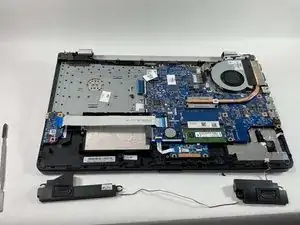

    • Remove the speakers from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
