Einleitung

You may need to replace your laptop’s hard drive when your laptop has a bad virus/corrupted files. However, it would be better to test other solutions first because you will lose all the files saved to your computer, unless you back them up to the cloud or an external drive.

Before you begin this procedure, make sure the laptop is powered off and there is nothing plugged into the computer. Also, your hands will need to be clean and dry.

  1. orWLYrPBG4doy3SZ
    • Turn the laptop upside down, so that the bottom is facing up.

  2. XXYwW2mwcLbRelqx
    XXYwW2mwcLbRelqx
    YmjoS1dUVPEKygxR
    • Slide the battery release latch to the left. The battery will pop up slightly.

    • Lift the battery upwards and out of the laptop.

  3. MVlWjjREu6mDS1fU
    MVlWjjREu6mDS1fU
    1FCGLJLfxXTYxATm
    • Using a Phillips #00 screwdriver, remove the single Phillips 3.0 x 10.5 mm screw that fastens the service panel to the laptop.

  4. EiCijuT6u2Zwwdvf
    • Slide the service panel towards you to loosen it from the laptop.

  5. oqiggKkVTjAbdgUY
    • Remove the service panel.

  6. EvKEjioUTXTawBBJ
    EvKEjioUTXTawBBJ
    kWCWpxQMTmnaWBOZ
    nVo1ABIOFlKGrT3X

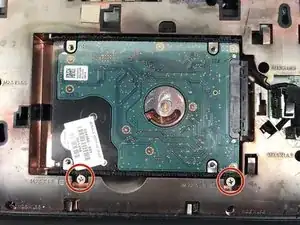

    • Remove the two Phillips 2.5 x 5.75 mm screws that hold the hard drive down to the computer.

    • Use the Phillips #00 screwdriver.

  7. 1Bq5e23fRD54CoIV
    1Bq5e23fRD54CoIV
    sCKiEidqt2nRLZWK
    MOKEk5BDT4pG4EbC

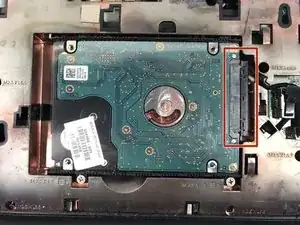

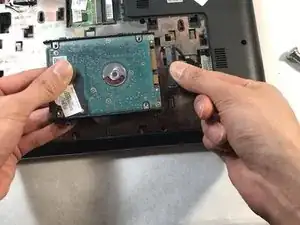

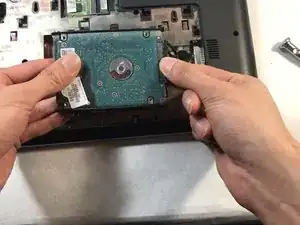

    • Disconnect the hard drive connector cable from the computer's system board.

  8. VSJmAUZjLXrOVsYA
    VSJmAUZjLXrOVsYA
    XI33ZGKBQNWSPDPn

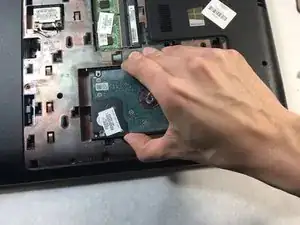

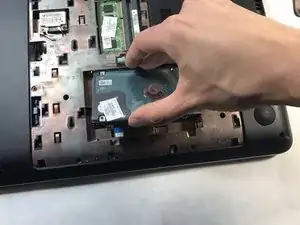

    • Lift the hard drive out of the hard drive bay by lifting up from the tab.

    • Remove the hard drive from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
