HP Pavilion 17-e146us Charger Port Replacement

Geschrieben von: Emma Neumann
  • Kommentare: 1
HP Pavilion 17-e146us Charger Port Replacement

Schwierigkeitsgrad

Difficult

Schritte

14

Zeitaufwand

35 Minuten

Einleitung

The charger port is the portion of the laptop that connects the power source to the battery of the laptop to charge it. Typically, this part of the laptop is used frequently and can wear to through is extensive usage. If this port does not work, the battery will not charge, and therefore the device will not turn on or hold power. This guide will show how to remove and replace a charger port with a new functional charger port. For more information on the effects a faulty battery port can cause please check out our troubleshooting page. Please make sure the device is turned off and unplugged prior to starting.

  1. 2tvCQHgweJqpugxX

    • Turn the device over.

  2. Fp3cd1JaJJTTDKZ5
    Fp3cd1JaJJTTDKZ5
    W3YZj3LBHAy3GbYZ

    • Move the battery lock switch to the right to unlock. The battery release button will unlock the battery from the computer.

    • The battery release button is located above the the battery.

  3. LMecZbi44NFNwYMi

    • The battery will unlock from the computer.

    • Remove the unlocked battery from the computer.

  4. IBMYaxFObsVU3urs
    IBMYaxFObsVU3urs
    sUZbNaJJlNHiebAB
    sVBObXydptrIwNbh

    • Remove the 6.25 mm screw in the left-lower hand corner of the battery port using a Phillips head screw driver.

  5. OGotch6UFZmDZu1I

    • Remove the HP protect smart ventilation case.

    • The smart ventilation is a part of the back cover of the device

  6. gxj1paSmtI5HRQUb

    • Remove seven 6.5 mm screws using a Phillips #0 screwdriver.

    • Remove four 3.0 mm screws located in the charger port using a Phillips #0 screwdriver.

    There’s not any screw in the top-right corner under the back cover. Is it somewhere else?

    John Seaton -

  7. aHYBMl4qK6AnwmjU
    aHYBMl4qK6AnwmjU
    d2oPNiUM2kTkqdfH

    • Pull and remove the disk drive.

    • The disk drive is located on the left side of the device when it is turned over.

    • Remove two 3.00 mm screws on the inside of the disk drive using a Phillips screwdriver.

  8. P4x3QAIrKjCQGwHV

    • Apply firm pressure inside the release port using a narrow tool such as a screw driver or tweezers.

    • The release port releases the keyboard.

  9. iot51GTFCfLjDm16

    • Flip device over so that the cover is facing towards you

  10. yEph4FhtcTK53viX
    yEph4FhtcTK53viX
    TgHUH6cKpRjrvCvw
    HxkRwAqdSHldtyuC

    • Open device. The keyboard should be separate from the inside panel.

    • If the keyboard does not automatically pop out, use a spudger or opening tool along the edge of the front panel and the keyboard to pop the keyboard out.

    • Detach the keyboard's cable connector from the motherboard.

  11. hm6MRQZK6XmgsbMh

    • Remove three 6.5 mm Phillips screws located underneath the keyboard using a Phillips #0 screwdriver.

  12. m6MfoRFxcVnWRxNf

    • Place wedge tool in-between the front panel and the cover underneath the keyboard

    • Use wedge tool to pop the two covers apart.

    • This may require some force.

  13. FSUJFRTIHMFBDod2
    FSUJFRTIHMFBDod2
    rlIStYLTP2adpAjG

    • Remove the motherboard using your hands

    • The motherboard is large green portion located inside the device

  14. MsjAey2tSEptYnrt
    MsjAey2tSEptYnrt
    tuNaUv2oZmMK1BbB

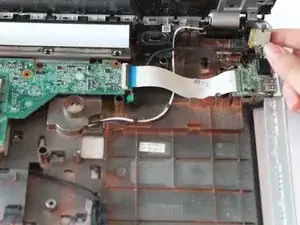

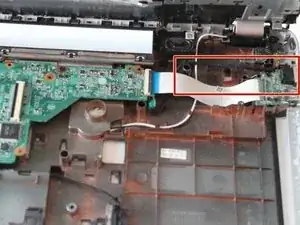

    • The charging port is attached to the motherboard and is on the right side of the device if it is facing you.

    • Remove the charging port from motherboard by hand.

    • Be careful not to break the motherboard during removal

Abschluss

To reassemble your device, follow these instructions in reverse order.
